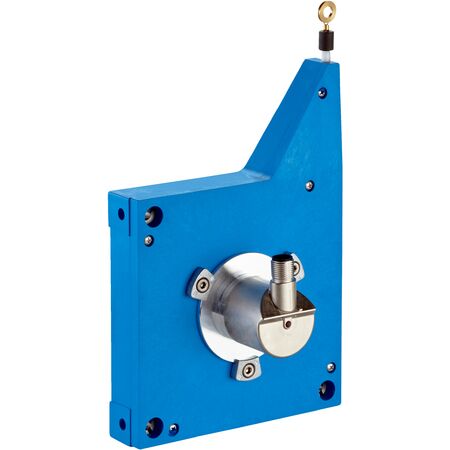

Absolute Encoder Wire Draw Sensor | 0.02 mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high measurement accuracy of 0.02 mm and a robust design with stainless steel measuring wire. With an operating temperature range of -30 °C to +70 °C and an impressive lifespan of 1,000,000 cycles, this sensor is perfect for safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SAE J1939
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin, universal
- Measuring wire material: Highly flexible stranded stainless steel 1,4401 V4A
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- MTTFD: 270 years (EN ISO 13849-1)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Operating temperature range: -30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.92 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High measurement accuracy with 0.02 mm resolution
- Robust design with plastic Noryl housing and stainless steel measuring wire
- Programmable and configurable for versatile use
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-J1QM0564 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
