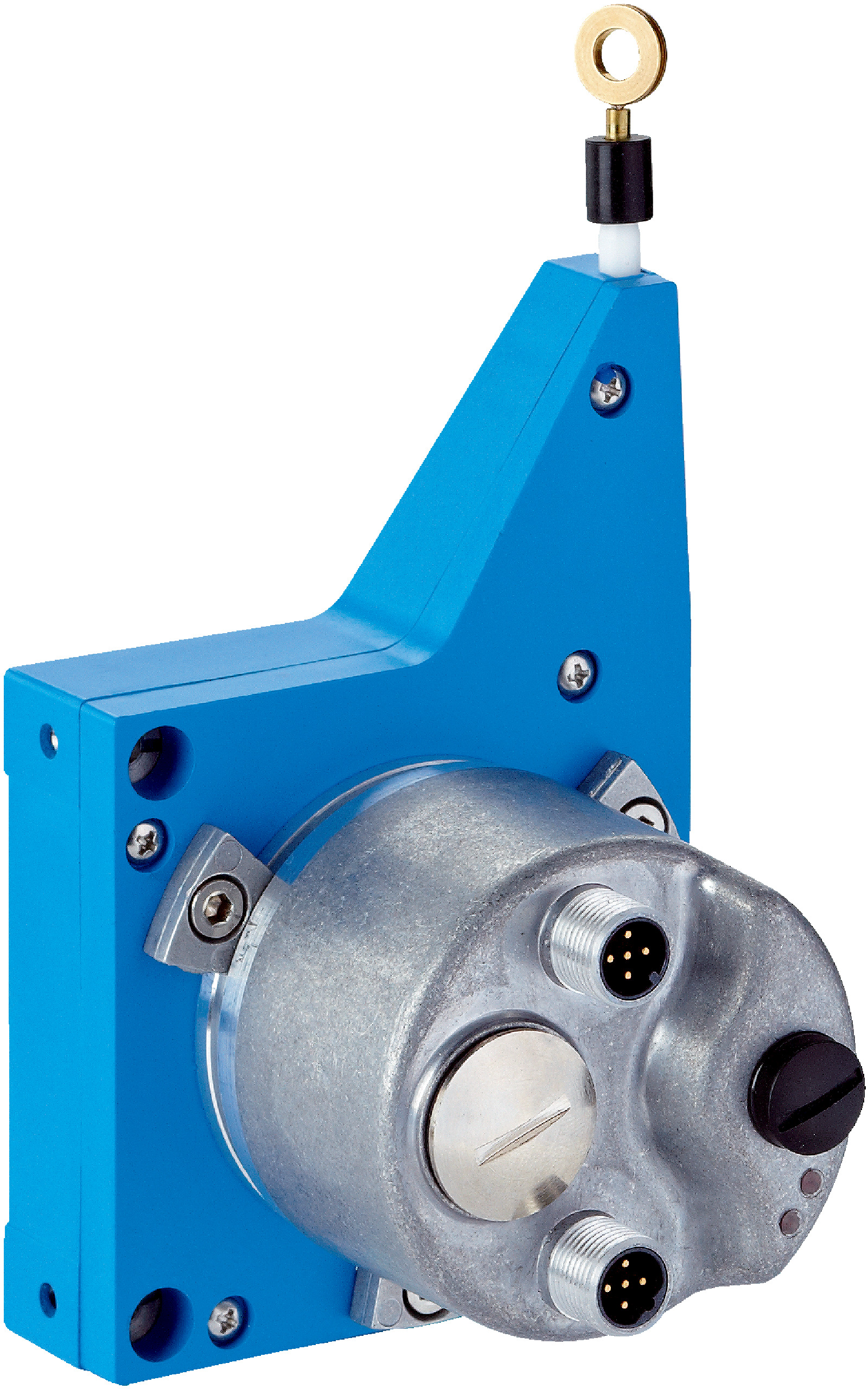

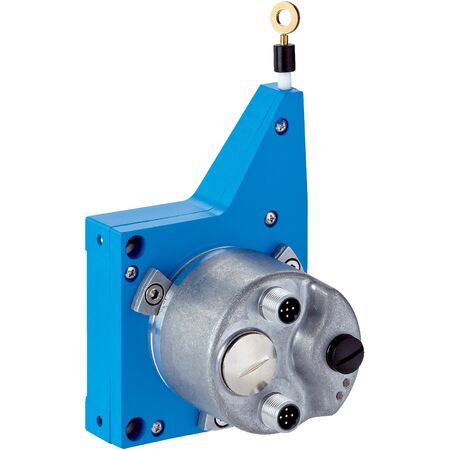

Absolute Encoder Wire Draw Sensor | 0.03 mm Resolution | 3 m Measurement Range | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.03 mm and a measurement range of up to 3 meters. With robust construction and an IP67 rating, it ensures reliable performance in safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder Wire Draw Sensor | 0.03 mm Resolution | 3 m Measurement Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1052618
Alternatively Known As: Wire Draw Encoder, Absolute Encoder Sensor, Position Sensor, PROFIBUS Encoder
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Operating temperature range: -10 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 main unit, IP67 mounted mechanic
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.53 kg
Key Features
- Absolute encoder with high resolution of 0.03 mm
- Measurement range up to 3 meters
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP interface
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 3.3 N and 4.4 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from -10 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating IP50 for main unit, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP communication and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-P1BM0336 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
