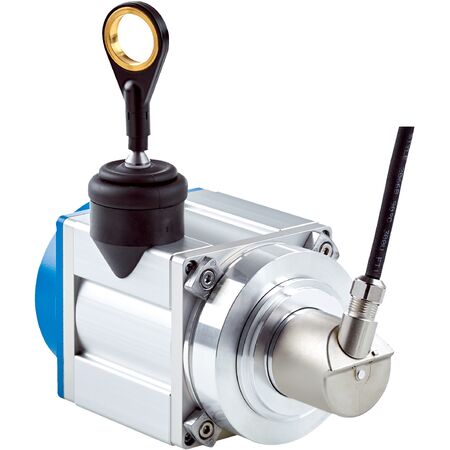

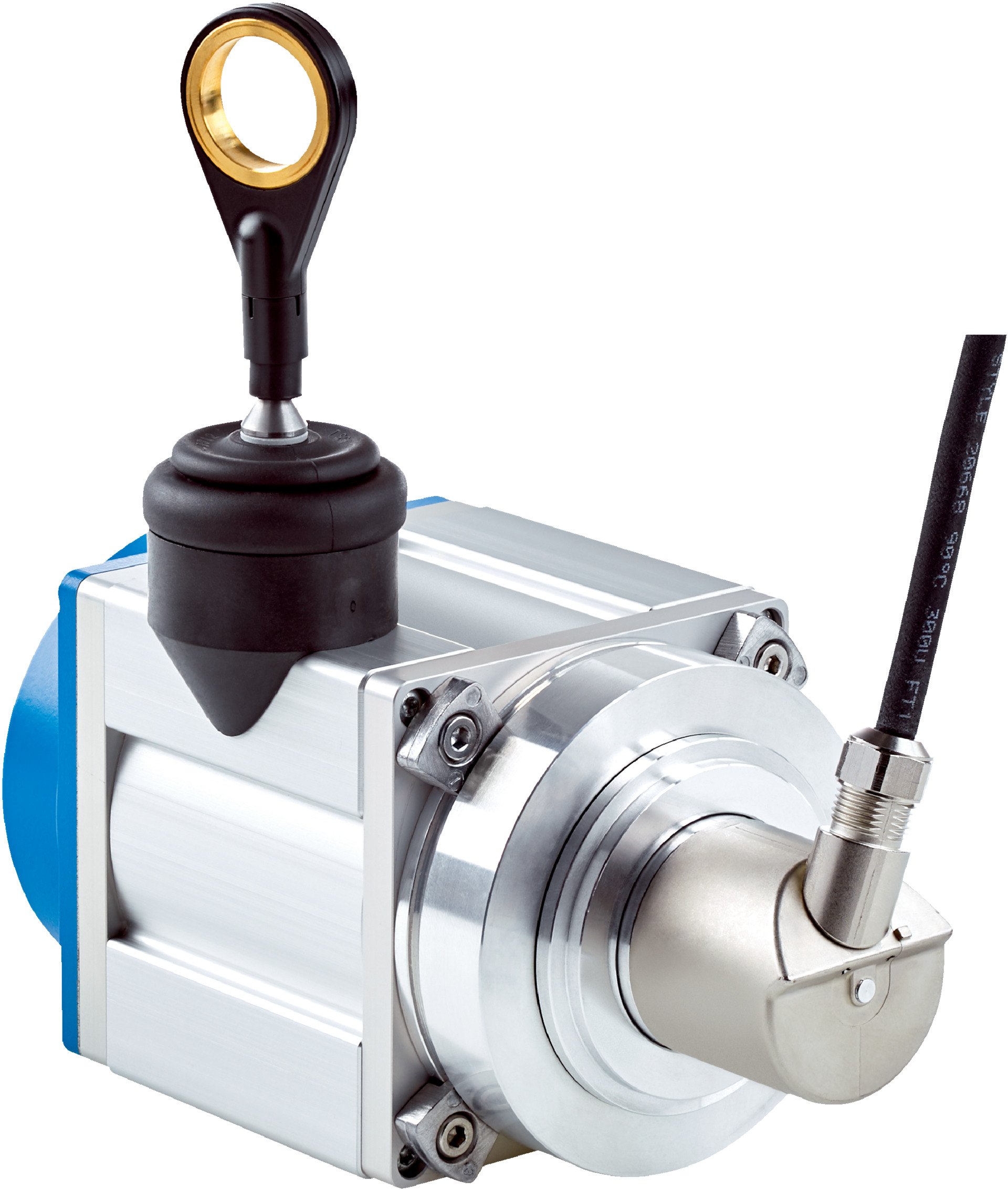

Absolute Encoder Wire Draw Sensor | 0.04 mm Resolution | IP64 to IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.04 mm and robust aluminum housing. With an operating temperature range of -30 °C to +70 °C and an impressive life of 1,000,000 cycles, this sensor is perfect for safety monitoring and control in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.62 kg
Key Features
- Absolute encoder with SSI communication interface
- High resolution of 0.04 mm with repeatability ≤ 1 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Measuring wire made of highly flexible 1.4401 stainless steel
- Long wire draw length of 3.2 m with spring return force between 6 N and 14 N
- Operating temperature range from -30 °C to +70 °C
- IP64 to IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W without load
- Programmable and configurable for versatile use
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement and control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK BTF08-A1MM0341 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
