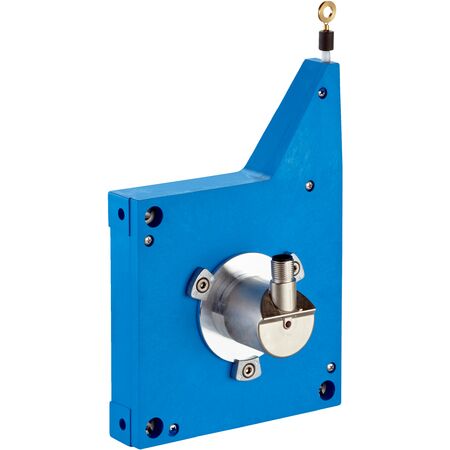

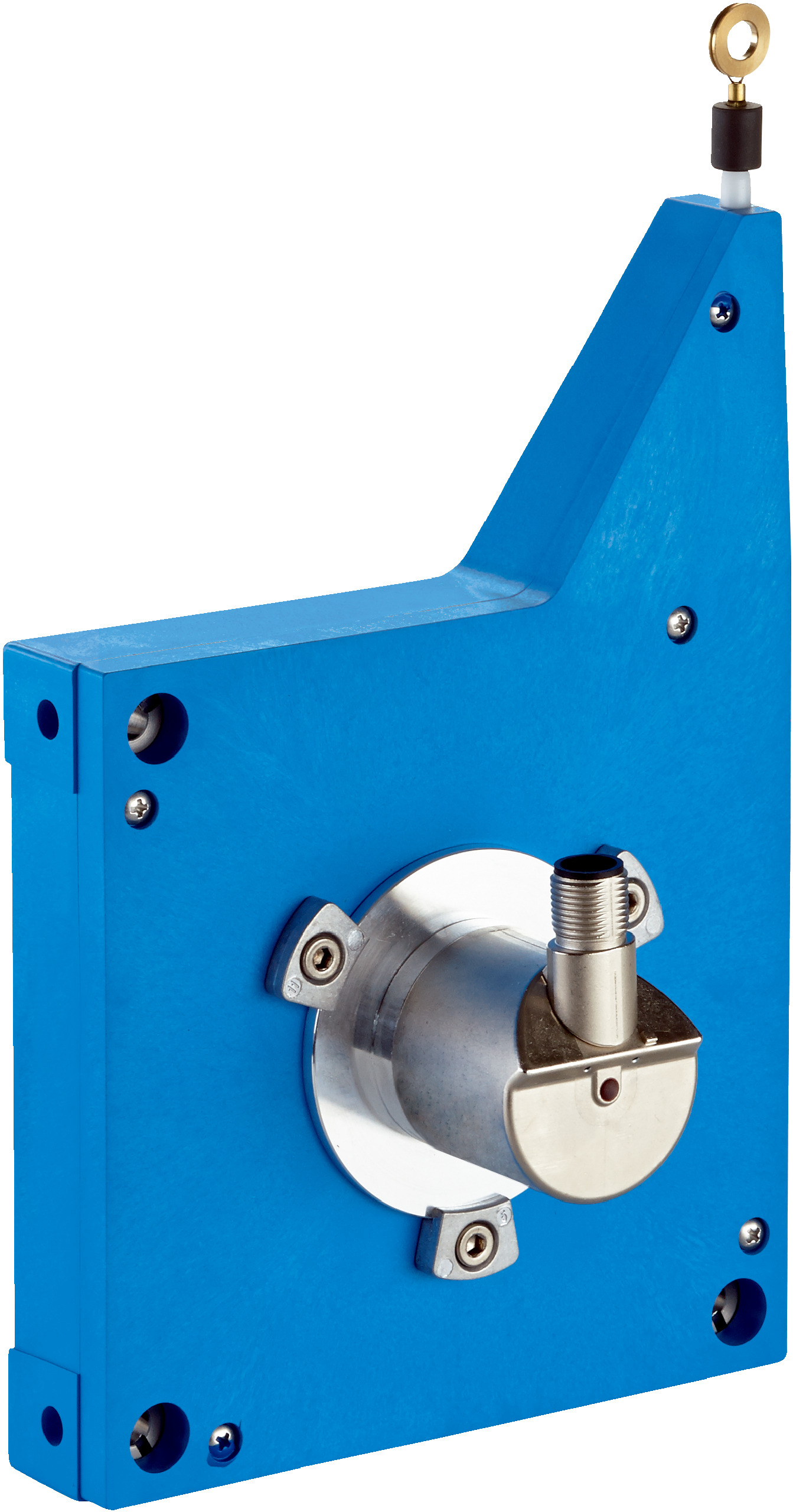

Absolute Encoder Wire Draw Sensor | 0.05 mm Resolution | 5 m Measurement Range | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.05 mm and a measurement range of 0 to 5 m. Built with a robust stainless steel wire and an IP67 enclosure rating, it ensures reliability in demanding environments, making it ideal for safety monitoring and high-accuracy manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.05 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.92 kg
Key Features
- Absolute encoder with SSI communication interface
- High resolution of 0.05 mm with repeatability ≤ 0.2 mm
- Robust measuring wire made of highly flexible stainless steel
- Long measuring wire length of 5.2 m with 1,000,000 cycle life
- Wide operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Programmable and configurable for versatile applications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement in manufacturing processes requiring high accuracy
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK BCG13-A1NM0521 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
