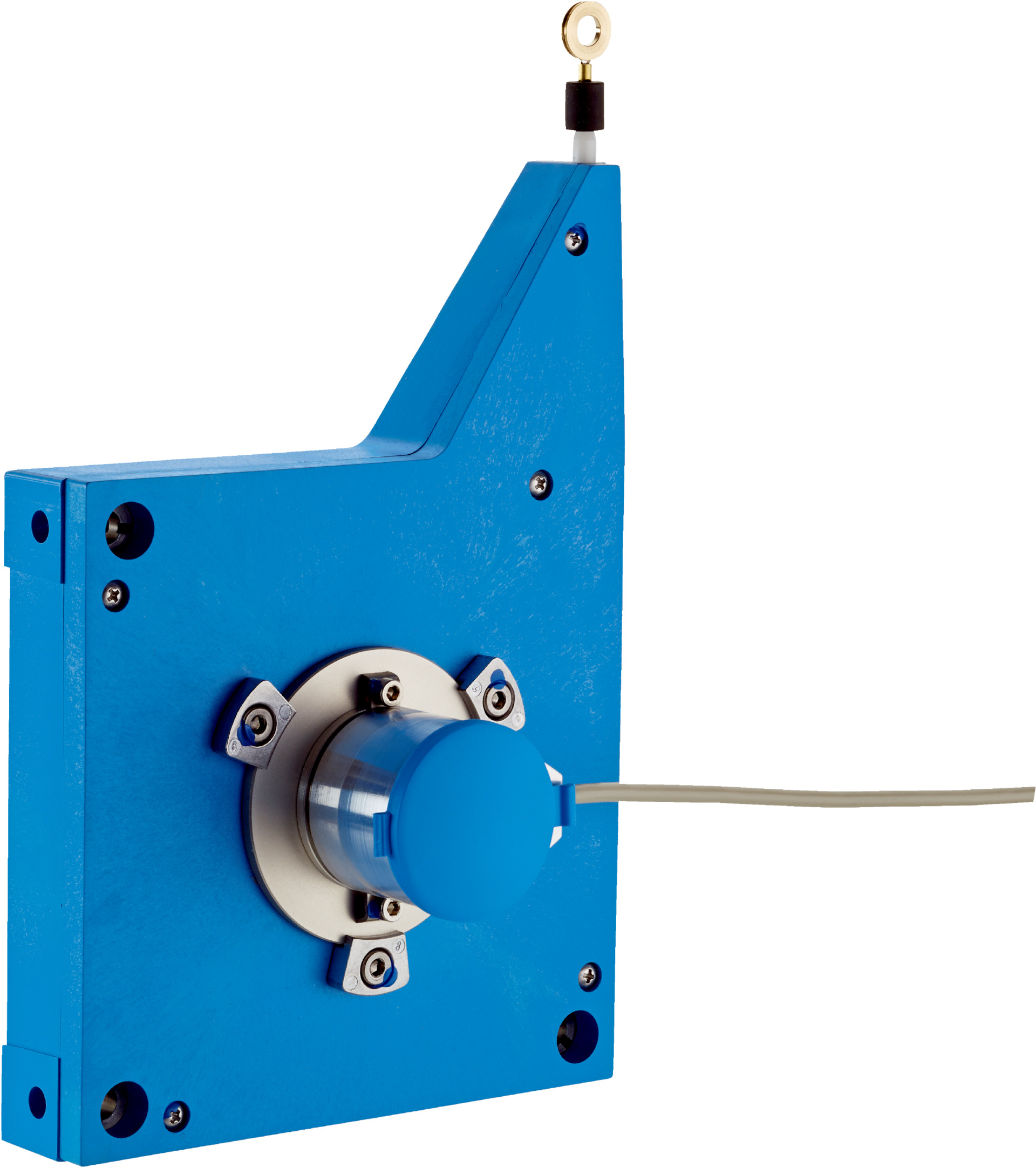

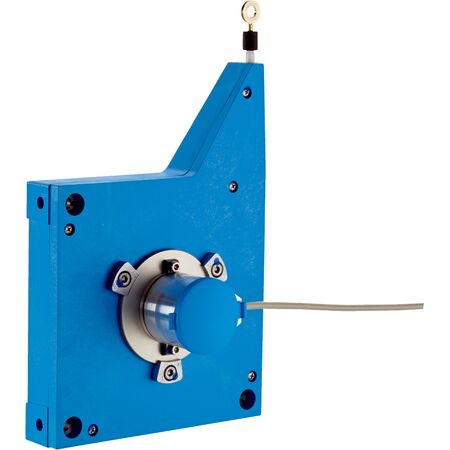

Absolute Encoder Wire Draw Sensor | 0.1 mm Resolution | 5 m Measurement Range | IP50 Enclosure | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.1 mm and a measurement range of up to 5 meters. With robust construction and an operating temperature range from –30 °C to +70 °C, this sensor ensures reliable feedback for safety-related applications and control systems in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.1 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Voltage / 0...10 V
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 (V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder model: ACM36, ACM36-L1K0-K01
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP65)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.2 kg
Key Features
- Absolute encoder with high resolution of 0.1 mm
- Measurement range up to 5 meters
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Robust plastic Noryl housing for wire draw mechanism
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating, IP65 for mounted mechanic
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
