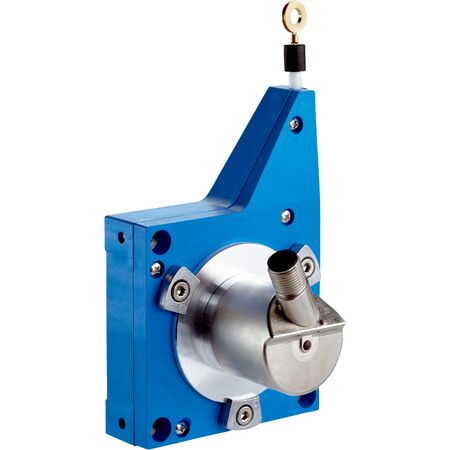

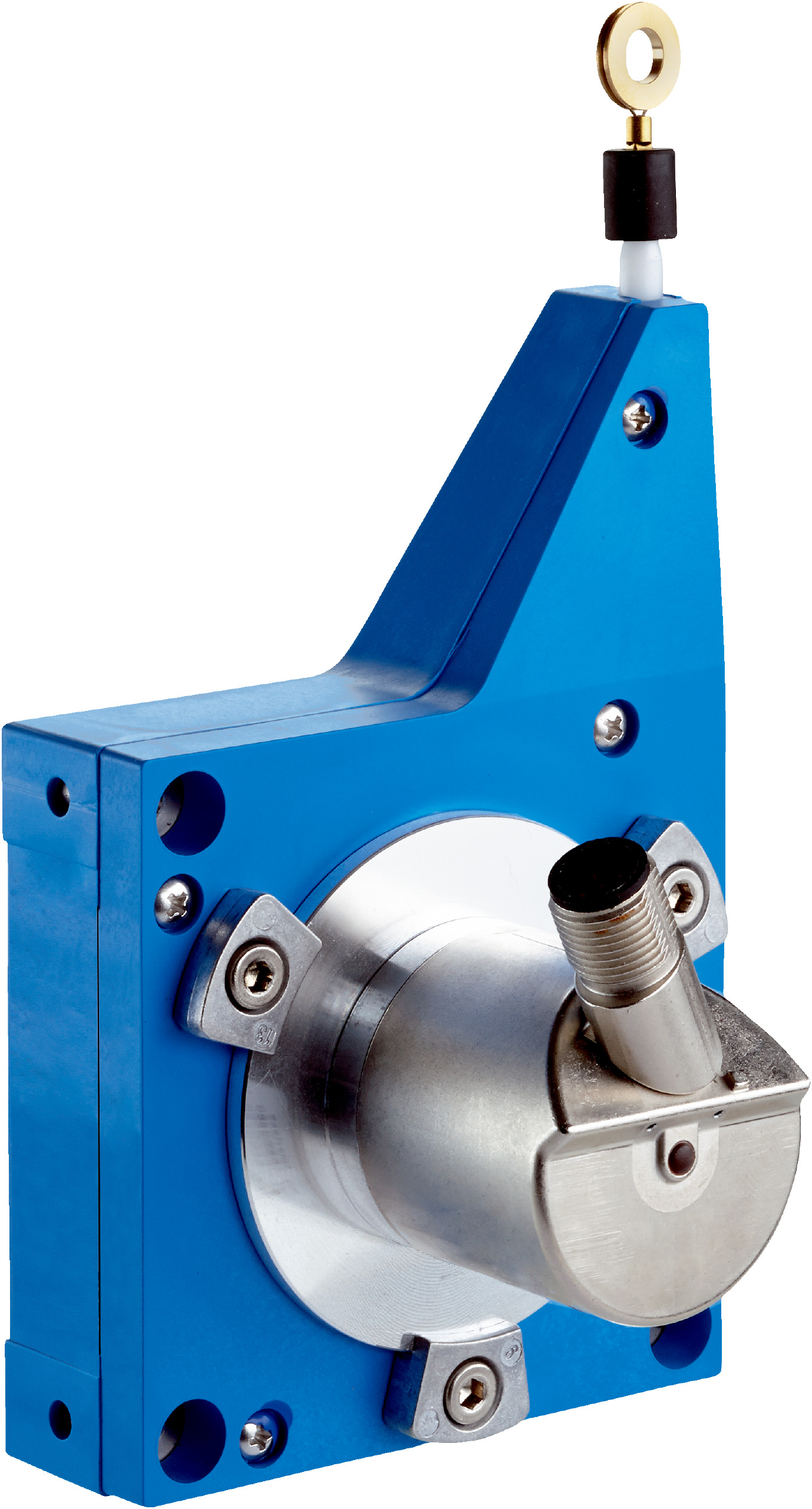

Absolute Encoder Wire Draw Sensor | 0.01 mm Resolution | IP67 Rated | 3 m Measurement Range | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high resolution of 0.01 mm and a robust measuring wire made of highly flexible stainless steel. With an impressive measurement range of up to 3 meters and an IP67 enclosure rating, this sensor is perfect for safety-related applications and machine monitoring, ensuring reliable feedback in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.01 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 (V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.37 kg
Key Features
- Absolute encoder with CANopen communication interface
- High resolution of 0.01 mm with repeatability ≤ 0.2 mm
- Robust measuring wire made of highly flexible stainless steel
- Long measuring range up to 3 meters
- Spring return force between 3.3 N and 4.4 N
- IP50 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Operating temperature range from -30 °C to +70 °C
- Programmable and configurable for versatile use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and CANopen communication protocols to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-C1QM0371 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
