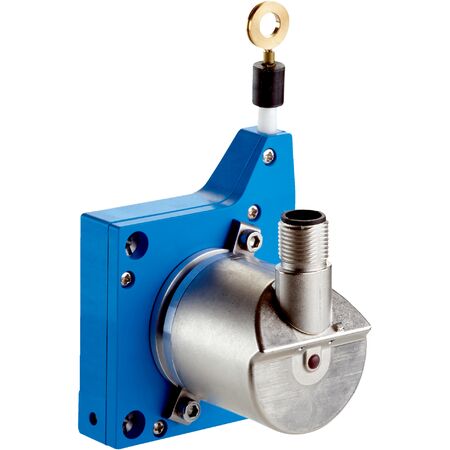

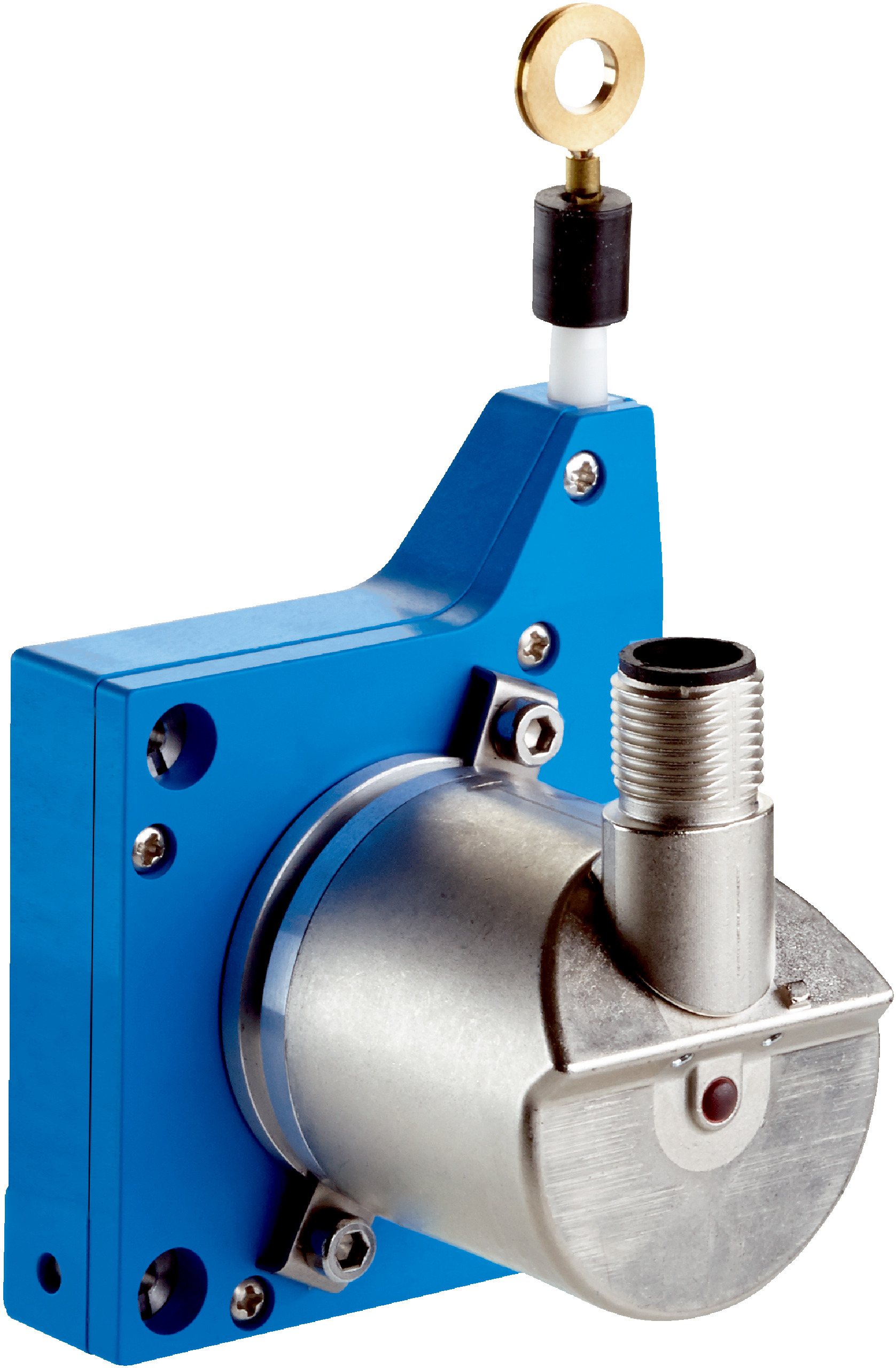

Absolute Encoder Wire Draw Sensor | 0.01 mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high measurement resolution of 0.01 mm and robust construction with stainless steel wire. With an IP67 rating, it's perfect for harsh environments and safety-related monitoring, ensuring reliable performance and long life with approximately 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A) with PA 12 sheath
- Spring return force: 1 N to 1.4 N
- Wire draw length: 1.45 m
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement resolution of 0.01 mm
- Robust construction with plastic Noryl housing and stainless steel wire
- Programmable and configurable for flexible integration
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- High protection rating: IP50 for device, IP66 for mounted mechanic, IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial sensor integration to ensure safety and proper operation.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG05-C1QM0199 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
