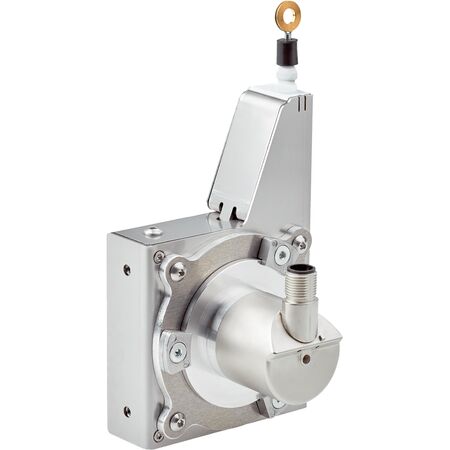

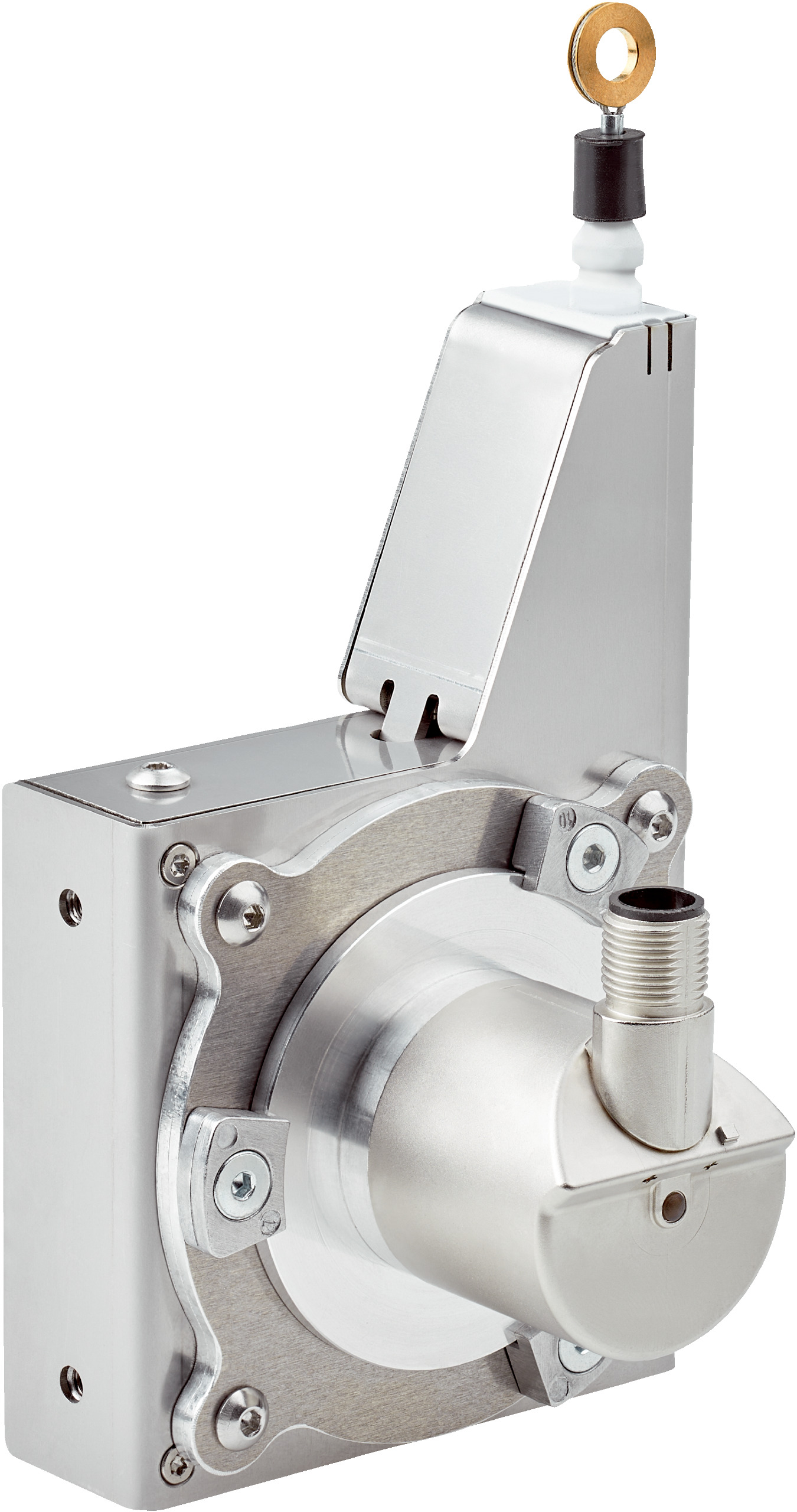

Absolute Encoder Wire Draw Sensor | 0.01 mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high measurement accuracy of 0.01 mm and a robust stainless steel wire draw mechanism. With an IP67 rating for dust and water protection, this sensor is ideal for safety-related applications and machine monitoring, ensuring reliable feedback in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: AHM36 CANopen
- Enclosure rating: IP60 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: -30°C to +70°C
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.72 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement accuracy with 0.01 mm resolution
- Robust stainless steel wire draw mechanism
- Long service life with up to 1,000,000 cycles
- Wide operating temperature range from -30°C to +70°C
- IP67 rated encoder housing for protection against dust and water
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and industrial sensor mounting to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-C1QM03M400 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position measurement.
