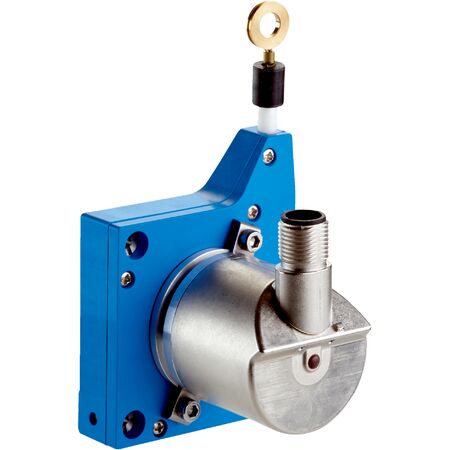

Absolute Encoder Wire Draw Sensor | 0.02 mm Resolution | IP67 Rated | 1.25 m Measurement Range | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise linear position measurement in industrial automation. With a high resolution of 0.02 mm and a measurement range of up to 1.25 m, it ensures reliable performance in safety-related applications. Built with a robust IP67-rated housing and flexible stainless steel measuring wire, this sensor is perfect for machine monitoring and control systems, offering low power consumption and long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Measuring wire material: Stainless steel 1.4401 V4A with PA 12 sheath
- Spring return force: 1 N to 1.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Enclosure rating: IP50 (housing), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 230 years (EN ISO 13849-1)
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.2 kg
