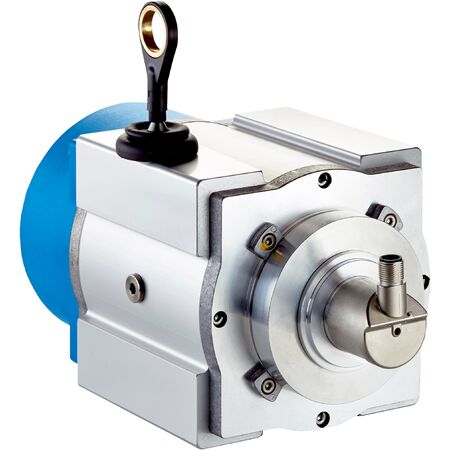

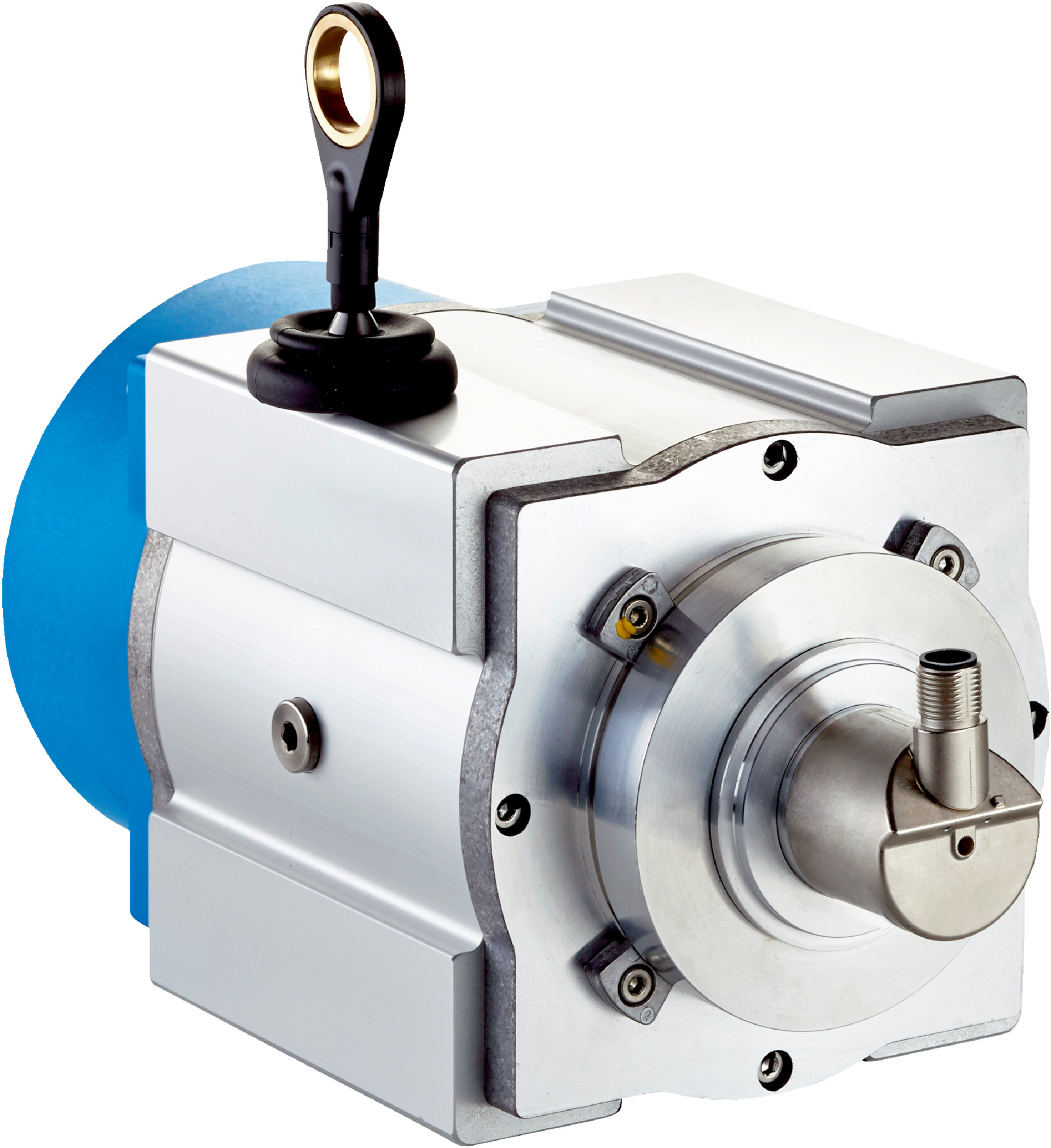

Absolute Encoder Wire Draw Sensor | 10m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 meters and a high resolution of 0.02 mm with repeatability of ≤ 1.5 mm. Built for harsh environments, it offers robust IP64 to IP67 protection and a long life wire draw mechanism rated for approximately 1,000,000 cycles, making it ideal for safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: CANopen
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder model: AHM36 CANopen
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 10 meters
- High resolution of 0.02 mm with repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement in harsh environments requiring IP64 to IP67 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-C1QM1049 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
