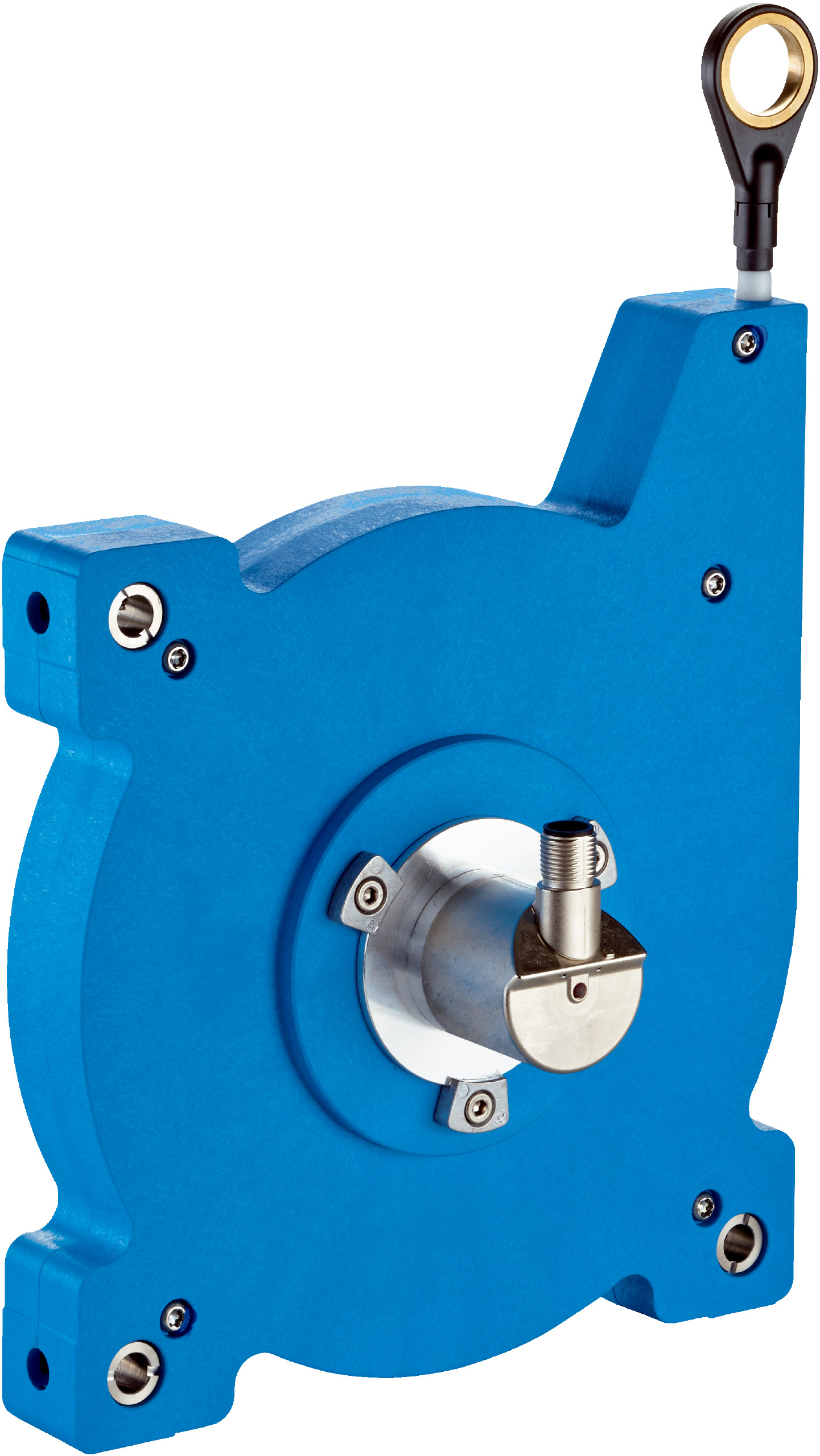

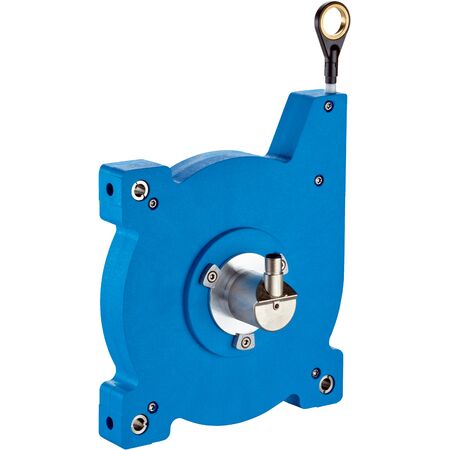

Absolute Encoder Wire Draw Sensor | 10m Measurement Range | 0.03mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 meters and a high resolution of 0.03 mm. With robust construction and an IP67 rating, it ensures reliable performance in challenging environments, making it ideal for safety monitoring and control systems requiring high accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin, universal
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.02 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 10 m
- High resolution of 0.03 mm and repeatability ≤ 0.2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Programmable and configurable for flexible integration
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and CANopen communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement and control systems requiring high accuracy
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long life cycle reduce waste and replacement frequency
- Low power consumption of ≤ 1.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG19-C1QM1029 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
