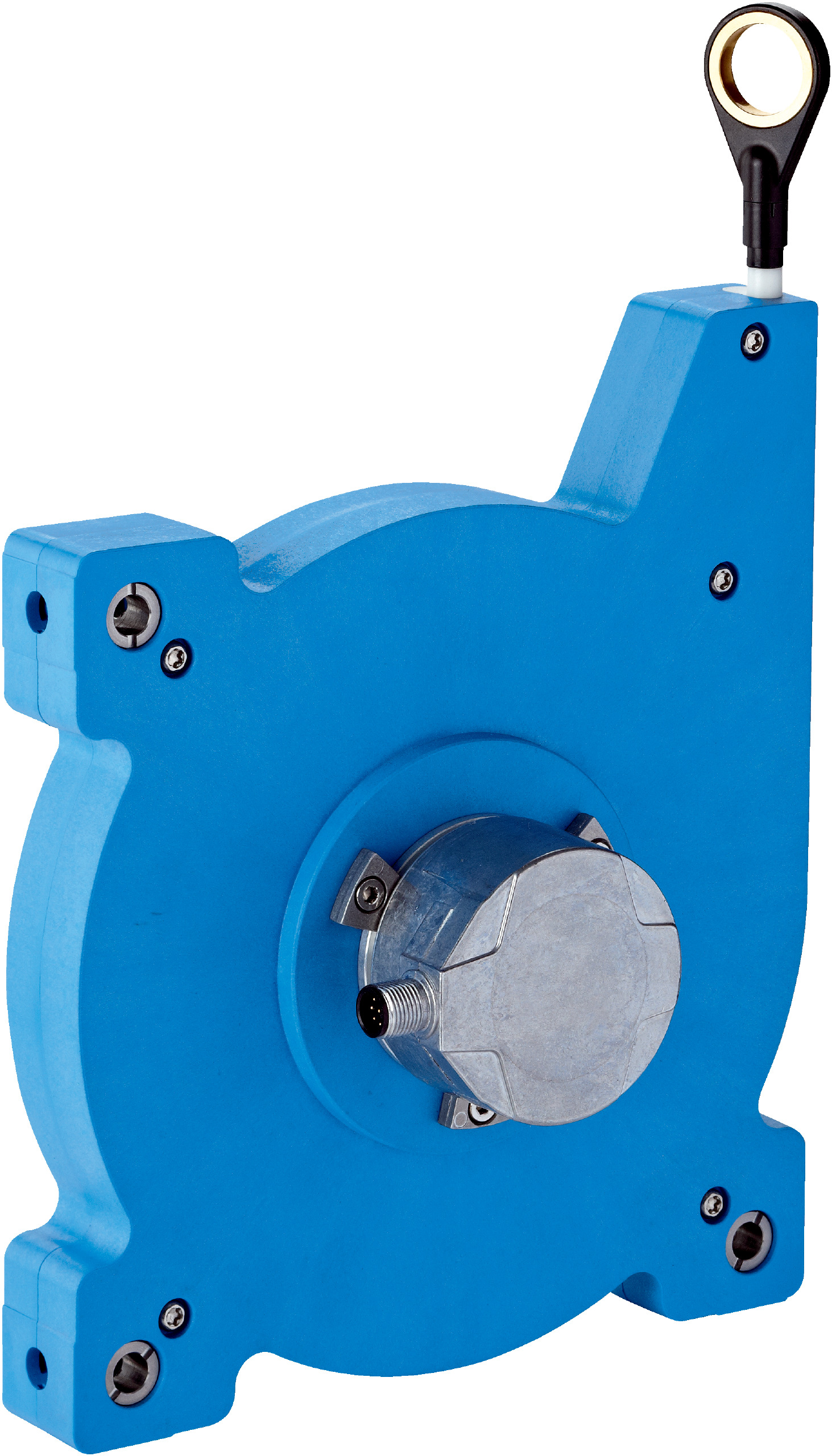

Absolute Encoder Wire Draw Sensor | 10m Measurement Range | 0.07mm Resolution | IP50 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 meters and a high resolution of 0.07 mm. With robust construction and an operating temperature range from -30 °C to +70 °C, it ensures reliable performance in safety-related monitoring applications, making it ideal for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.07 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.2 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement range up to 10 meters
- High resolution of 0.07 mm and repeatability ≤ 0.2 mm
- Robust construction with plastic Noryl housing and stainless steel wire
- Spring return force between 9 N and 12 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement of linear displacement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

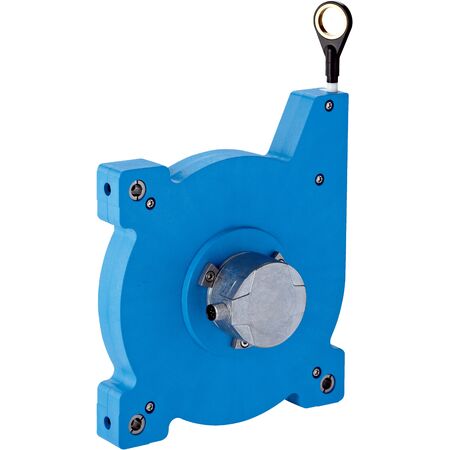

The SICK BCG19-A1CM1015 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
