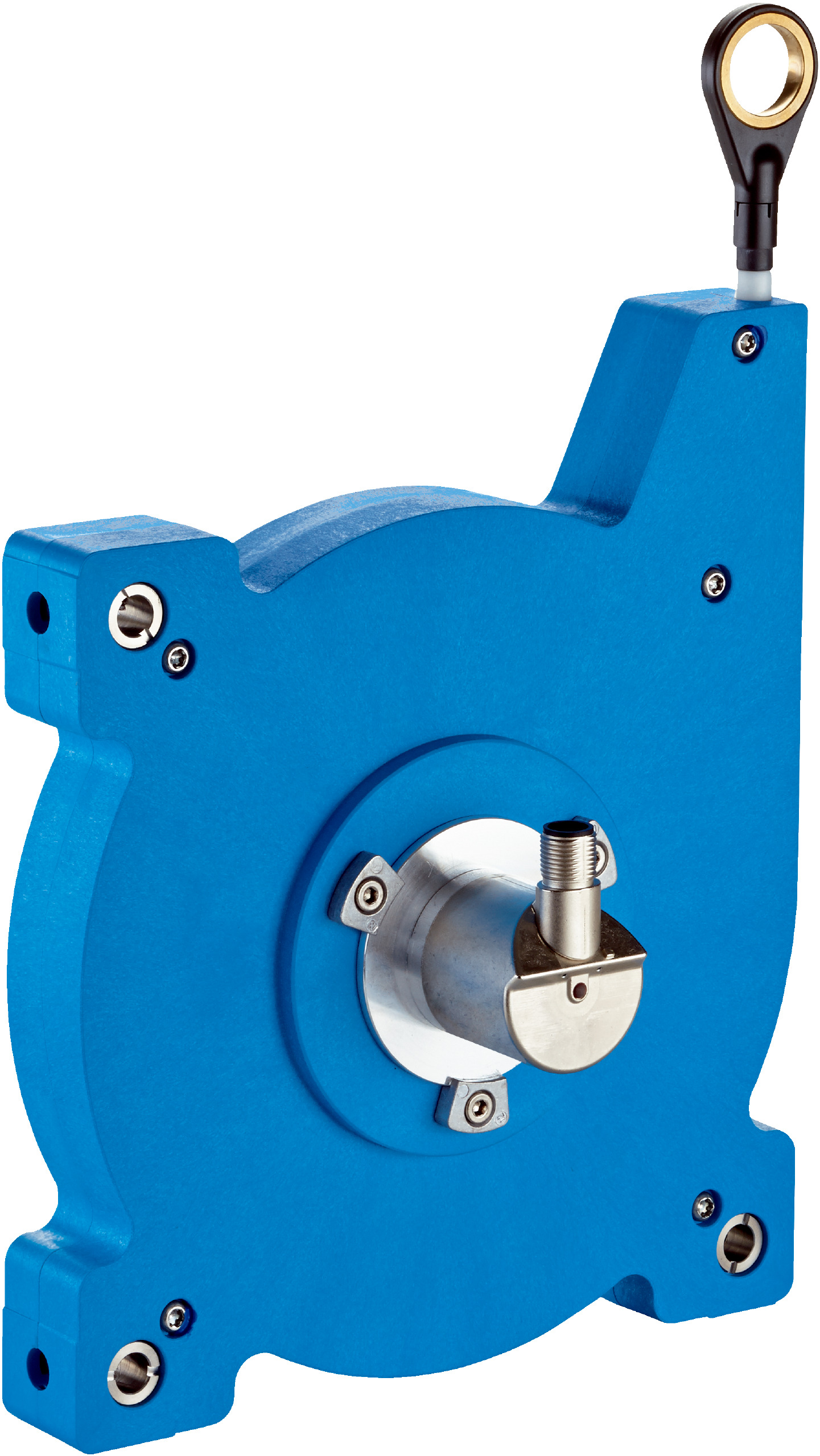

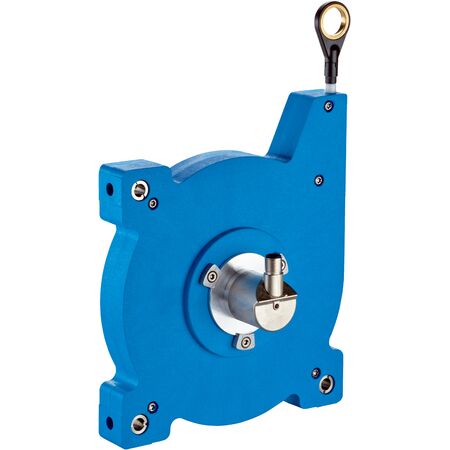

Absolute Encoder Wire Draw Sensor | 10m Measurement Range | 0.07mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 meters and a high resolution of 0.07 mm. With robust IP67 housing and a life expectancy of approximately 1,000,000 cycles, it ensures reliability in safety-related monitoring and control systems, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.07 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1,4401 V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.02 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 10 meters
- High resolution of 0.07 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Robust housing with IP50 rating, mounted mechanic IP66, encoder IP67
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 9 N and 12 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement and control systems requiring high repeatability and accuracy
