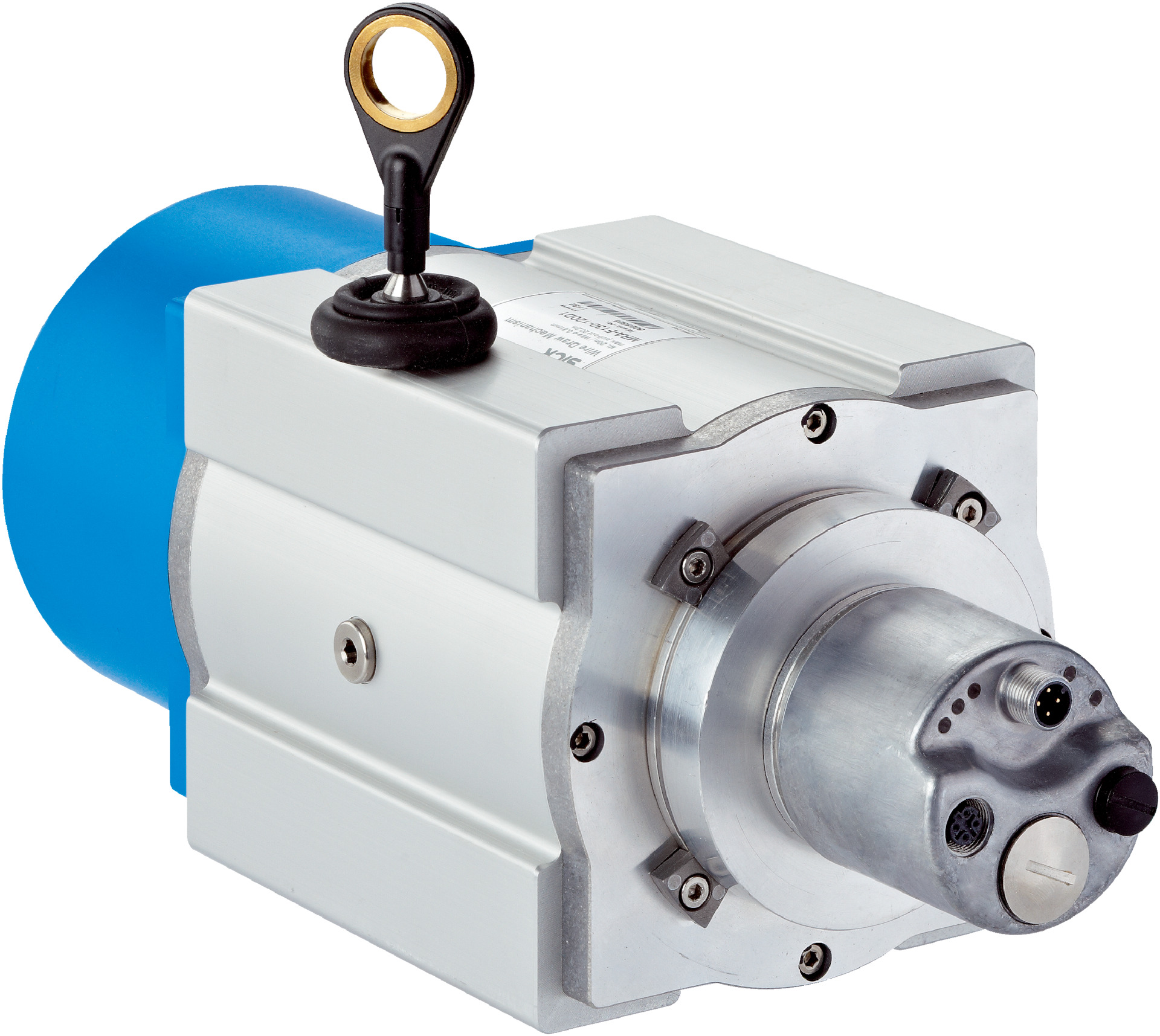

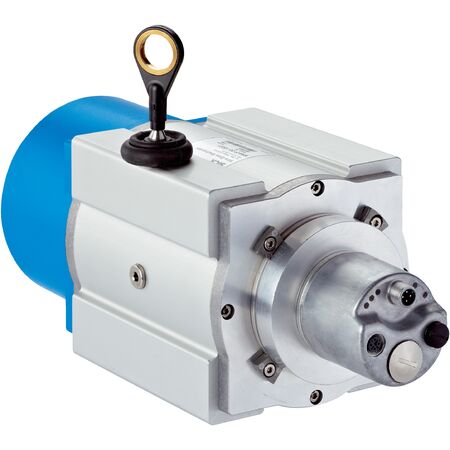

Absolute Encoder Wire Draw Sensor | 15m Measurement Range | 0.001mm Resolution | EtherCAT® Interface | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 15 meters and a high resolution of 0.001 mm. With an EtherCAT® communication interface and robust IP64-rated enclosure, it ensures reliable performance in demanding environments, making it ideal for machine monitoring and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 15 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: EtherCAT®
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Operating speed: 4 m/s
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.7 kg
Key Features
- Measurement range up to 15 m
- High resolution of 0.001 mm
- Repeatability ≤ 1.5 mm
- EtherCAT® communication interface
- Programmable and configurable
- Robust aluminum and plastic housing
- Operating temperature range from –30 °C to +70 °C
- IP64 rated enclosure, IP67 for mounted mechanic
- Spring return force between 10 N and 20 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT® systems and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation and safety systems
- Position measurement in manufacturing processes
- Machine monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-E1BM1599 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise position measurement.
