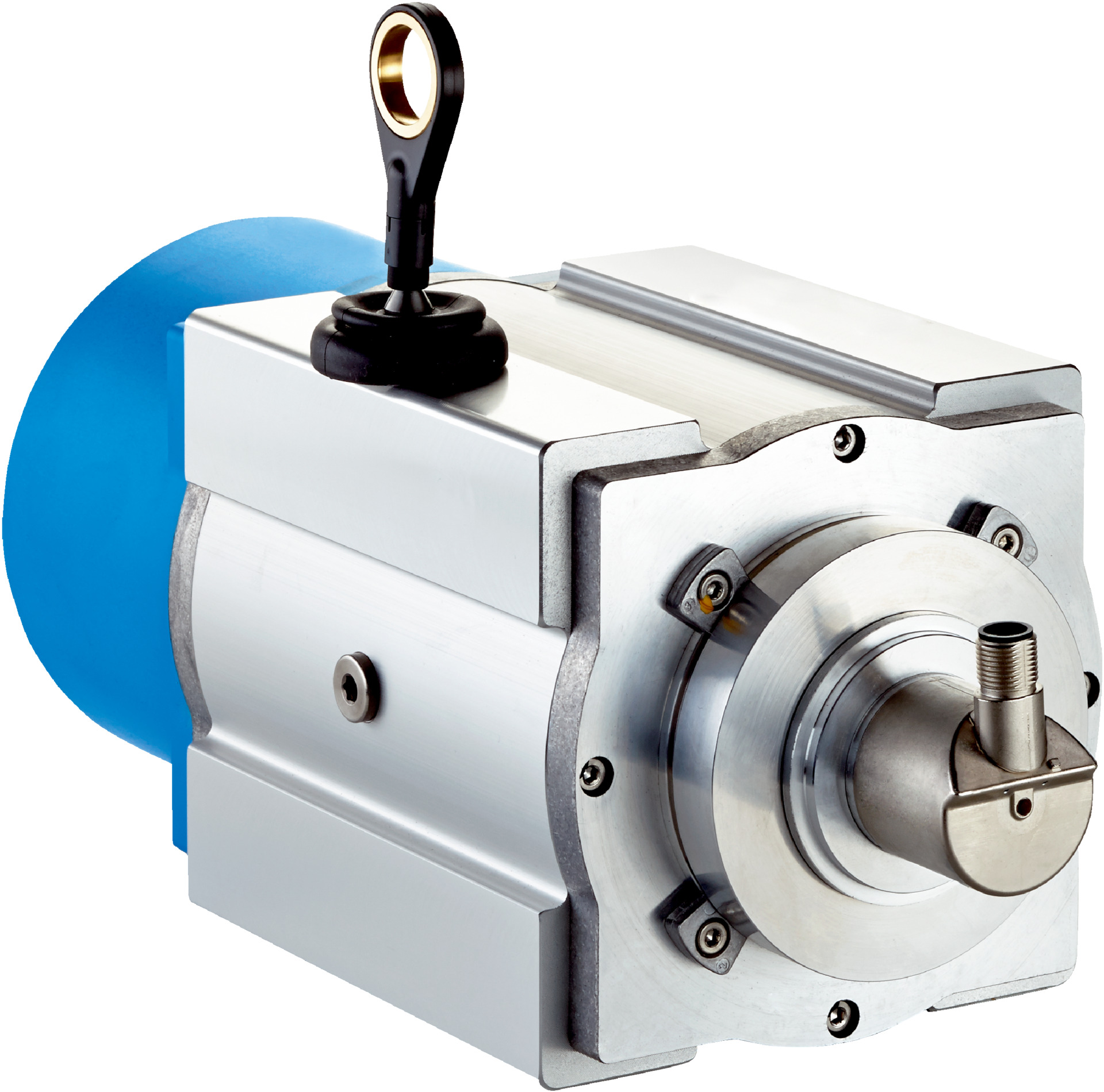

Absolute Encoder Wire Draw Sensor | 20m Measurement Range | 0.04mm Resolution | IP64 to IP67 Protection | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 20 meters and a high resolution of 0.04 mm. With robust IP64 to IP67 protection ratings and a long-lasting wire draw mechanism rated for approximately 1,000,000 cycles, this sensor is perfect for safety-critical applications requiring high reliability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: SSI (Synchronous Serial Interface)
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Pre-programmable device with configurable SSI communication interface
- High measurement range up to 20 meters with absolute encoder
- High resolution of 0.04 mm and repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection ratings
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with electrical and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Measurement and control systems with long wire draw requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-A1NM20S09 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
