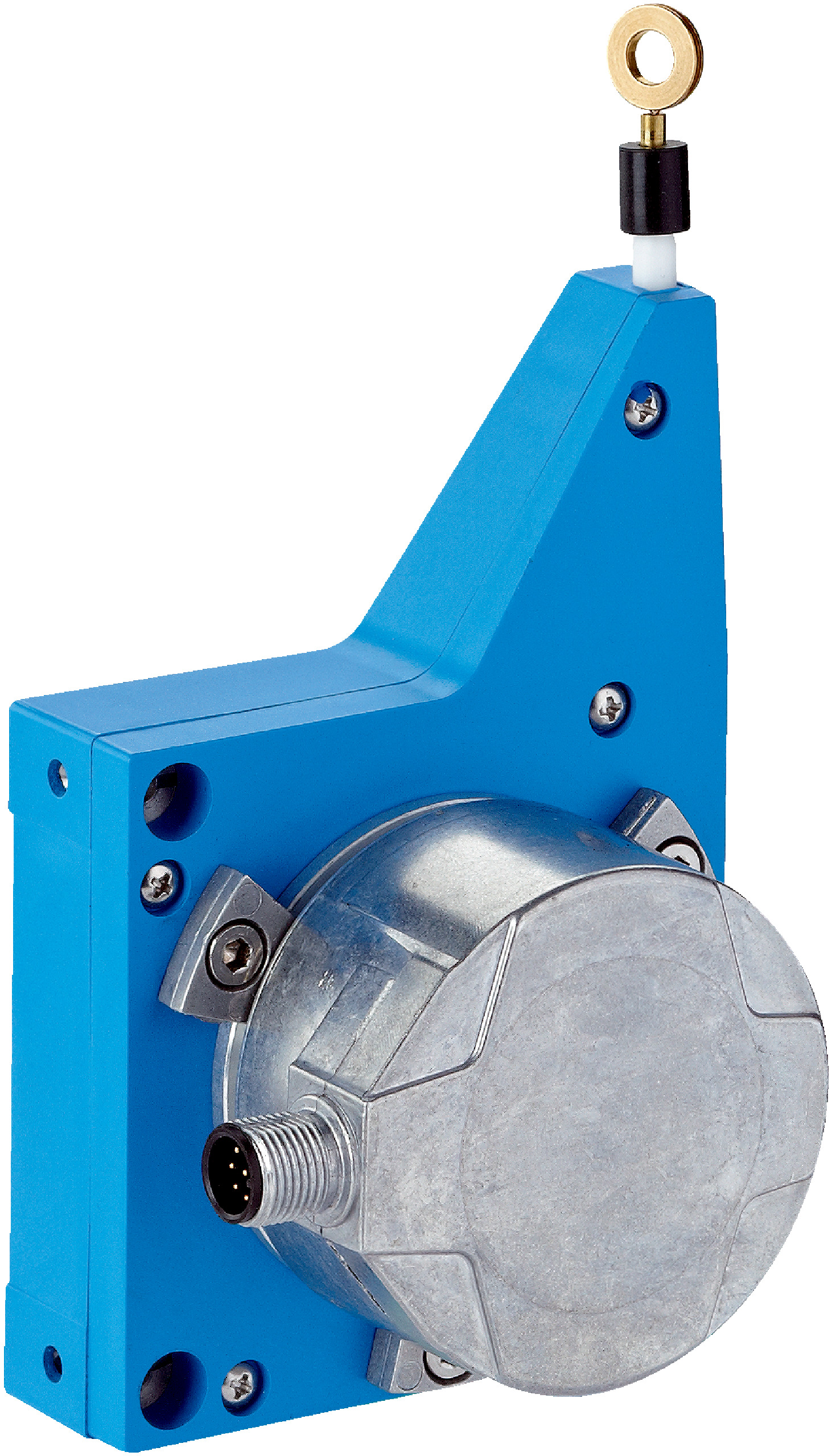

Absolute Encoder Wire Draw Sensor | 3m Measurement Range | 0.06mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 3 meters and a high resolution of 0.06 mm. With a robust Noryl housing and stainless steel measuring wire, it ensures durability and reliability in safety-related applications, making it ideal for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder Wire Draw Sensor | 3m Measurement Range | 0.06mm Resolution | IP67 Rated | by SICK
Brand: SICK
SKU: 1054129
Alternatively Known As: Wire Draw Encoder, Absolute Encoder Sensor, Position Sensor with Wire Draw, SSI Encoder Sensor
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Operating temperature range: 0 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 sensor, IP67 mounted mechanic
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.55 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 3 meters
- High resolution of 0.06 mm with repeatability ≤ 0.2 mm
- Robust plastic Noryl housing with stainless steel measuring wire
- Spring return force between 3.3 N and 4.4 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from 0 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating IP50 for sensor, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

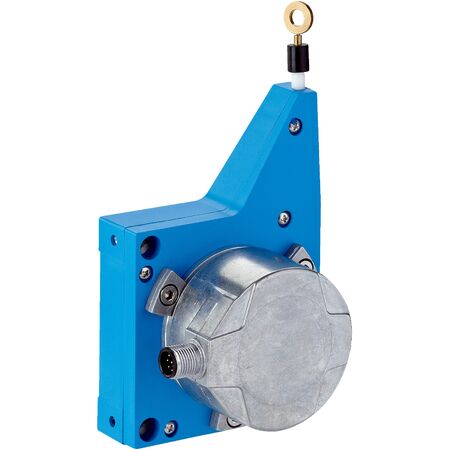

The SICK BCG08-A1CM0318 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related applications.
