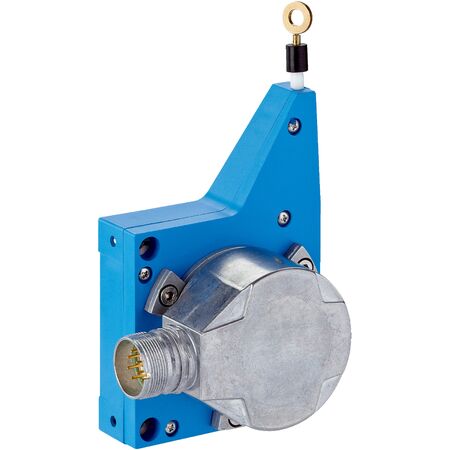

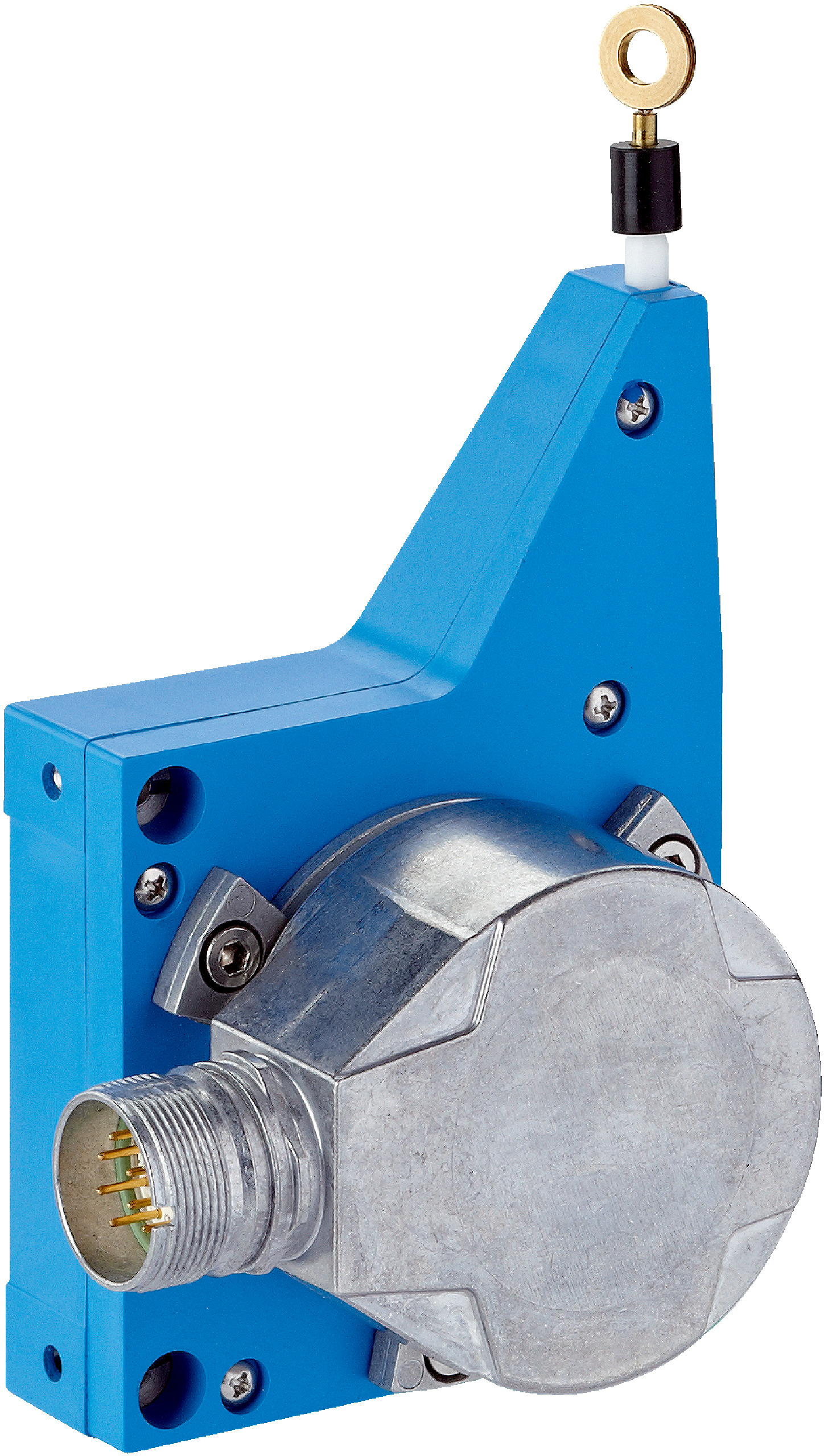

Absolute Encoder Wire Draw Sensor | 3m Measurement Range | 0.06mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise linear measurement in industrial automation, featuring a measurement range of up to 3 meters and a high resolution of 0.06 mm. With robust construction and an IP67 rating for mounted mechanics, it ensures reliability in safety-related applications, making it ideal for position feedback in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoder with SSI interface
- Resolution: 0.06 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Connection: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire: Highly flexible stranded stainless steel (1.4401 V4A), diameter 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life expectancy: Typically 1,000,000 cycles
- Operating speed: Up to 6 m/s
- Wire acceleration: 10 m/s²
- Operating temperature: 0 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (sensor), IP67 (mounted mechanic)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.55 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 3 meters
- High resolution of 0.06 mm with repeatability ≤ 0.2 mm
- Robust plastic Noryl housing with stainless steel measuring wire
- Spring return force between 3.3 N and 4.4 N
- Operating temperature range from 0 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- IP50 enclosure rating, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper connection and calibration.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring high reliability
- Position feedback in machinery and equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BCG08-A1AM0318 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
