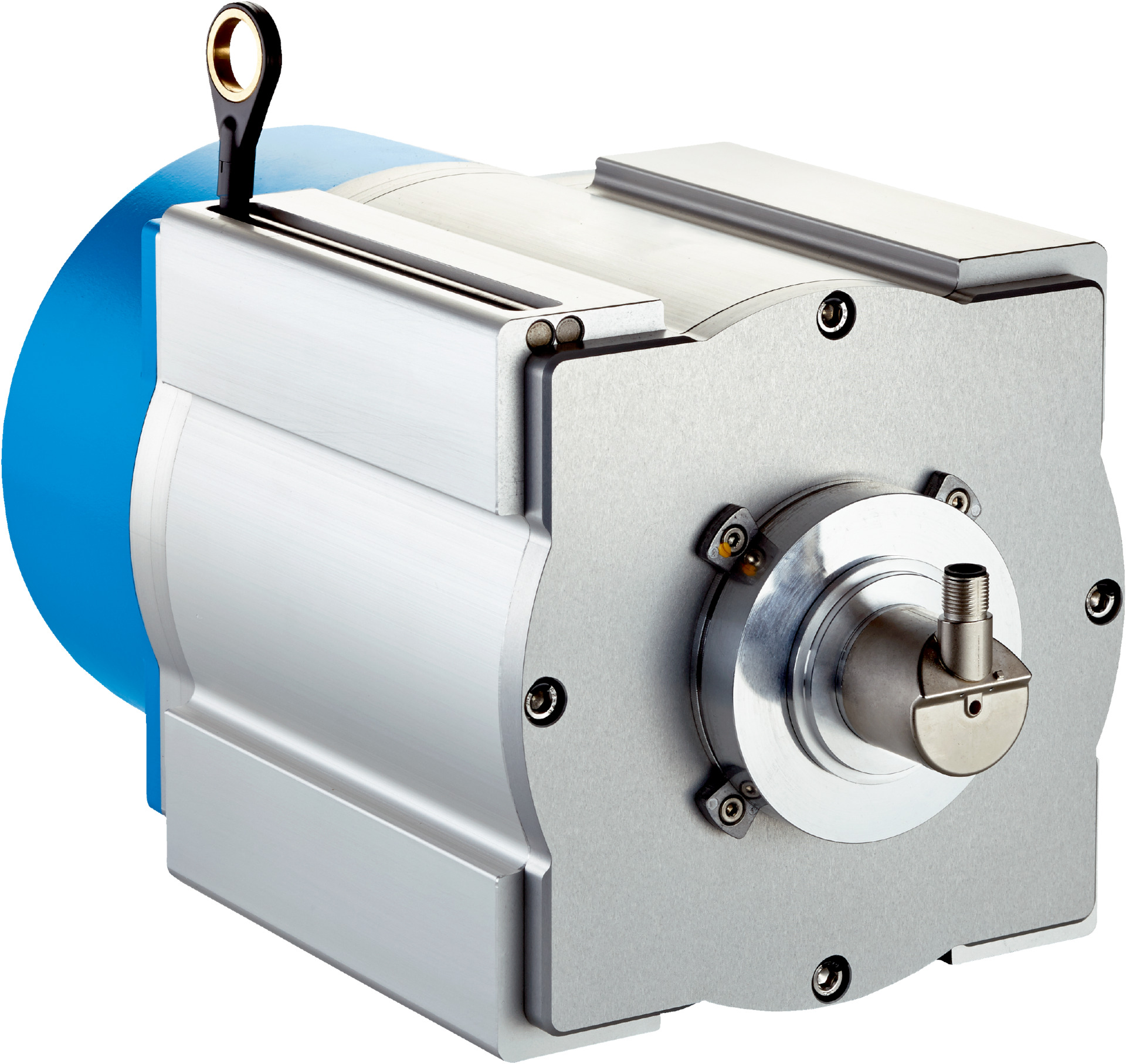

Absolute Encoder Wire Draw Sensor | 50m Measurement Range | 0.03mm Resolution | IP66 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise length measurement in industrial automation, featuring a measurement range of up to 50 meters and a high resolution of 0.03 mm. With robust aluminum housing and an IP66 rating, it ensures durability and reliability in harsh environments, making it ideal for manufacturing processes and machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Encoder type: Absolute encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31 (general), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High measurement range up to 50 m
- High resolution of 0.03 mm with excellent repeatability and linearity
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating temperature range from -30 °C to +70 °C
- IP31 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and safety systems
- Measurement and control in manufacturing processes
- Position and length measurement in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
