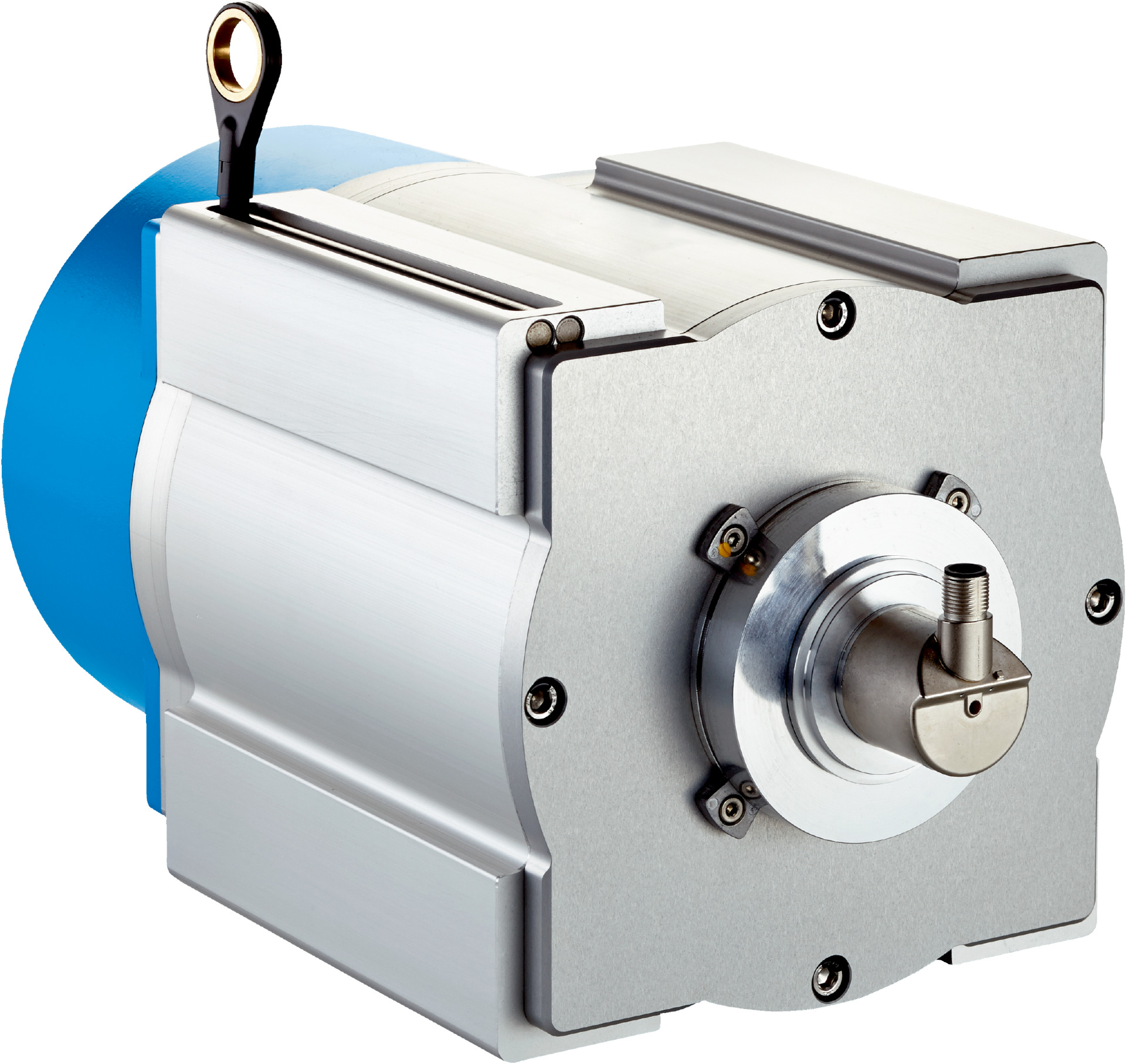

Absolute Encoder Wire Draw Sensor | 50m Measurement Range | 0.06mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 50 meters and a high resolution of 0.06 mm. With an IP67 rating and robust aluminum housing, it ensures reliable performance in demanding environments, making it ideal for safety-related monitoring and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Encoder type: Absolute encoders
- Resolution: 0.06 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin, universal
- Weight: 16.62 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Mounted encoder model: AHM36 SSI
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP31 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 200mm x 300mm x 200mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement range up to 50 meters
- High resolution of 0.06 mm with repeatability ≤ 5 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating temperature range from -30 °C to +70 °C
- IP31 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Programmable and configurable interface
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation and control systems
- Position measurement in manufacturing processes
- Safety-related monitoring in machinery
- Measurement of linear displacement up to 50 meters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF19-A1NM5017 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
