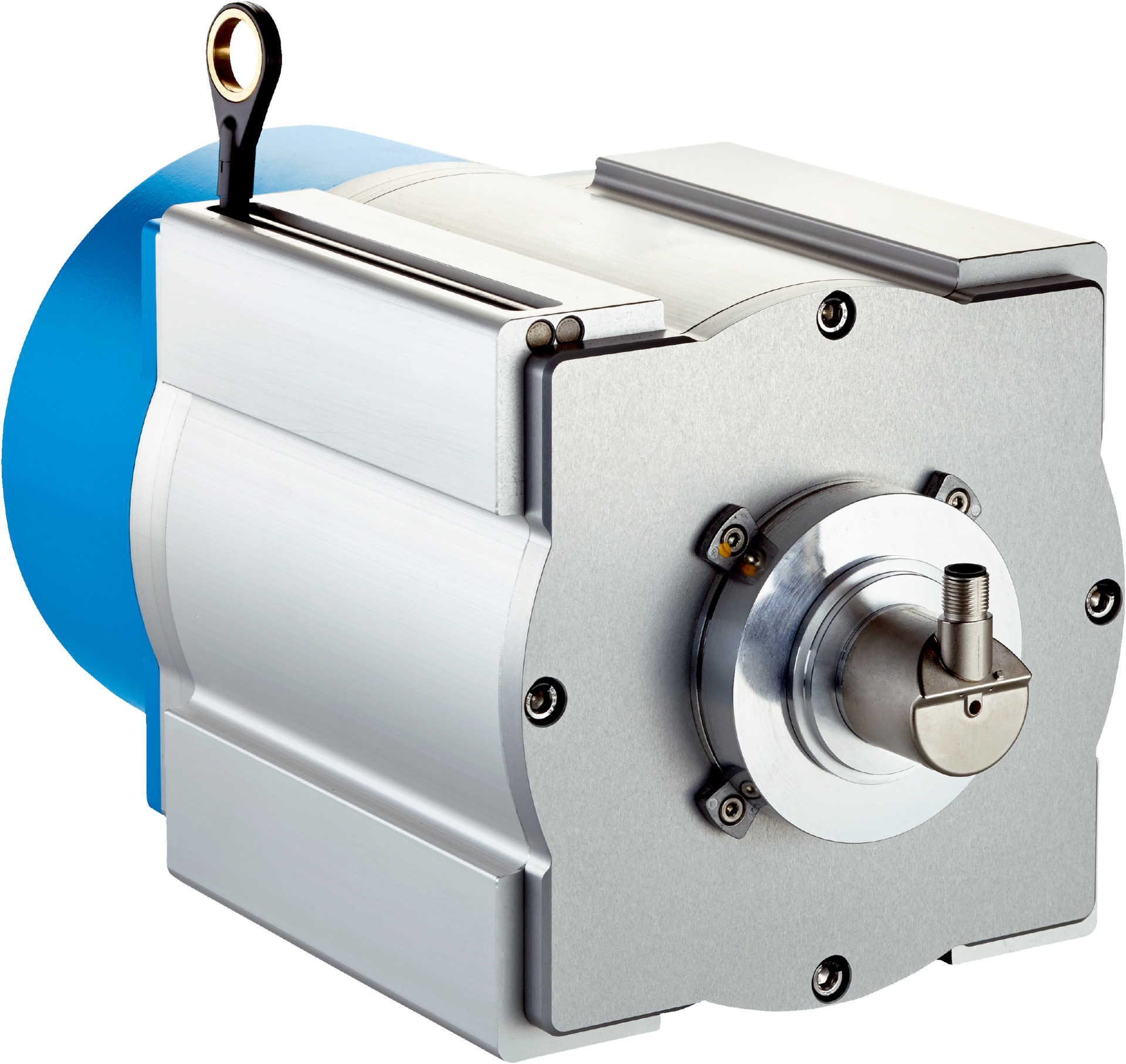

Absolute Encoder Wire Draw Sensor | 50m Measurement Range | 0.06mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise linear measurement in industrial automation, featuring a measurement range of up to 50 meters and a high resolution of 0.06 mm. With a robust aluminum housing and an IP67 rating, this sensor is built for reliability in safety-critical applications, ensuring accurate performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Resolution: 0.06 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Weight: 16.62 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 18 N to 37 N
- Operating speed: 4 m/s
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP31 (device), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with CANopen communication interface
- Measurement range up to 50 meters
- High resolution of 0.06 mm with repeatability ≤ 5 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Programmable and configurable device
- Spring return force between 18 N and 37 N
- Operating temperature range from -30 °C to +70 °C
- IP31 enclosure rating, with mounted mechanic IP66 and encoder IP67
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen devices and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring high reliability
- Machine control and monitoring systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK BTF19-C1QM50S01 is available for immediate purchase, ideal for industrial automation and safety-critical measurement applications.
