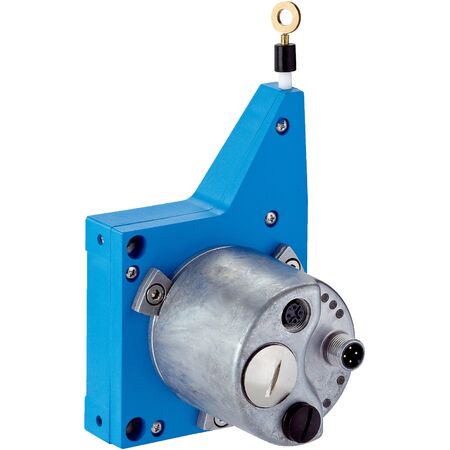

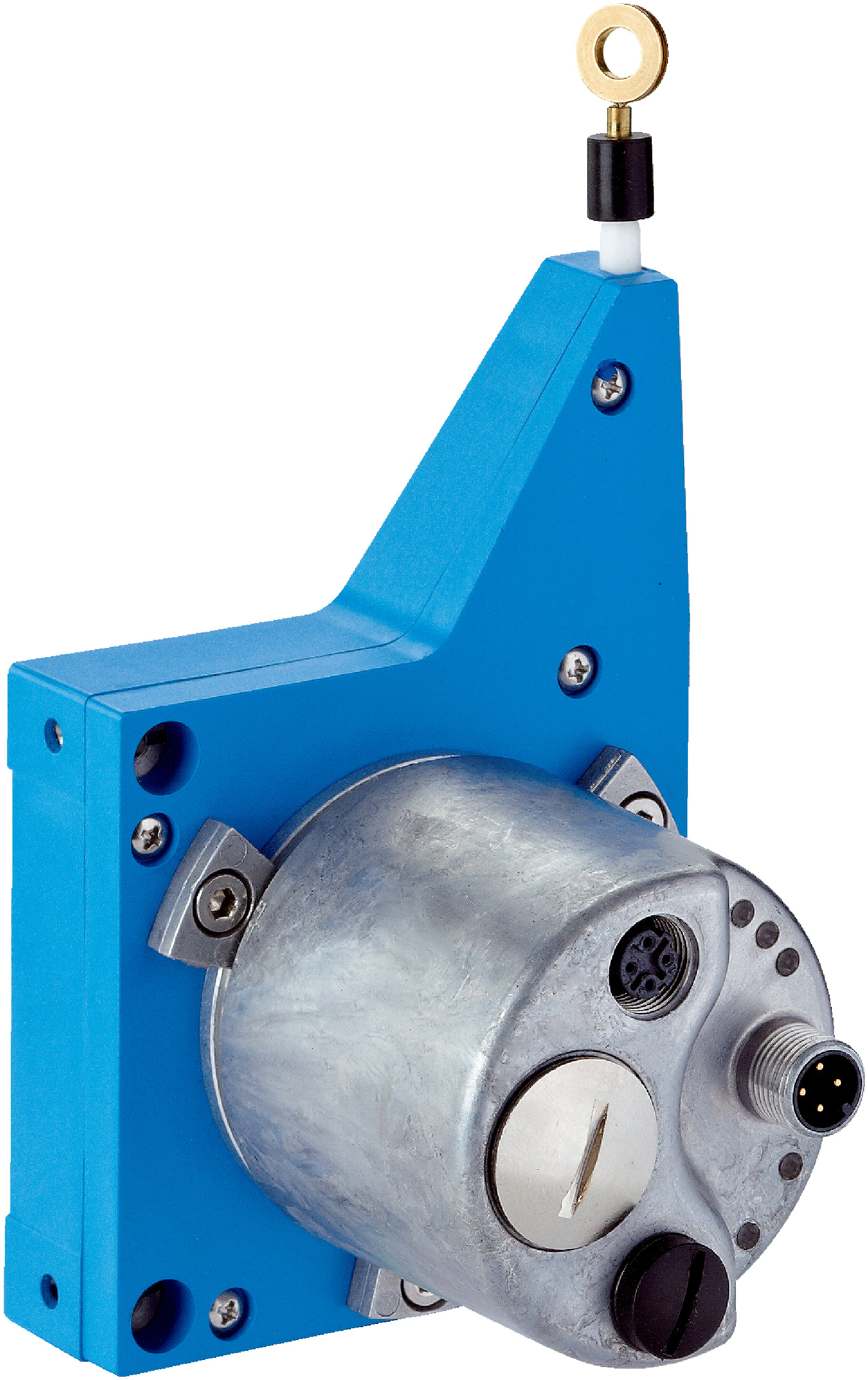

Absolute Encoder Wire Draw Sensor | EtherCAT Communication | 0.001 mm Resolution | 3 m Measurement Range | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring EtherCAT communication and a high resolution of 0.001 mm. With a measurement range of up to 3 meters and robust construction, it's perfect for machine tool monitoring, robotics, and safety-related applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: EtherCAT®
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.45 kg
Key Features
- Absolute encoder with EtherCAT® communication interface
- High resolution of 0.001 mm with repeatability ≤ 0.2 mm
- Measurement range up to 3 meters
- Highly flexible stranded stainless steel measuring wire
- Robust plastic Noryl housing for wire draw mechanism
- Spring return force between 3.3 N and 4.4 N
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
- Power consumption ≤ 3 W without load
- Programmable and configurable interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT® systems and safety-related sensor integration to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Machine tool monitoring and control
- Robotics and factory automation
- Safety-related position feedback systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 3 W reduces energy usage
- Durable stainless steel measuring wire extends product life and reduces waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-E1BM0399 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related position measurement applications.
