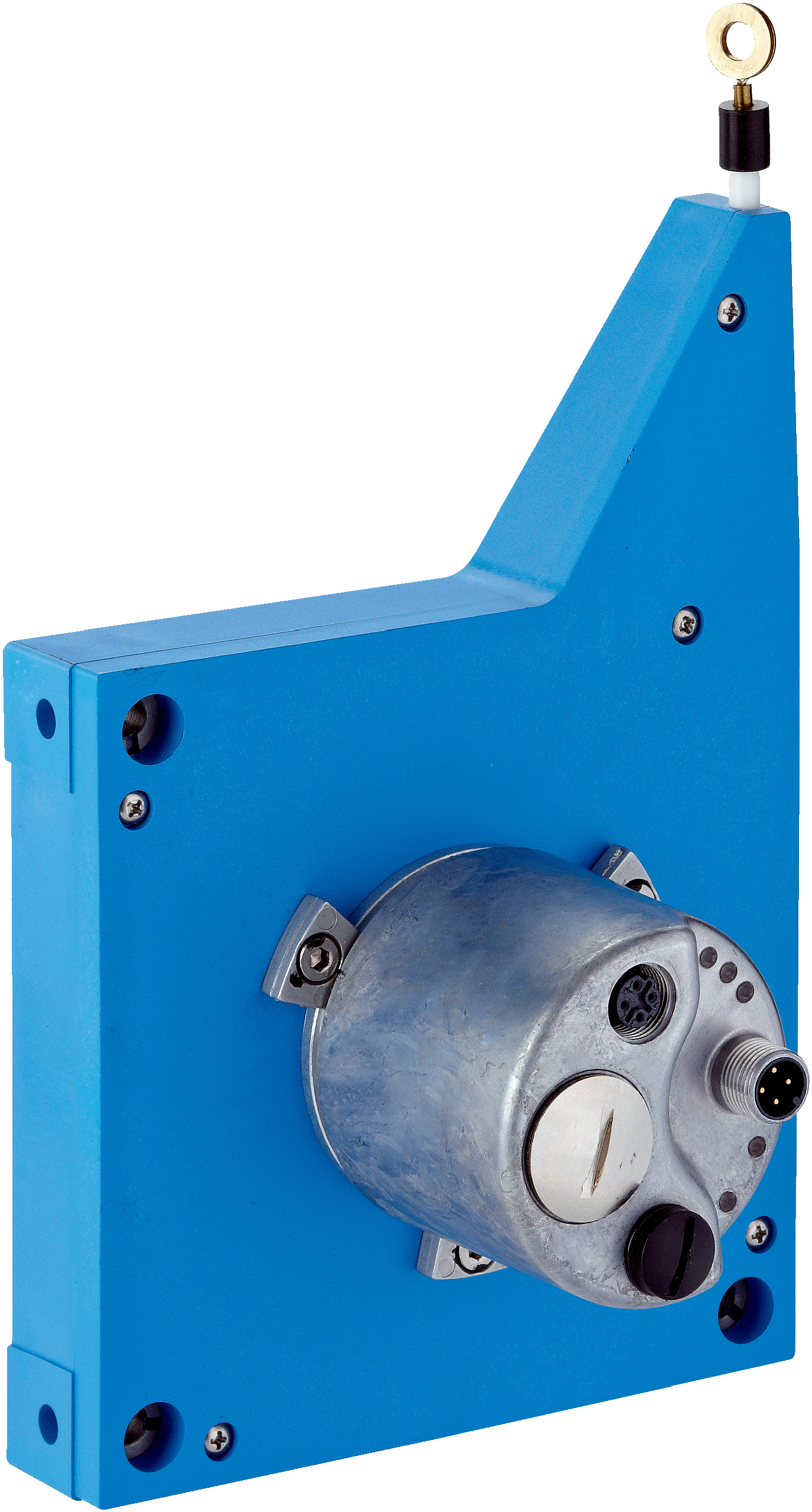

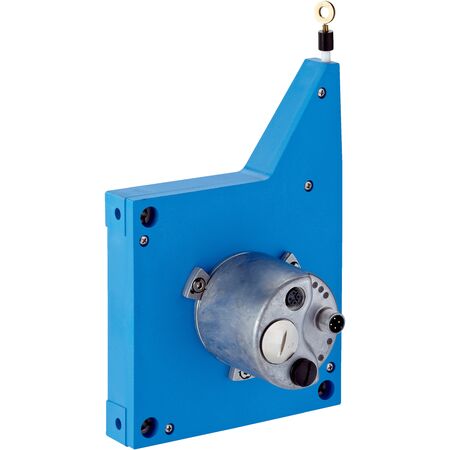

Absolute Encoder Wire Draw Sensor | EtherCAT Communication | 0.001 mm Resolution | 5 m Measurement Range | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise linear measurement in industrial automation, featuring EtherCAT communication and a high resolution of 0.001 mm. With a measurement range of up to 5 meters and robust construction, it ensures reliable position feedback in manufacturing machinery and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: EtherCAT®
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder model: AFM60 EtherCAT®
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP67)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1 kg
Key Features
- Absolute encoder with EtherCAT® communication interface
- High resolution of 0.001 mm with repeatability ≤ 0.2 mm
- Measurement range up to 5 meters
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating, mounted mechanic rated IP67
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT® systems and industrial sensor integration to ensure safety and optimal performance.
Applications
- Industrial automation for precise linear measurement
- Position feedback in manufacturing machinery
- Safety-related monitoring in automated systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BCG13-E1BM0599 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
