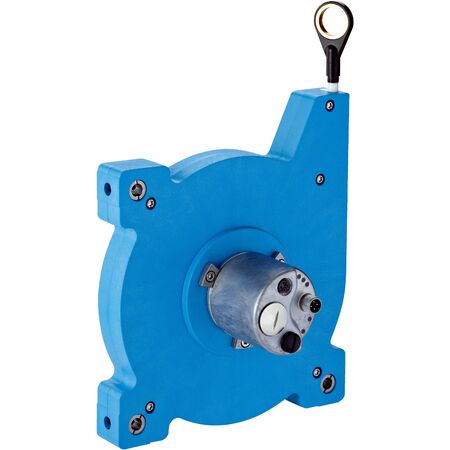

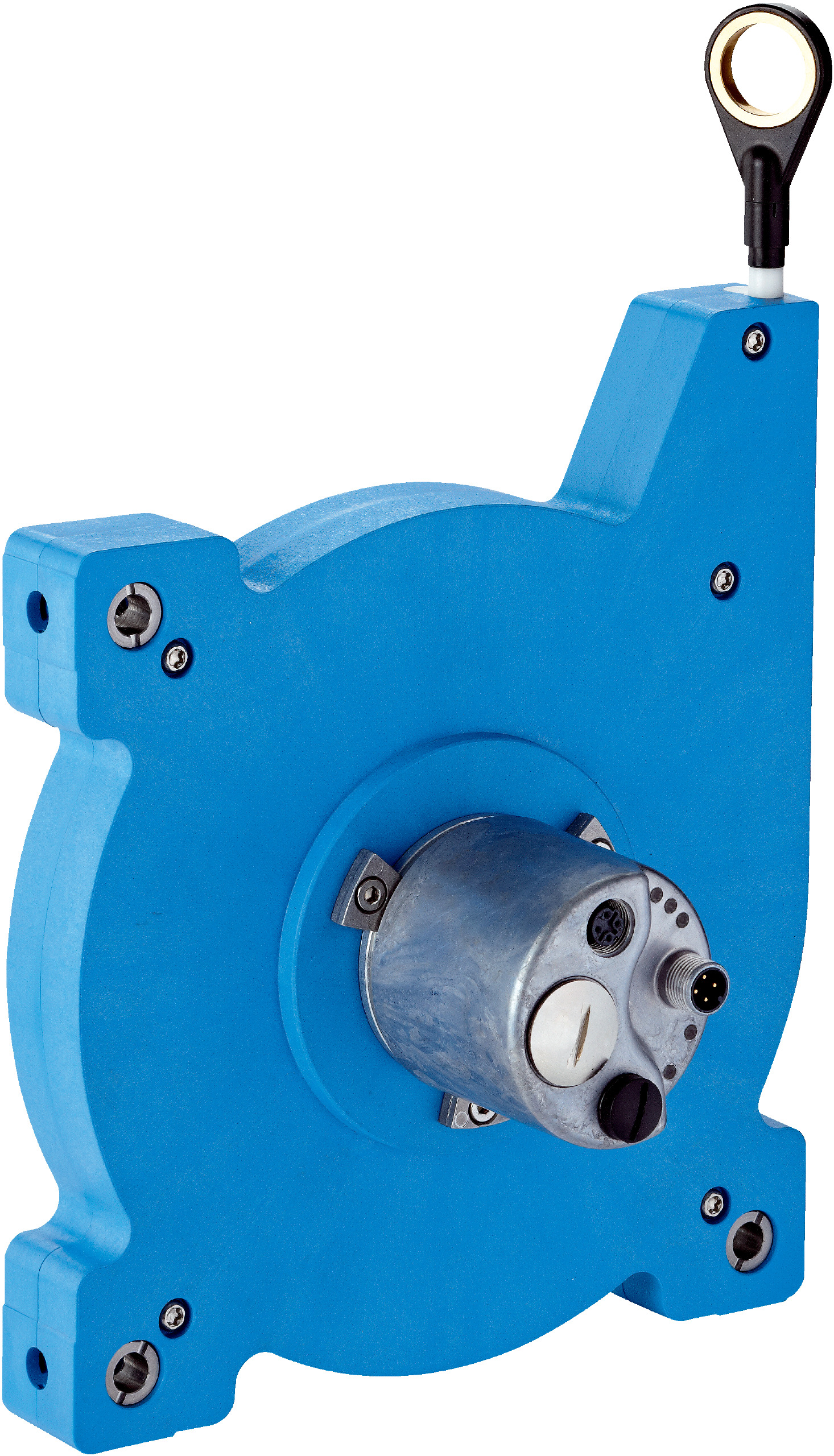

Absolute Encoder Wire Draw Sensor | EtherCAT Communication | 0.002 mm Resolution | 10 m Measurement Range | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring EtherCAT communication and a high resolution of 0.002 mm. With a measurement range of up to 10 m and robust IP67-rated housing, it ensures reliable performance in safety-related monitoring and high-accuracy manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.002 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: EtherCAT®
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Enclosure rating: IP50 (housing), IP67 (mounted mechanic)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.1 kg
Key Features
- Absolute encoder with EtherCAT® communication interface
- High resolution of 0.002 mm with repeatability ≤ 0.2 mm
- Measurement range up to 10 m
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Robust housing with IP50 rating, mounted mechanic IP67
- Operating temperature range from –30 °C to +70 °C
- Programmable and configurable for versatile use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT® systems and safety-related equipment to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- High-accuracy measurement in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BCG19-E1BM1099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
