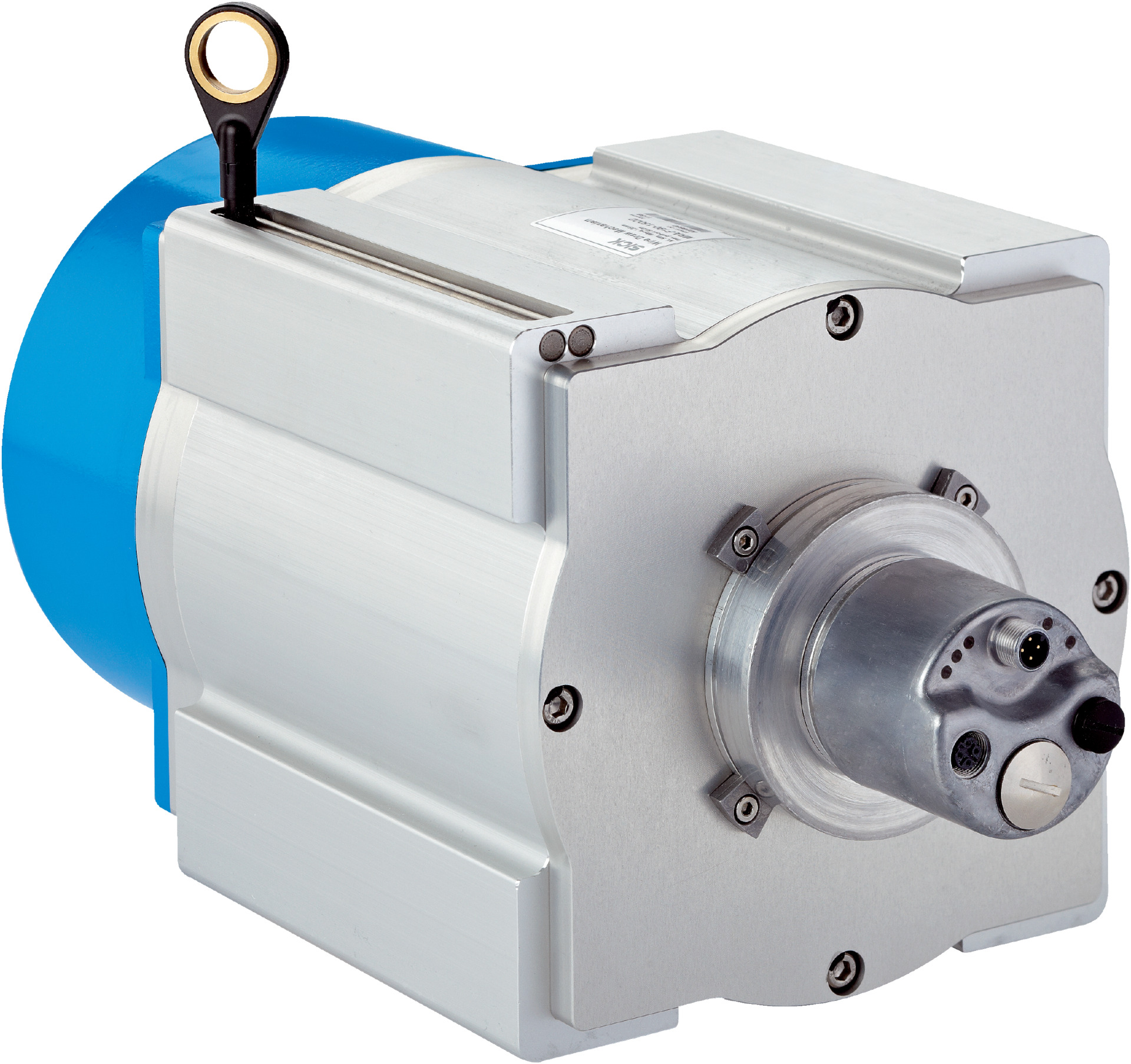

Absolute Encoder Wire Draw Sensor | EtherCAT® Interface | 50m Measurement Range | 0.002mm Resolution | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high measurement range of up to 50 meters and a remarkable resolution of 0.002 mm. Built for reliability, it operates within -30 °C to +70 °C and boasts an IP31 enclosure rating, making it ideal for safety monitoring and high-accuracy manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Resolution: 0.002 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: EtherCAT®
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Mounted encoder: AFM60 EtherCAT®
- Enclosure rating: IP31 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 16.7 kg
Key Features
- Absolute encoder with EtherCAT® communication interface
- High measurement range up to 50 m
- High resolution of 0.002 mm with excellent repeatability and linearity
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating temperature range from -30 °C to +70 °C
- IP31 enclosure rating with IP67 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT® systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- High-accuracy measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF19-E1BM5099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
