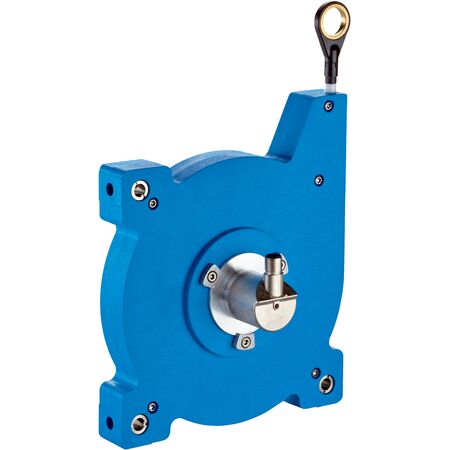

Absolute Encoder Wire Draw Sensor | IO-Link Communication | 10m Measurement Range | High Repeatability | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 meters and high repeatability of ≤ 0.2 mm. With robust construction and an IP50 enclosure rating, it’s perfect for safety-related applications and machine monitoring, ensuring reliable feedback in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution (wire draw + encoder): 0.14 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Length of wire pulled out per revolution: 555 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder model: AHM36 IO-Link Basic
- Operating temperature range: –20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP50 (mechanic IP65)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.02 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement range up to 10 meters
- High repeatability of ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Operating temperature range from –20 °C to +70 °C
- IP50 enclosure rating with mounted mechanic rated at IP65
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG19-Q1PM1061 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
