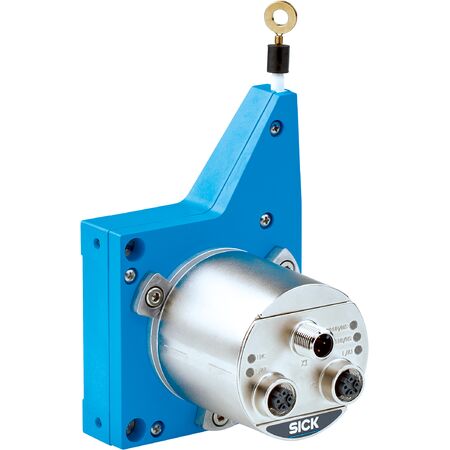

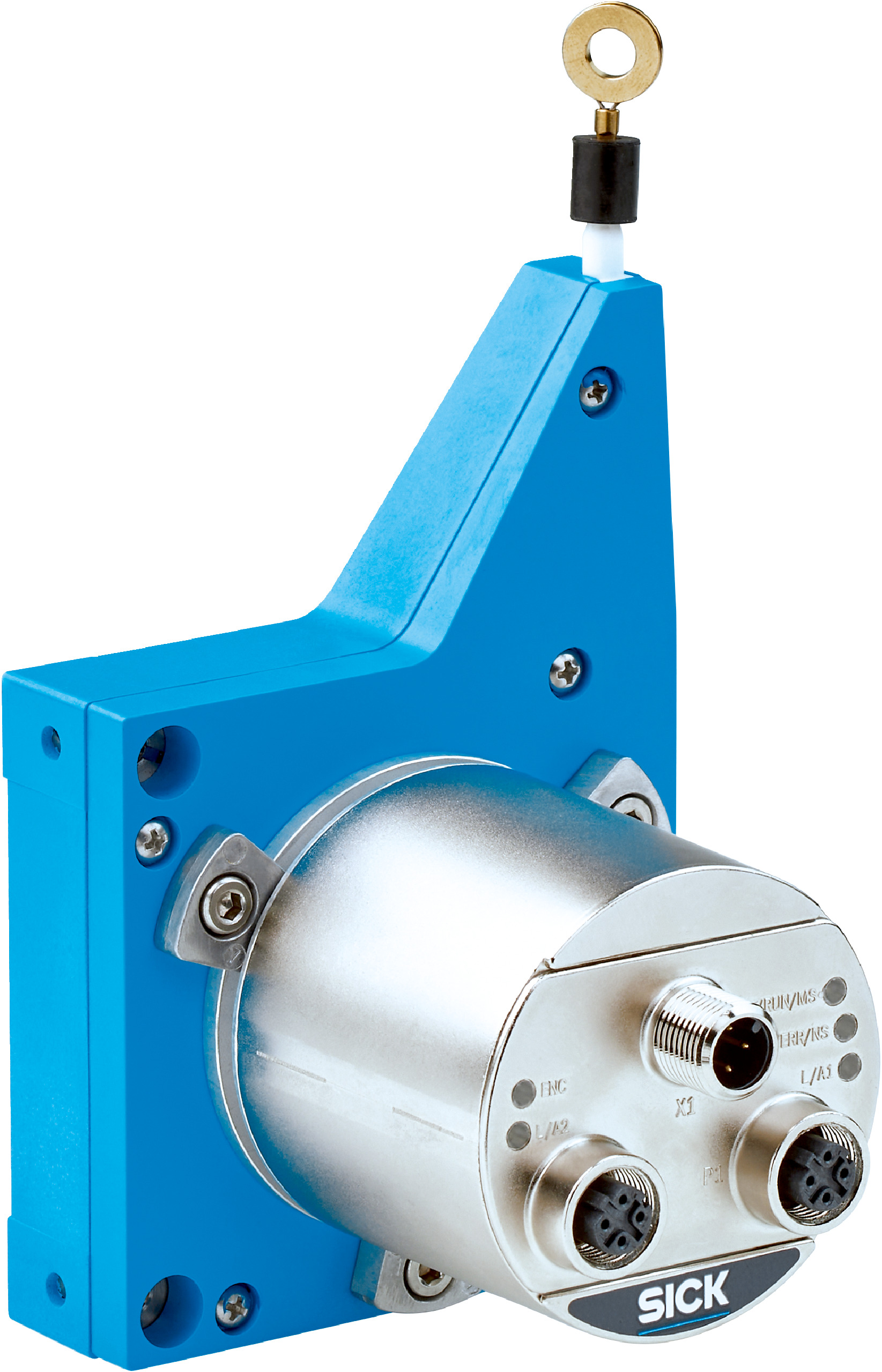

Absolute Encoder Wire Draw Sensor | PROFINET Interface | 0.001 mm Resolution | 3 m Measurement Range | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a PROFINET communication interface and a high resolution of 0.001 mm. With a measurement range of up to 3 meters and robust housing rated IP50, it ensures reliability in safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 165 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.001 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFINET
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 3.3 N to 4.4 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 10 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: ANM58 PROFINET
- Enclosure rating: IP50 (mechanic IP65)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High resolution of 0.001 mm with repeatability ≤ 0.2 mm
- Measurement range up to 3 meters
- Highly flexible stainless steel measuring wire
- Spring return force between 3.3 N and 4.4 N
- Robust housing with IP50 rating, mounted mechanic IP65
- Operating temperature range from -30 °C to +70 °C
- Power consumption ≤ 3 W without load
- Programmable and configurable for versatile use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and PROFINET network configuration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
- Measurement and control in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG08-N1BM0377 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
