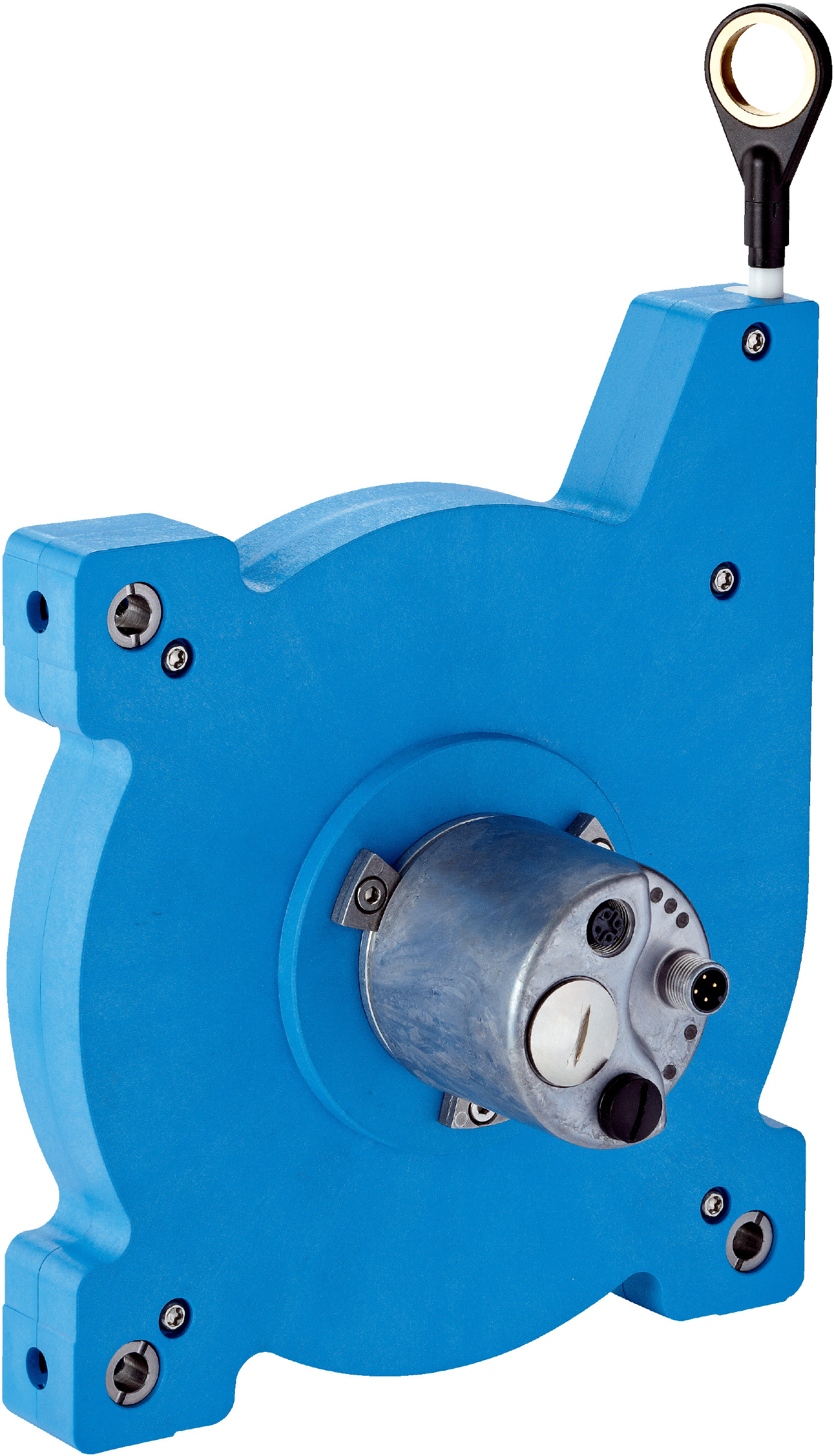

Absolute Encoder Wire Draw Sensor | PROFINET Interface | 0.002 mm Resolution | 1,000,000 Cycles Life | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a PROFINET communication interface and a high resolution of 0.002 mm with repeatability of ≤ 0.2 mm. Built for reliability, it boasts a robust measuring wire mechanism with a lifespan of up to 1,000,000 cycles, making it ideal for safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.002 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 9 N to 12 N
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Life of wire draw mechanism: Typically 1,000,000 cycles
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.1 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High resolution of 0.002 mm with repeatability ≤ 0.2 mm
- Robust measuring wire mechanism with up to 1,000,000 cycles life
- Wide operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

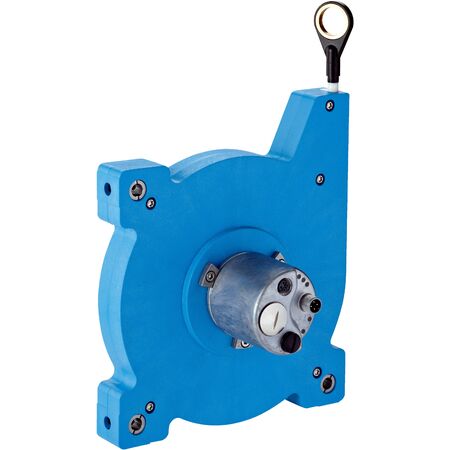

The SICK BCG19-N1BM1099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
