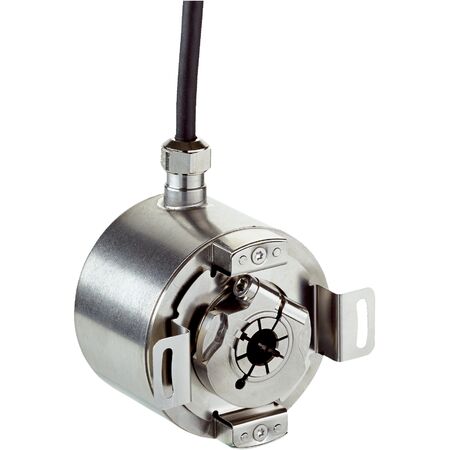

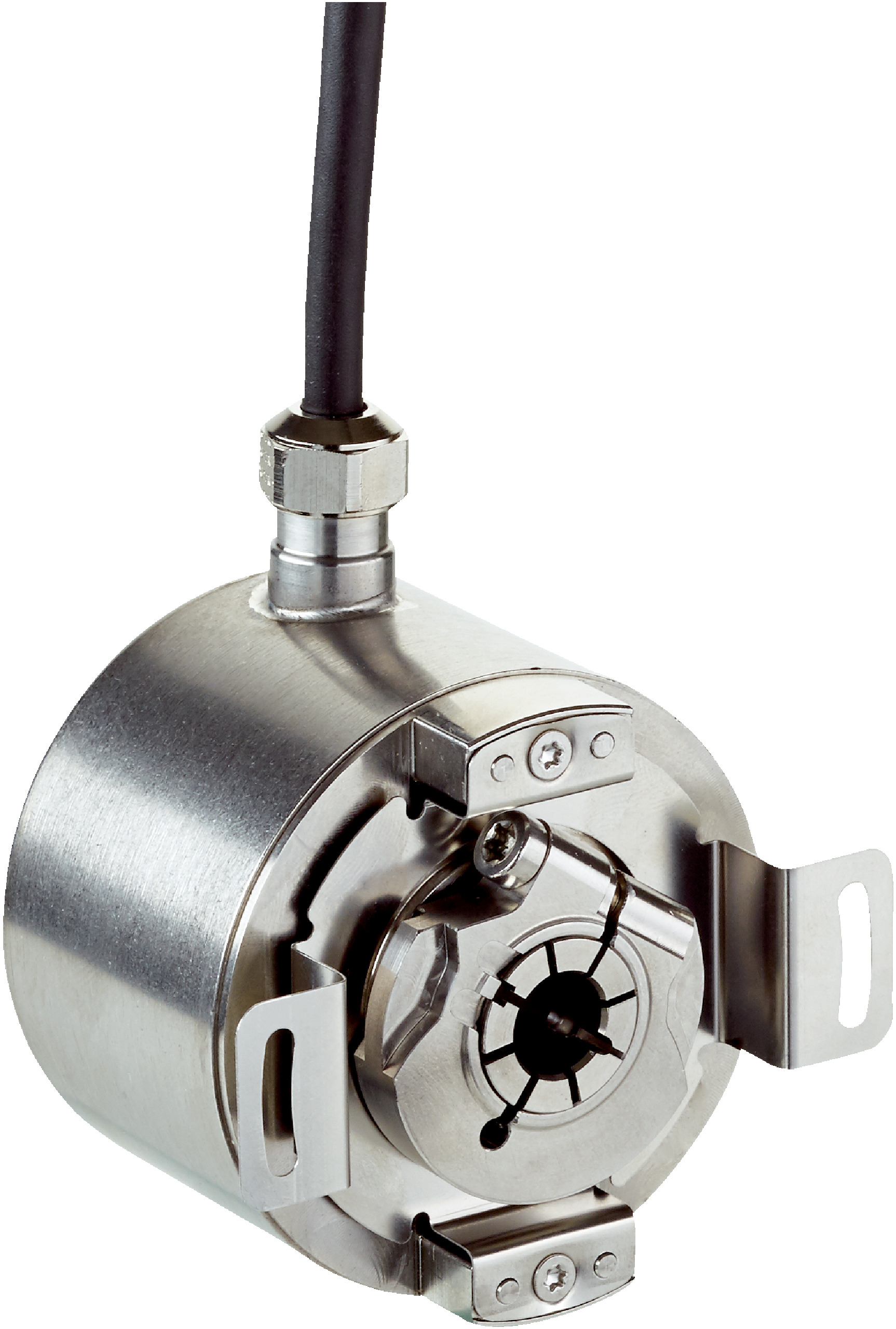

Product Name/Title: Absolute Encoders AFM60I-BEAL262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1094003
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, high resolution encoder, industrial position encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Connection type: 8-wire cable, 3 m length
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft, 12 mm diameter
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial and axial
- Operating speed: 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft with front clamp for secure mounting
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W with supply voltage 4.5 to 32 V DC
- Reverse polarity protection included
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable stainless steel construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-BEAL262144 absolute encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
