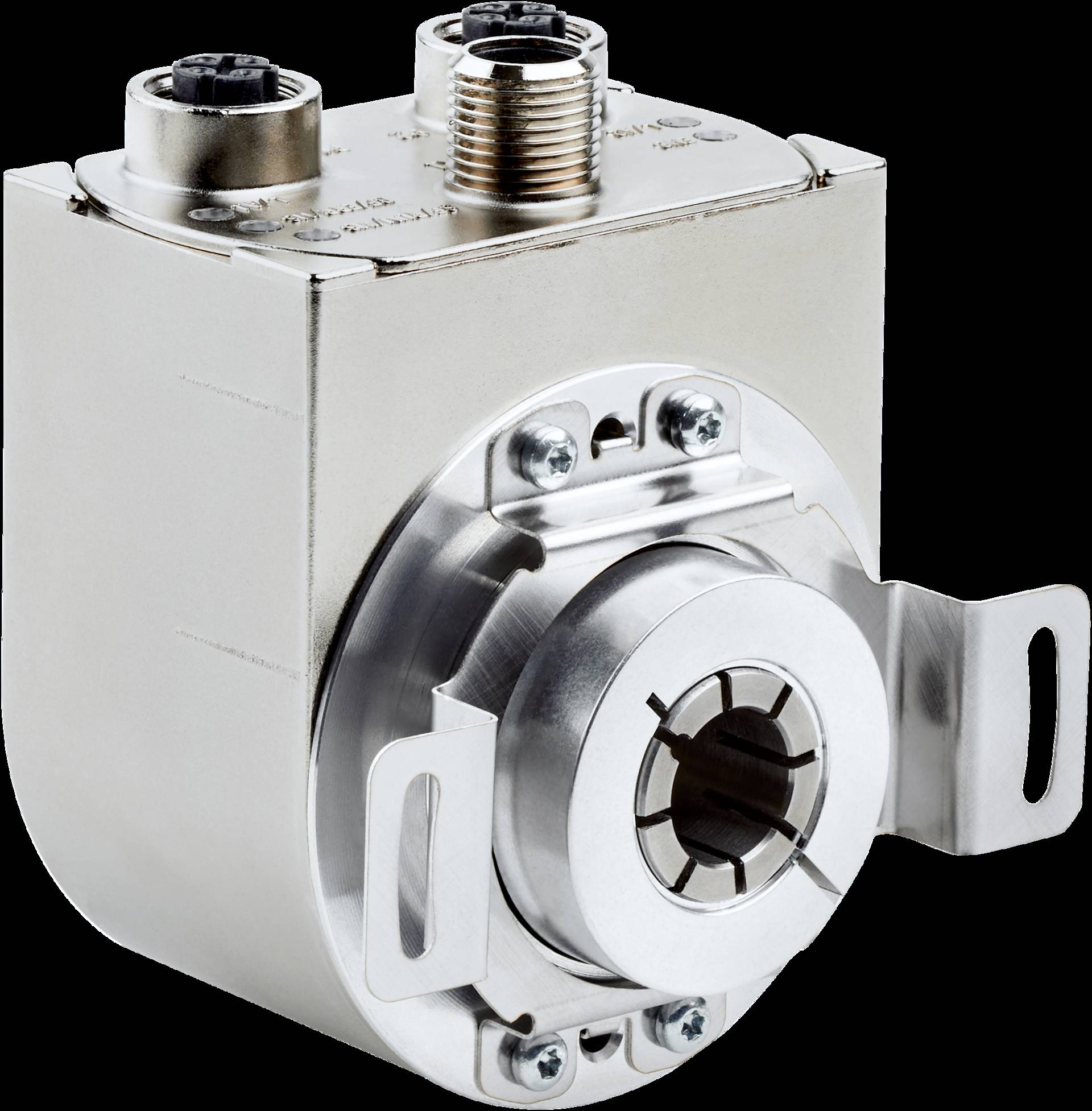

Absolute Multiturn Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Measuring | Low Installation Depth | by SICK
The ANS/ANM58 absolute multiturn encoder is designed for industrial automation and motion control, featuring a PROFINET interface and a precise 18-bit optical measuring system. With a compact design and low installation depth of just 39 mm, it's perfect for tight spaces and applications requiring synchronous process execution. Ideal for professionals seeking reliable performance in motion monitoring and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Multiturn Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Measuring | Low Installation Depth | by SICK
Brand: SICK
SKU: 1148733
Alternatively Known As: Absolute encoder, Multiturn encoder, PROFINET encoder, Optical encoder, Motion control encoder
Technical Specifications
- Multiturn version
- Mechanical design: blind hollow shaft
- Shaft diameter: 14 mm
- Shaft characteristic: Front clamp
- Connection: male and female connectors
- Direction of connection: radial
- Installation depth: 39 mm
- Interface: PROFINET with Encoder Profile version 4.2
- Measuring system: 18-bit optical singleturn and 16-bit mechanical multiturn
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.5 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration using TIA Portal or SICK Engineering Tool.
Applications
- Industrial automation and motion control
- Process control and movement monitoring
- Tight installation environments requiring compact encoders
- Systems requiring synchronous process execution via IRT
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables condition-based system maintenance reducing downtime and resource waste
- Supports efficient process control improving energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 absolute encoder is available now for immediate purchase. Ideal for industrial automation and motion control applications requiring high precision and compact design.
