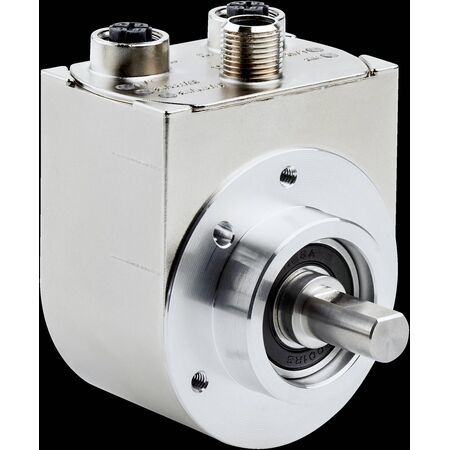

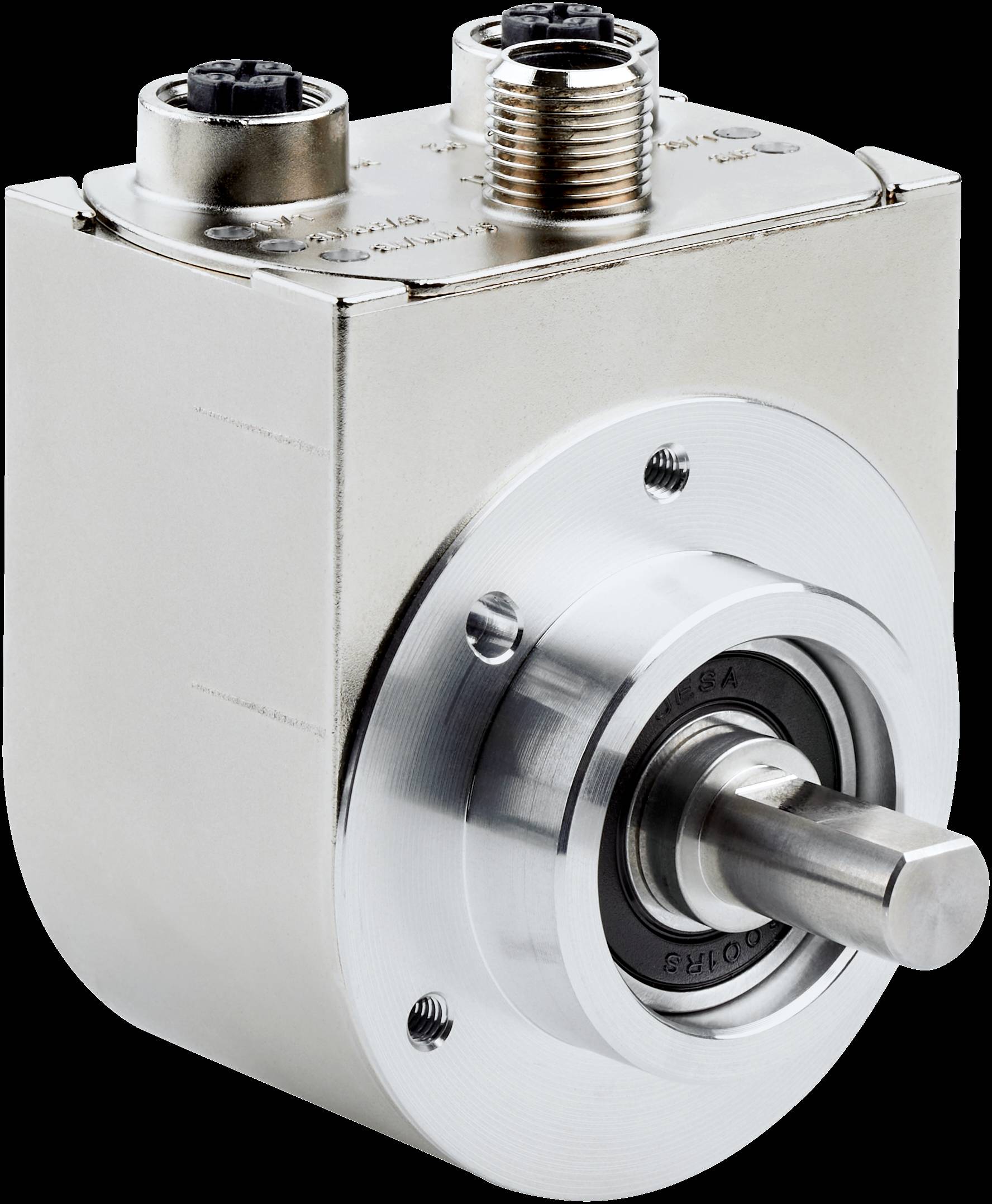

Absolute Multiturn Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Measuring | by SICK
The ANS/ANM58 absolute multiturn encoder is designed for industrial automation and motion control, featuring a compact design with a low installation depth of just 39 mm. With a precise 18-bit optical measuring system and PROFINET interface, it supports synchronous process execution via IRT, making it ideal for tight installation spaces and demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Multiturn Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Measuring | by SICK
Brand: SICK
SKU: 1146130
Alternatively Known As: Absolute encoder, Multiturn encoder, PROFINET encoder, Optical encoder, Motion control encoder
Technical Specifications
- Multiturn version
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Connection: Male and female connectors
- Direction of connection: Radial
- Installation depth: 39 mm
- Optical measuring system: 18-bit singleturn
- Mechanical multiturn stage: 16-bit
- Interface: PROFINET with Encoder Profile version 4.2
- Supports IRT (Isochronous Real Time) function
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.5 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and configuration using TIA Portal or SICK Engineering Tool.
Applications
- Industrial automation and motion control
- Process control and movement monitoring
- Tight installation spaces requiring compact encoders
- Systems requiring synchronous process execution via IRT
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables condition-based system maintenance reducing downtime and resource waste
- Supports efficient process control improving energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and motion control applications requiring high precision and compact design.
