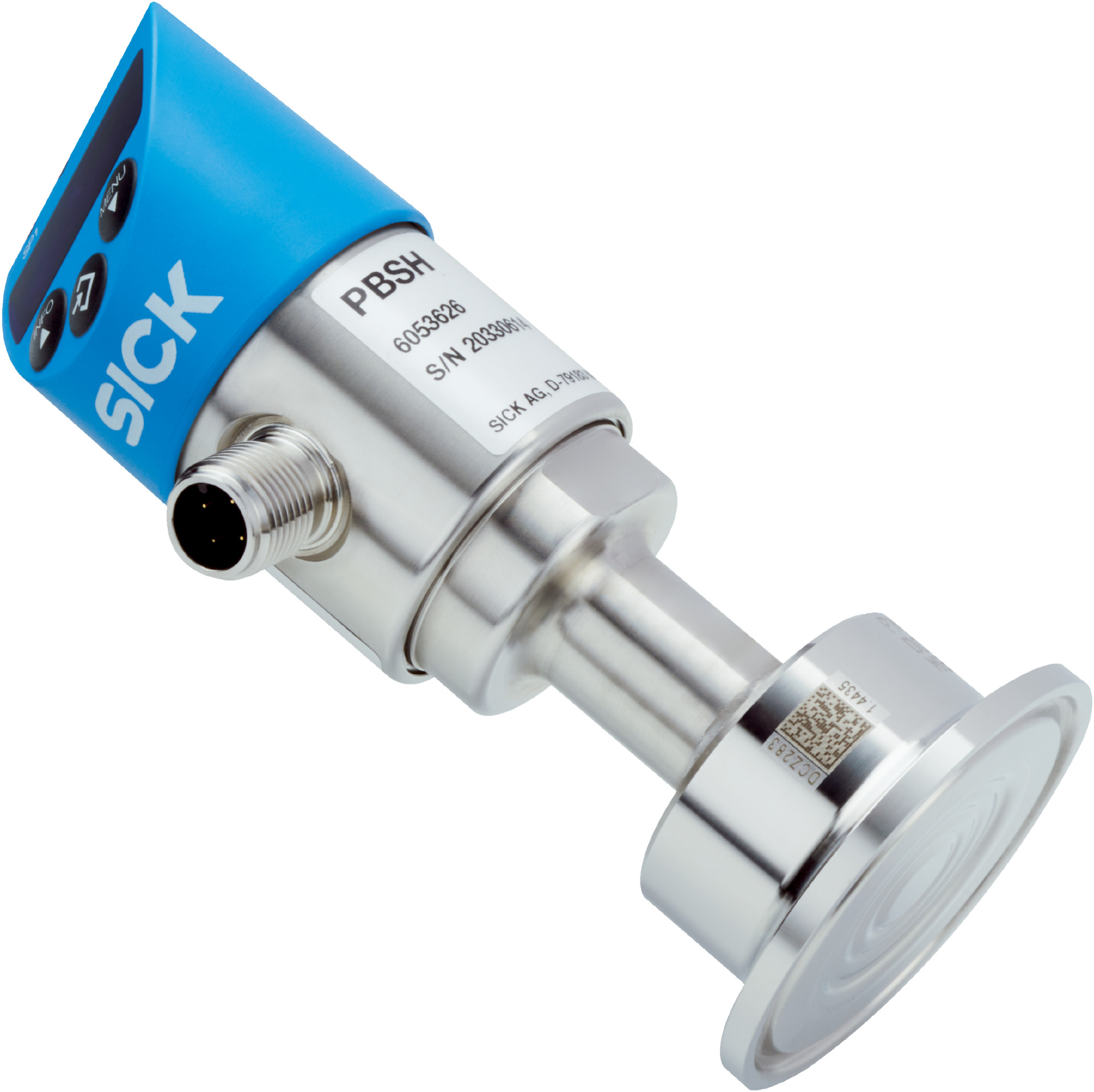

Absolute Pressure Sensor | 0 to 16 Bar | IO-Link Output | IP65 & IP67 Rated | by SICK
The Absolute Pressure Sensor measures pressure from 0 to 16 bar, making it ideal for industrial process control and monitoring. With IO-Link output and a high accuracy of ≤ ±1% of span, this sensor is perfect for applications in the food and pharmaceutical industries, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 16 bar absolute pressure
- Pressure type: Absolute pressure
- Process temperature range: -20 °C to +100 °C
- Output signal: IO-Link/PNP + 4 mA to 20 mA
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: 3 ms
- Communication interface: IO-Link V1.1
- Process connection: Clamp (DIN 32676) DN 40
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Enclosure rating: IP65 and IP67
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Long-term drift: ≤ ±0.2% of span per year
- Temperature coefficient: Typical zero point TC 0.7%/10K (0-20°C), span TC 0.1%/10K (0-80°C)
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 1.2 kg
Key Features
- Measures absolute pressure from 0 to 16 bar
- Output signals: IO-Link and PNP + 4 mA to 20 mA
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- High accuracy ≤ ±1% of span including non-linearity and hysteresis
- Overpressure safety 2-fold
- Process connection clamp DIN 32676 DN 40 made of 316L stainless steel
- Enclosure rating IP65 and IP67 for robust protection
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Communication interface IO-Link V1.1
- Internal transmission fluid is medical white oil compliant with FDA, USP, EP, and JP standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of absolute pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and pharmaceutical industry due to FDA compliant internal transmission fluid
- Automation systems requiring precise pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with max 70 mA operational current
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-AB016SD4S0NMA0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial process control, food and pharmaceutical applications requiring precise and reliable pressure measurement.
