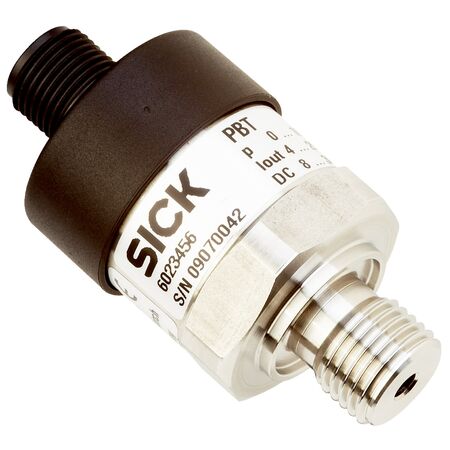

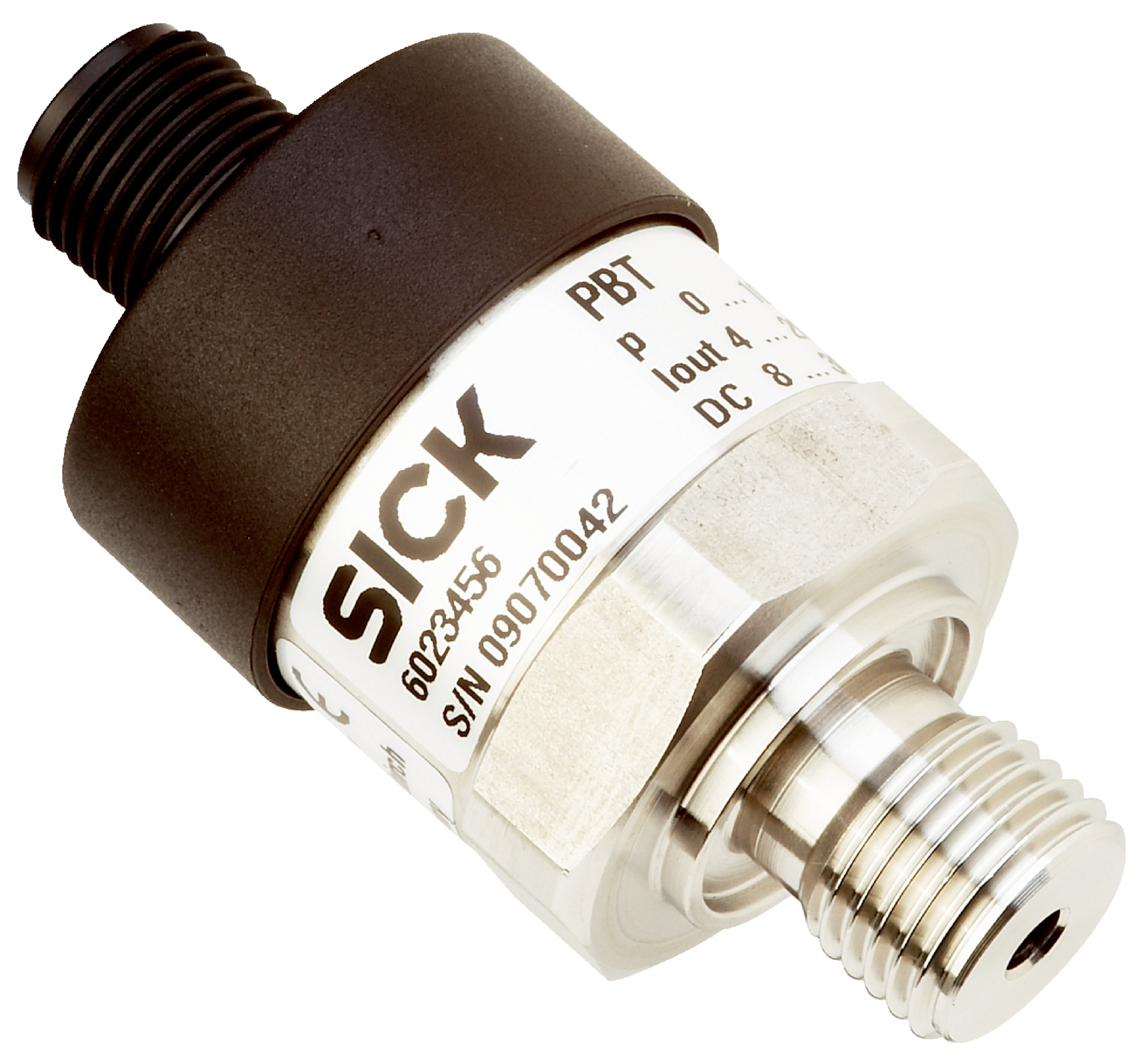

Absolute Pressure Transmitter | 0-1 Bar Range | IP67 Rated | High Accuracy | by SICK
The Absolute Pressure Transmitter measures pressure from 0 to 1 bar, making it ideal for industrial applications requiring precise monitoring of liquid and gaseous media. With an IP67 rated enclosure and high accuracy of ≤ ±0.5% span, this sensor ensures reliable performance in challenging environments, while its fast response time under 4 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar absolute pressure
- Pressure type: Absolute pressure
- Medium: Liquid and gaseous
- Process temperature: 0°C to +80°C
- Output signal: 0 V to 10 V, 3-wire
- Supply voltage: 14 V DC to 30 V DC
- Power consumption: Max 8 mA for voltage output
- Communication interface: None
- Process connection: G ⅜ B (EN 837)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil (for certain pressure ranges)
- Electrical safety: Overvoltage protection 32 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span including all errors
- Non-linearity: ≤ ±0.25% BFSL
- Response time: < 4 ms
- Long-term drift: ≤ 0.1% of span per year
- Shock load: 500 g
- Vibration load: 10 g standard, 20 g optional
- MTTF: 1,176 years
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures absolute pressure from 0 bar to 1 bar
- Output signal: 0 V to 10 V, 3-wire
- Process connection: G ⅜ B (EN 837) with stainless steel 316L wetted parts
- High accuracy with ≤ ±0.5% span including non-linearity and hysteresis
- Fast response time under 4 ms
- IP67 rated enclosure for robust protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Operating temperature range 0°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of absolute pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Environments with process temperatures from 0°C to 80°C
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste through extended product life
- Low power consumption minimizes energy use during operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PBT-AB1X0AG3SS0VMC0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
