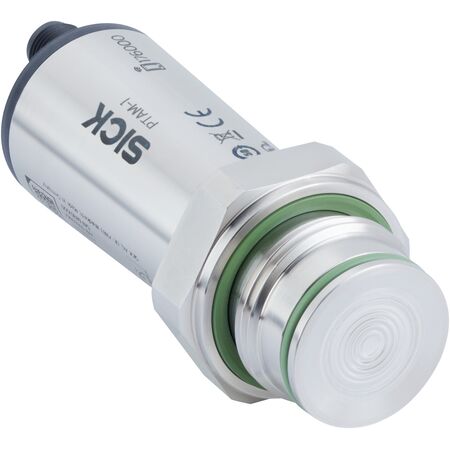

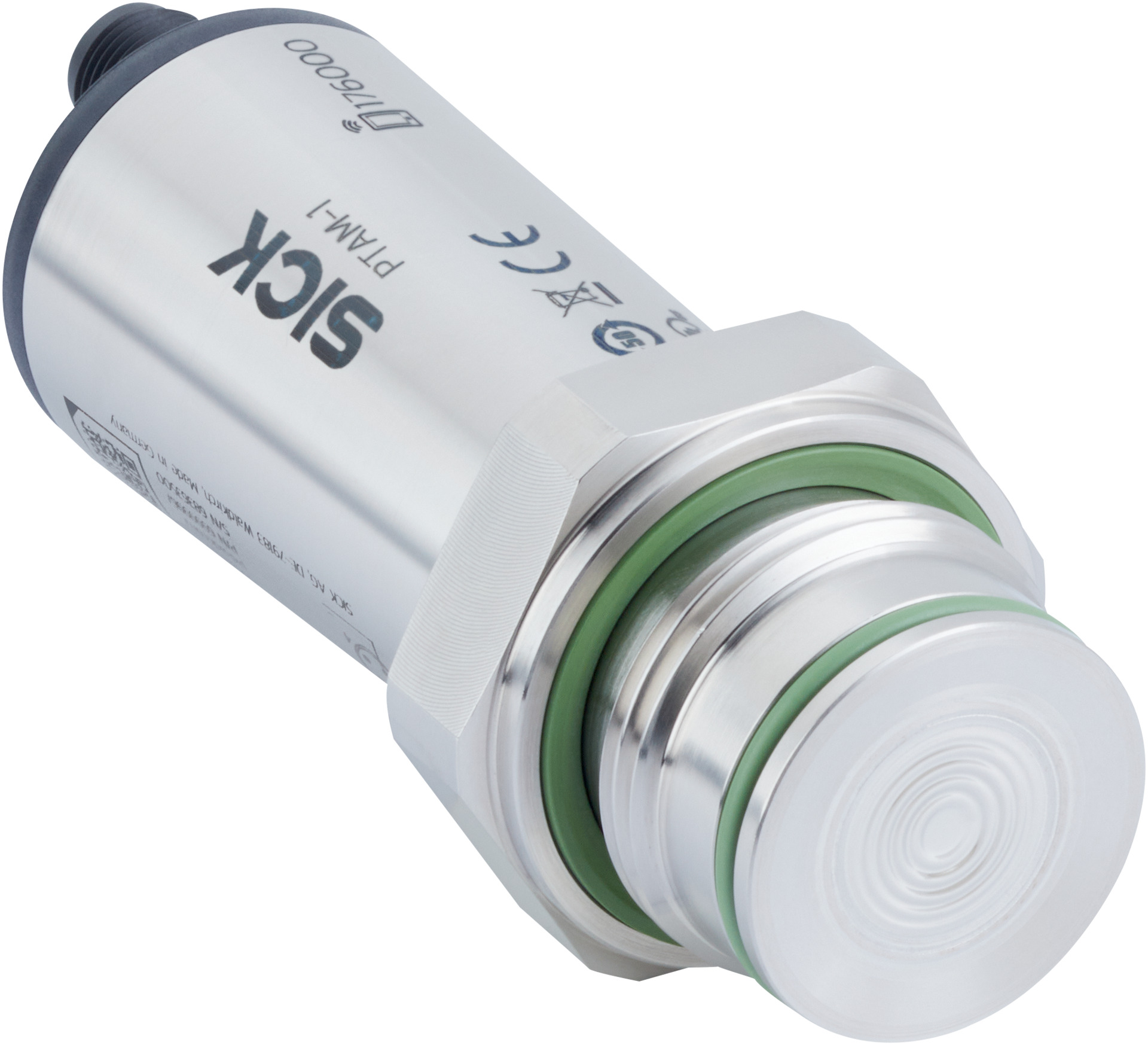

Absolute Pressure Transmitter | 0-10 Bar Range | 4-20mA Output | IP66/IP67/IP69 Rated | by SICK
The Absolute Pressure Transmitter is designed for precise measurement of absolute pressure in liquid and gaseous media, featuring a measuring range of 0 to 10 bar and a robust 4-20mA output signal. Ideal for industrial process control and monitoring, this sensor ensures high accuracy with a long-term drift of less than 0.35% per annum, making it perfect for environments requiring reliability and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Absolute pressure
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range: -20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ flush-mounted (DIN 3852-A)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.35% per annum
- Operating ambient temperature: -40 °C to +80 °C
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 40mm x 40mm
- Weight: 0.25 kg
Key Features
- Measures absolute pressure from 0 bar to 10 bar (0 psi to 145 psi)
- Ceramic pressure measuring cell for high durability
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ flush-mounted (DIN 3852-A) made of 316L stainless steel
- Housing made of stainless steel 316L and PBT/PC
- Supply voltage range: 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rating IP66, IP67, and IP69 for robust protection
- High accuracy of ≤ ±0.3% of span
- Fast response time ≤ 6 ms
- Long-term stability with less than 0.35% drift per annum
- Wide operating temperature range from -40 °C to +80 °C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of absolute pressure in liquid and gaseous media
- Industrial process control and monitoring
- Use in environments requiring high accuracy and reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 4-20 mA output signal
- Complies with RoHS directive ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAC-1XXXX9LA9MZX Absolute Pressure Sensor is available for immediate purchase, ideal for industrial process control and monitoring applications.
