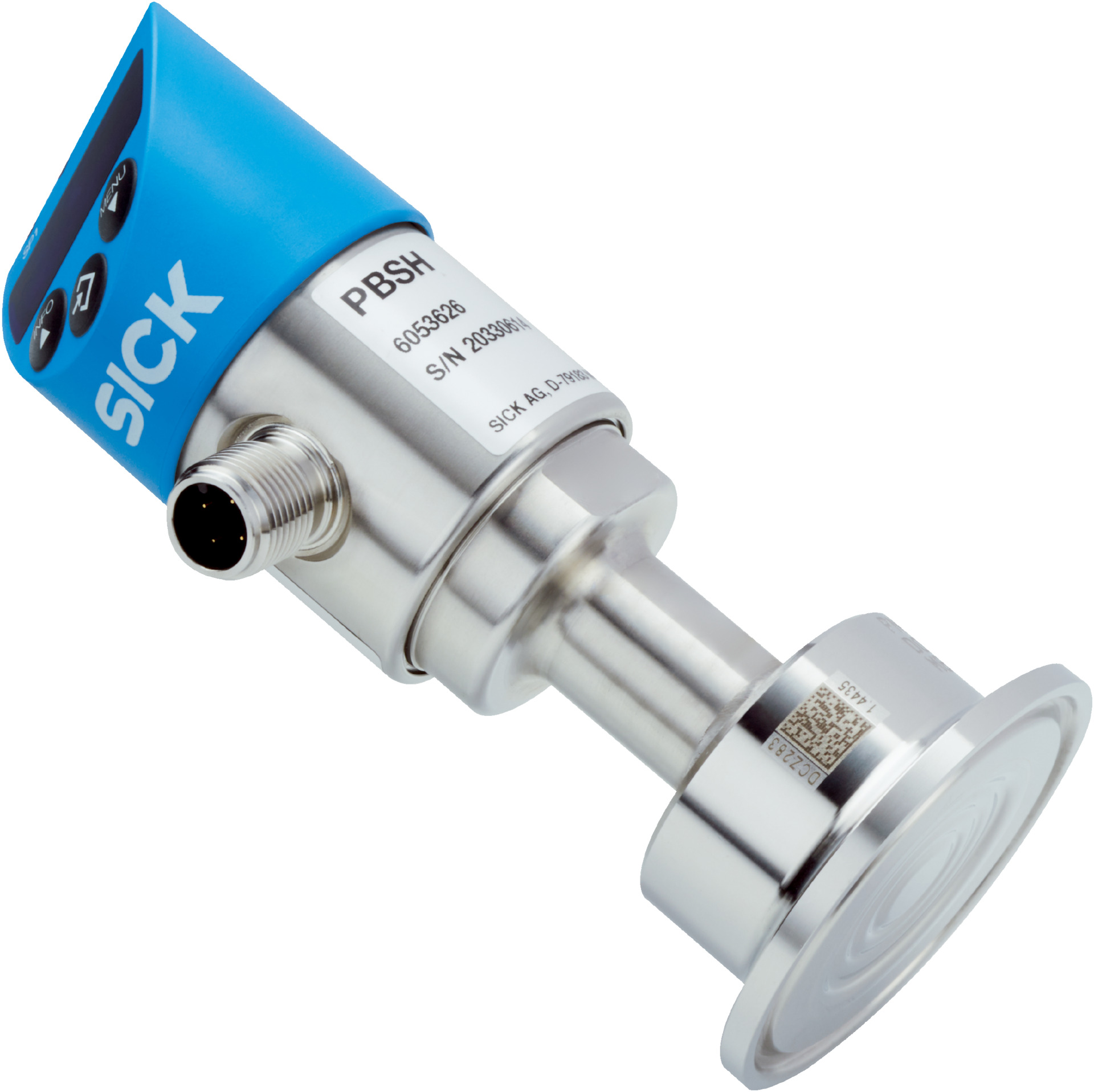

Absolute Pressure Transmitter | 0-25 Bar Range | FDA Compliant | IP65 & IP67 Rated | by SICK
The Absolute Pressure Transmitter is designed for precise measurement of absolute pressure in liquid and gaseous media, featuring a measuring range of 0 to 25 bar and a high accuracy of ≤ ±1% of span. Ideal for industrial process control, food, and pharmaceutical applications, this sensor boasts a robust stainless steel construction and an FDA compliant internal fluid, ensuring safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Absolute pressure
- Measuring range: 0 bar to 25 bar
- Overpressure safety: 2-fold
- Process temperature range: -20 °C to +100 °C
- Output signal: 1 x PNP + 4 mA to 20 mA
- Display: 14-segment LED, blue, 4 digits, height 9 mm, rotatable 180°
- Process connection: Clamp (DIN 32676) DN 32, 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA compliant
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Connection type: M12 round connector, 4-pin
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage 40 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span including all errors
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -20 °C to +80 °C
- Shock load: 50 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 1.2 kg
Key Features
- Measures absolute pressure in liquid and gaseous media
- Measuring range from 0 to 25 bar with 2-fold overpressure safety
- High accuracy of ≤ ±1% of span including non-linearity and hysteresis
- 14-segment blue LED display, 4 digits, electronically rotatable by 180°
- Rotatable housing for flexible installation orientation
- Process connection via clamp (DIN 32676) DN 32 made of 316L stainless steel
- Internal transmission fluid is medical white oil, FDA compliant
- Electrical connection via M12 round connector, 4-pin
- Protection class III with overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for robust environmental protection
- Fast response time of 3 ms and long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor mounting and electrical connections to ensure safety and accuracy.
Applications
- Industrial process control for liquid and gaseous media
- Food and beverage industry due to FDA compliant internal fluid
- Pharmaceutical and medical applications requiring hygienic process connections
- Pressure monitoring in manufacturing and automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA compliant internal fluid ensures safe use in food and pharmaceutical environments
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption with max 70 mA operational current
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBSH-AB025SD3S0BMA0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial, food, and pharmaceutical pressure monitoring applications.
