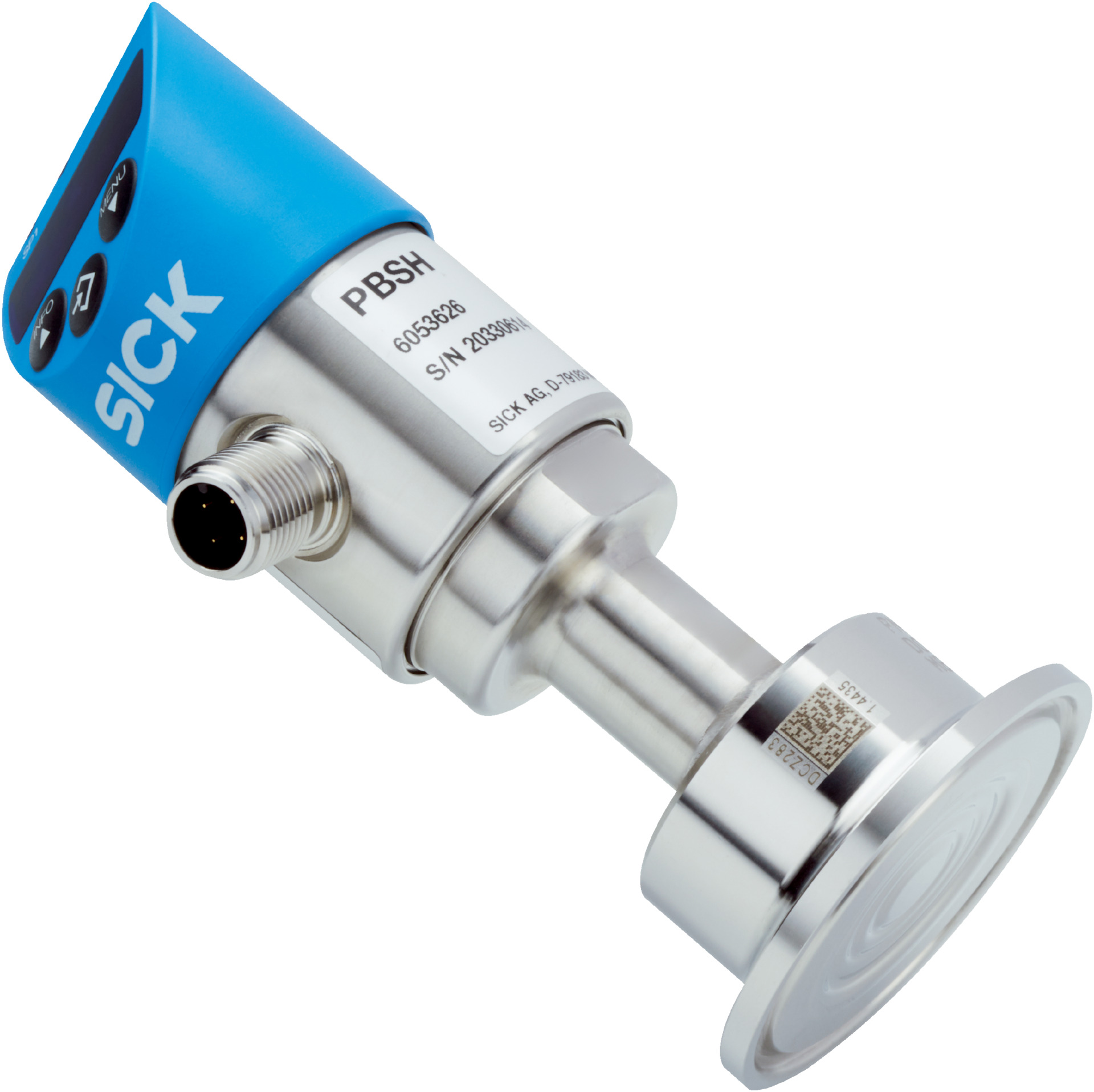

Absolute Pressure Transmitter PBSH-AB025SD4S0NMA0Z | 0 to 25 Bar | IO-Link & PNP Output | IP65/IP67 Rated | by SICK
The Absolute Pressure Transmitter PBSH-AB025SD4S0NMA0Z measures absolute pressure from 0 to 25 bar, making it ideal for industrial process control and monitoring. With IO-Link and PNP output signals, it ensures high accuracy and reliability, featuring a robust stainless steel construction and IP65/IP67 enclosure ratings for durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar absolute pressure
- Pressure type: Absolute pressure
- Process temperature range: -20 °C to +100 °C
- Output signal: IO-Link and PNP with 4 mA to 20 mA
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Accuracy: ≤ ±1% of span including all errors
- Non-linearity: ≤ ±0.5% BFSL
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% per year
- Communication interface: IO-Link V1.1
- Process connection: Clamp (DIN 32676) DN 40 stainless steel 316L
- Housing material: Stainless steel 304 lower body, PC+ABS plastic head
- Enclosure rating: IP65 and IP67
- Electrical safety: Protection class III, overvoltage and short-circuit protection
- Display: 14-segment blue LED, 4 digits, electronically rotatable
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 1.2 kg
Key Features
- Measures absolute pressure from 0 to 25 bar
- Output signals: IO-Link and PNP with 4 mA to 20 mA current output
- Rotatable housing with 330° display rotation and 320° housing rotation
- 14-segment blue LED display with 4 digits and adjustable update rate
- High accuracy with ≤ ±1% of span and non-linearity ≤ ±0.5%
- Robust stainless steel 316L process connection and housing materials
- Protection class III with IP65 and IP67 enclosure ratings
- Overpressure safety 2-fold and short-circuit, reverse polarity protection
- Communication interface IO-Link V1.1
- Medical white oil internal transmission fluid compliant with FDA, USP, EP, JP standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of absolute pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and pharmaceutical industry applications due to FDA compliant internal fluid
- Automation systems requiring precise pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- Low power consumption with max 70 mA operational current
- Compliant with RoHS and EU environmental directives
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-AB025SD4S0NMA0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial process control and automation requiring precise pressure measurement.
