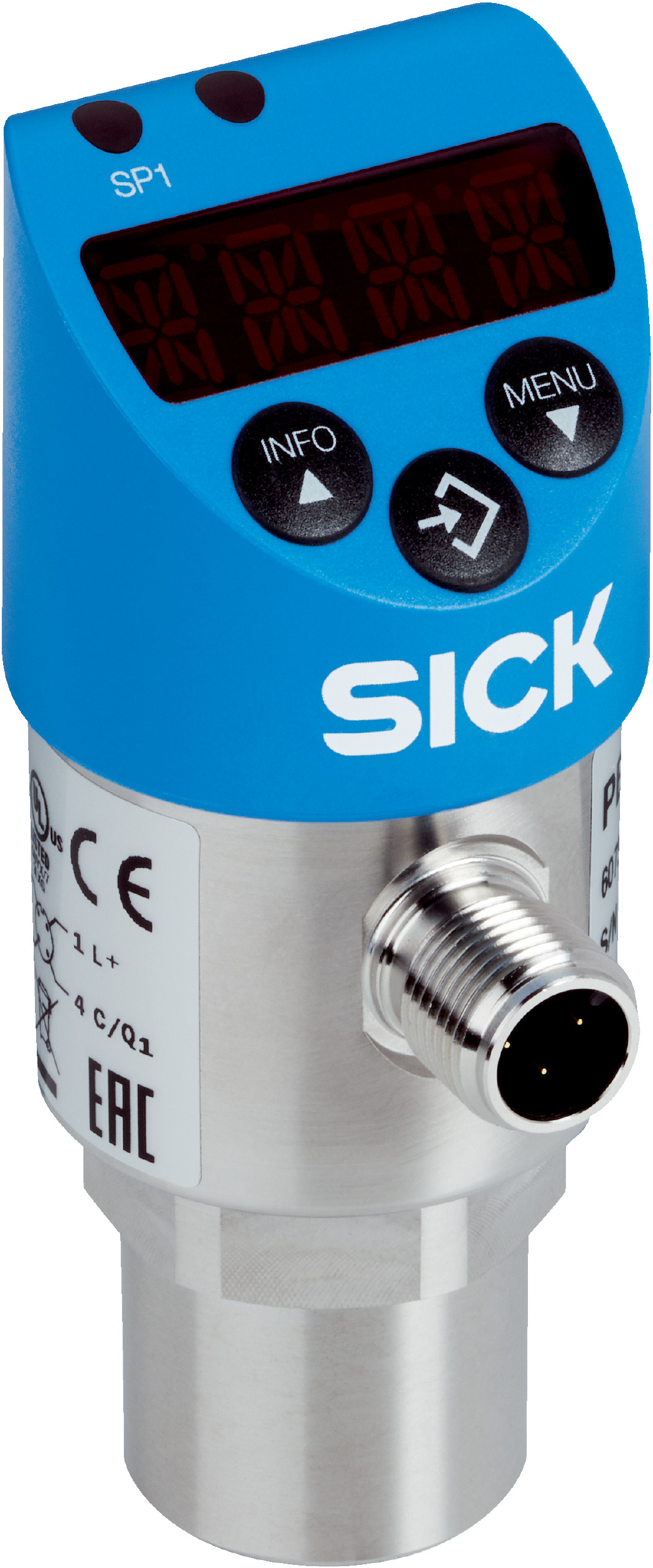

Absolute Pressure Transmitter | 0 to 0.6 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
The Absolute Pressure Transmitter measures absolute pressure in both liquid and gaseous media, with a pressure range from 0 to 0.6 bar. Ideal for industrial process control and automation, it features a durable stainless steel housing, a 14-segment red LED display, and multiple output signals including IO-Link. With an IP67 rating for dust and water protection, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 70mm x 100mm x 40mm
- Weight: 0.22 kg
Key Features
- Measures absolute pressure in liquid and gaseous media
- Pressure range from 0 bar to 0.6 bar (0 psi to 9 psi)
- Process temperature range from -20 °C to +85 °C
- Output signals include IO-Link, PNP, and NPN
- Rotatable housing with 330° display rotation and 320° housing rotation
- 14-segment red LED display with 4 digits and adjustable update rate
- Communication via IO-Link V1.1
- Process connection G ¼ female (EN 837)
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 304 and plastic (PC + ABS)
- Supply voltage 15 V DC to 35 V DC
- Power consumption 45 mA to 70 mA depending on output signal
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- Long service life with minimum 100 million load cycles
- High accuracy with ≤ ±0.5% of span and low non-linearity
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation
- Use in environments requiring absolute pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption contributes to energy efficiency
- Compliance with RoHS directive ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

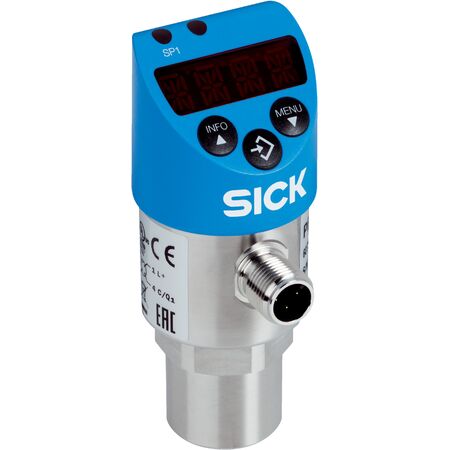

The SICK PBS2-ABX60SG2SS0LMA0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial process control and automation applications.
