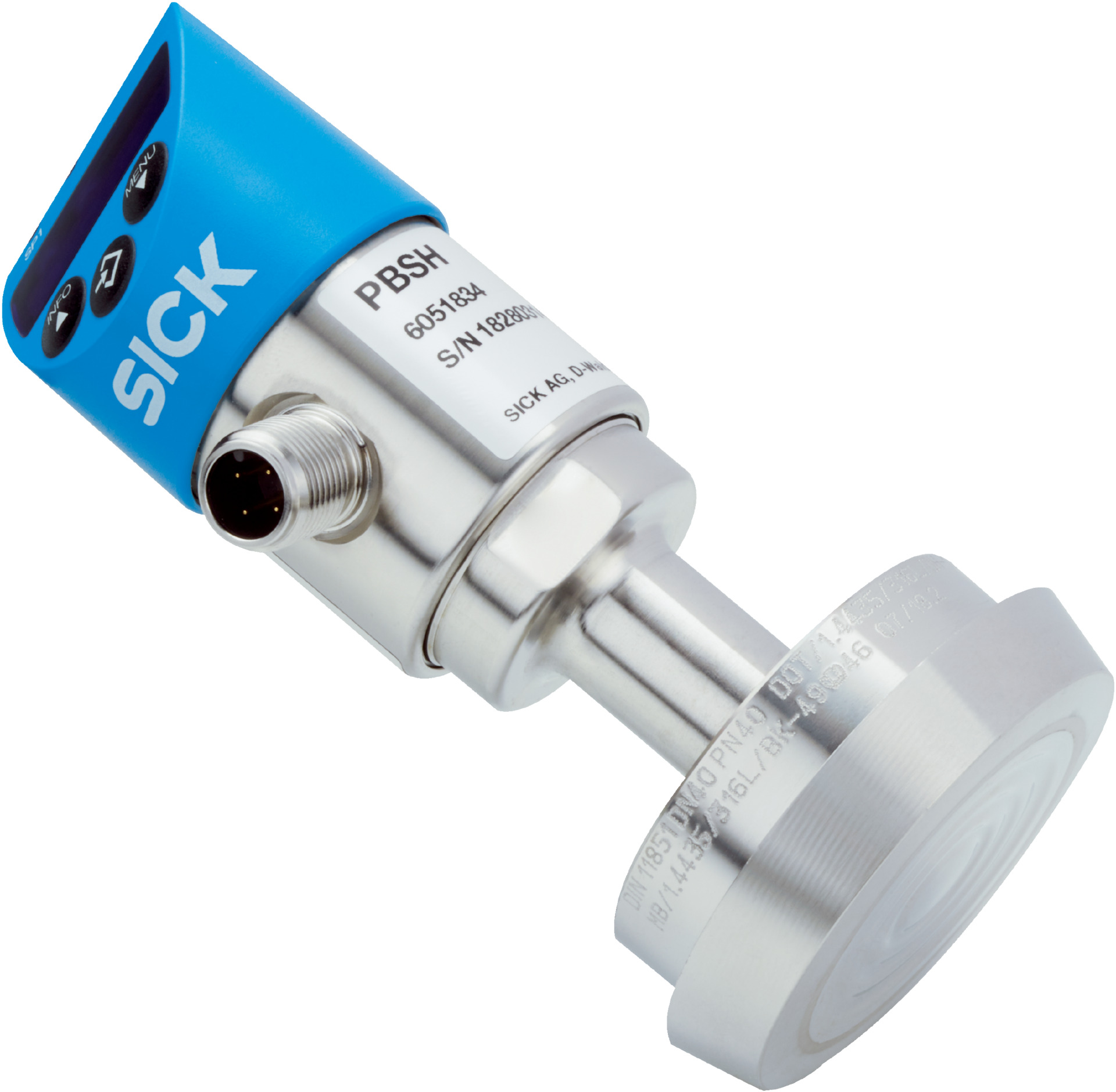

Absolute Pressure Transmitter | 0 to 10 Bar | FDA Compliant | IP65 & IP67 Rated | by SICK
The Absolute Pressure Transmitter measures pressure from 0 to 10 bar, making it ideal for industrial process control and monitoring. With a robust design featuring FDA compliant materials and a rotatable 14-segment blue LED display, it ensures high accuracy and reliability in food and pharmaceutical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar absolute pressure
- Pressure type: Absolute
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process temperature range: -20 °C to +100 °C
- Ambient operating temperature: -20 °C to +80 °C
- Storage temperature: -20 °C to +80 °C
- Maximum ohmic load RA: ≤ 0.5 kΩ for 4 mA to 20 mA output
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Communication interface: None
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA compliant
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Connection type: M12 round connector, 4-pin
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Isolation voltage: 500 V DC
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span including all errors
- Non-linearity: ≤ ±0.5% BFSL
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% per year
- Shock load: 50 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 1.2 kg
Key Features
- Measures absolute pressure from 0 to 10 bar with 2-fold overpressure safety
- Output signal: 1 x PNP + 4 mA to 20 mA
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel with medical white oil compliant to FDA and pharmacopeia standards
- Supply voltage range: 15 V DC to 35 V DC with max. 70 mA power consumption
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for robust environmental protection
- High accuracy ≤ ±1% of span and fast response time of 3 ms
- Long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of absolute pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and pharmaceutical industry applications due to FDA compliant materials
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption minimizes energy use
- Compliant with food-grade materials supporting hygienic and safe industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-AB010S54S0BMA0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial process control, food and pharmaceutical applications requiring precise and reliable pressure measurement.
