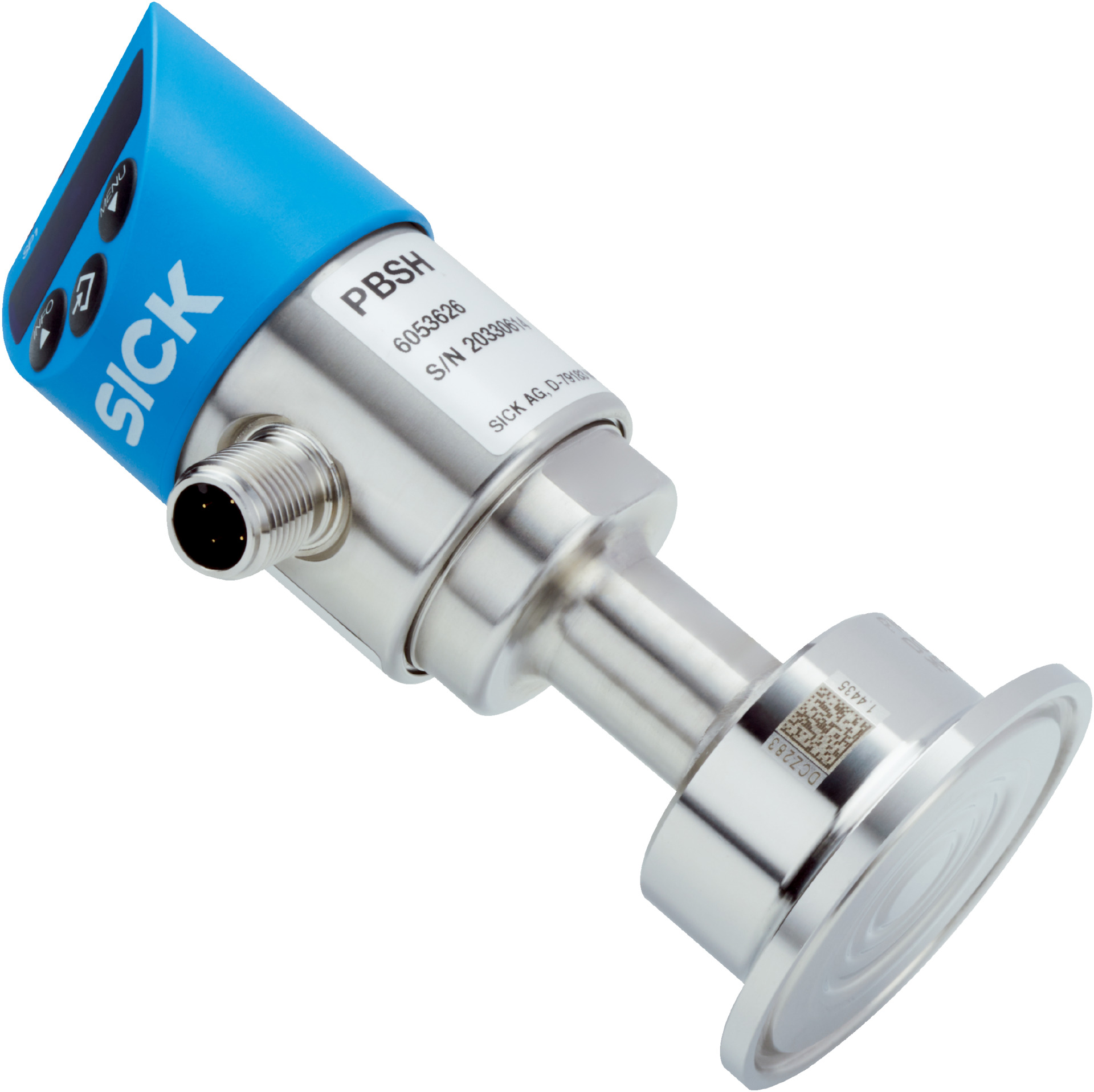

Absolute Pressure Transmitter | 0 to 2.5 Bar | IP65/IP67 Rated | FDA Compliant | by SICK
The Absolute Pressure Transmitter measures pressure from 0 to 2.5 bar, making it ideal for industrial process control and food applications. With a fast response time of 3 ms and an IP65/IP67 rating, this sensor ensures reliable performance in demanding environments. Its FDA-compliant internal fluid and durable stainless steel construction make it perfect for sensitive applications, providing both safety and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 2.5 bar absolute pressure
- Pressure type: Absolute pressure
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process temperature range: -20 °C to +100 °C
- Ambient operating temperature: -20 °C to +80 °C
- Storage temperature: -20 °C to +80 °C
- Accuracy: ≤ ±1% of span including all errors
- Non-linearity: ≤ ±0.5% BFSL
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% per year
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical protection: Overvoltage 40 V DC, short-circuit, reverse polarity
- Enclosure rating: IP65 and IP67
- Process connection: Clamp DN 32 stainless steel 316L
- Housing material: Stainless steel 304, PC + ABS plastic
- Display: 14-segment blue LED, 4 digits, height 9 mm, rotatable 180°
- Dimensions (H x L x W): 120mm x 60mm x 80mm
- Weight: 1.2 kg
Key Features
- Measures absolute pressure from 0 to 2.5 bar with 2-fold overpressure safety
- Output signal: 1 x PNP + 4 mA to 20 mA
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- Process connection: Clamp (DIN 32676) DN 32 made of 316L stainless steel
- Internal transmission fluid is medical white oil, FDA compliant
- Housing made of stainless steel 304 and PC+ABS plastic with TPE-E buttons
- Supply voltage range: 15 V DC to 35 V DC with max power consumption 70 mA
- Electrical safety features include overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for dust and water resistance
- High accuracy ≤ ±1% of span and fast response time of 3 ms
- Long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sealing and electrical connection according to safety standards.
Applications
- Measurement of absolute pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and pharmaceutical industries due to FDA-compliant internal fluid
- Environments requiring robust IP65/IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption minimizes energy use
- FDA-compliant internal fluid ensures safe use in food and pharmaceutical environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-AB2X5SD3S0BMA0Z Absolute Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise and reliable pressure measurement.
