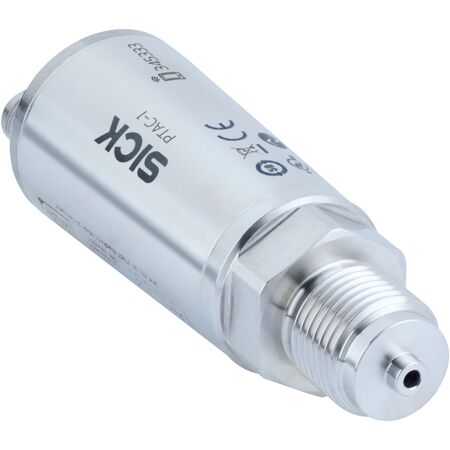

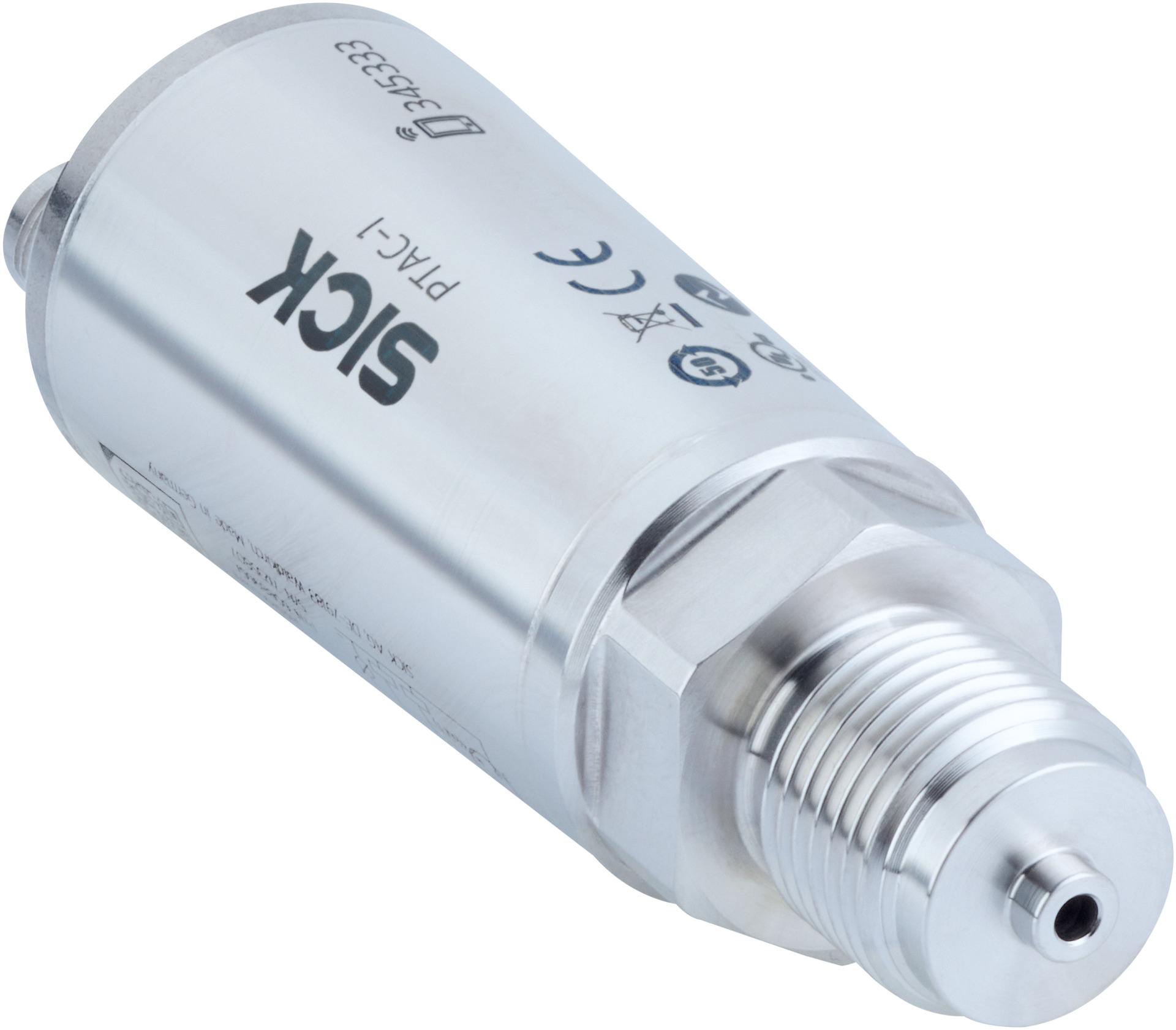

Absolute Pressure Transmitter | Bluetooth Communication | Ceramic Pressure Measuring Cell | IP66/IP67/IP69 Rated | by SICK
The Absolute Pressure Transmitter is designed for precise pressure measurement in liquid and gaseous media, featuring a ceramic pressure measuring cell and Bluetooth communication for easy data access. With an accuracy of ≤ ±0.3% of span and robust stainless steel housing, it's perfect for industrial process monitoring and automation applications, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Absolute pressure
- Pressure unit: bar, psi
- Measuring chamber type: Ceramic pressure measuring cell
- Measuring range: 0 bar to 1 bar (0 psi to 14.5 psi)
- Process temperature range: –20 °C to +130 °C
- Maximum ohmic load RA: 370 Ω at 12 V DC, 630 Ω at 18 V DC
- Output signal: 4 mA to 20 mA, 2-wire
- Communication interface: Bluetooth
- Process connection: G ½ B (EN 837)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.15% per annum
- Operating ambient temperature: –40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures absolute pressure in liquid and gaseous media
- Ceramic pressure measuring cell for reliable performance
- Bluetooth communication interface for easy data access
- High accuracy of ≤ ±0.3% of the span
- Fast response time ≤ 6 ms
- Robust stainless steel 316L housing with IP66, IP67, and IP69 protection ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Wide operating temperature range from –40 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process monitoring for liquid and gaseous media
- Pressure measurement in manufacturing and automation
- Use in environments requiring high accuracy and durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20 mA output
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PTAC-1XXXXDUAMEZX Absolute Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
