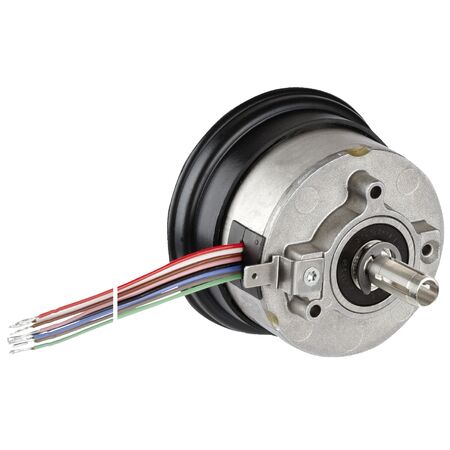

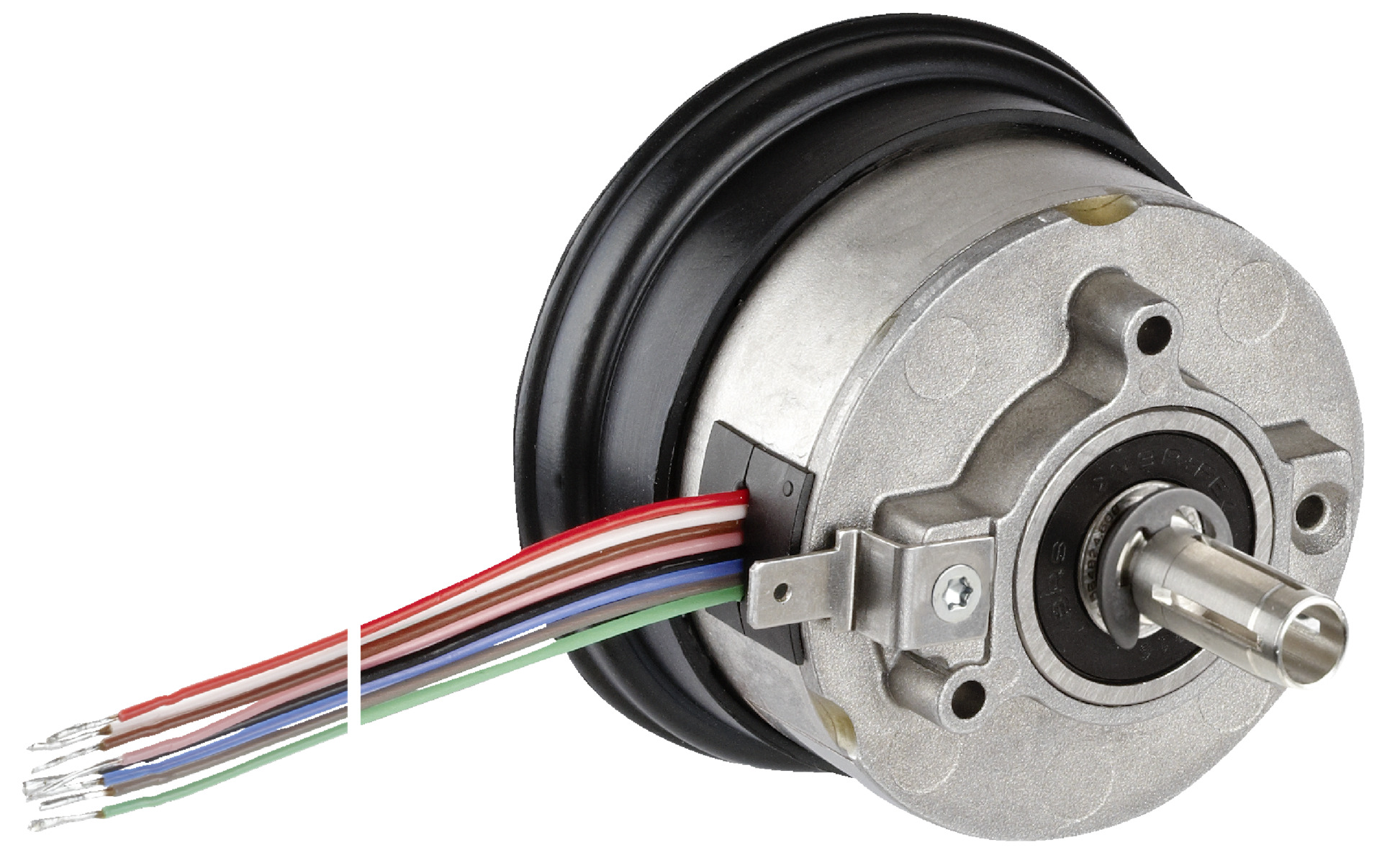

Absolute Rotary Encoder SRS50-HAV0-K21 | 32,768 Steps | HIPERFACE Interface | IP40 Rated | by SICK
The SRS50-HAV0-K21 absolute rotary encoder delivers precise position measurement with 32,768 total steps and 1,024 sine/cosine periods per revolution. Designed for industrial automation and servo motor feedback systems, it features a robust plug-in shaft and operates within a temperature range of -30 °C to +115 °C. With high system accuracy and an IP40 enclosure rating, this encoder is perfect for demanding applications in robotics and motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRS50-HAV0-K21 | 32,768 Steps | HIPERFACE Interface | IP40 Rated | by SICK
Brand: SICK
SKU: 1037061
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK encoder SRS50, rotary position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: Typically ±45 ″
- Differential non-linearity: ±7 ″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Available memory area: 128 Byte
- System accuracy: ±52 ″
- Type of code: Binary
- Code sequence: Increasing clockwise when viewed from direction A
- Communication interface: HIPERFACE®
- Connection type: 8-wire radial cable, 0.2 m length
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft version: Plug-in shaft
- Flange type: Rubber support
- Moment of inertia of rotor: 10 gcm²
- Operating torque: 0.2 Ncm
- Start up torque: +0.4 Ncm
- Permissible static movement: ±0.5 mm radial, ±0.75 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –30 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with 32,768 total steps and 1,024 sine/cosine periods per revolution
- High system accuracy of ±52 ″ and integral non-linearity typically ±45 ″
- Operating speed up to 6,000 min⁻¹ for reliable absolute position output
- Binary code output with HIPERFACE® communication interface
- Robust plug-in shaft with rubber support flange
- Operating temperature range from –30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Mean time to dangerous failure (MTTFD) of 235 years according to EN ISO 13849
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control applications
- Machine tool positioning and control
