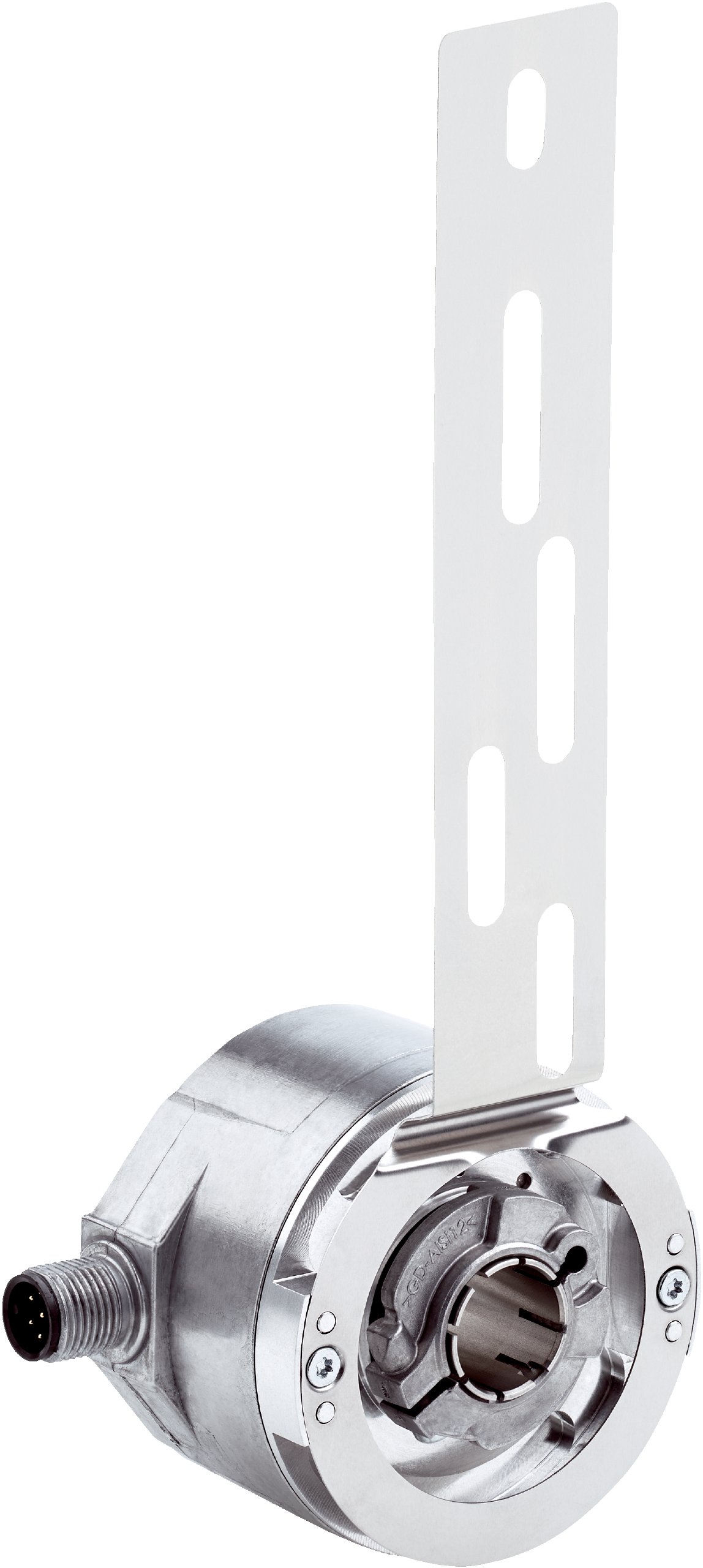

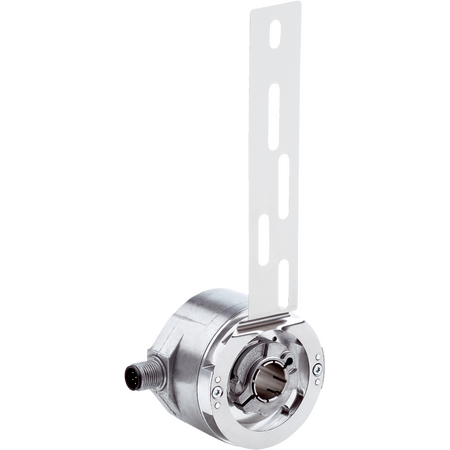

Absolute Rotary Encoder SFS60-HNBT2K02 | 32,768 Steps | IP65 Rated | High Accuracy | by SICK
The Absolute Rotary Encoder SFS60-HNBT2K02 offers 32,768 total steps and 1,024 sine/cosine periods per revolution, making it ideal for industrial automation and robotics. With a robust aluminum housing and IP65 rating, it withstands harsh environments while providing high accuracy of ±52″. Perfect for precise shaft position measurement in motion control systems and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, shaft position sensor, absolute shaft encoder
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: Typically ±45″
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Available memory area: 1,792 Byte
- System accuracy: ±52″
- Type of code: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: < 80 mA (no load)
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 1/2 inch
- Shaft material: Stainless steel
- Flange material: Zinc diecast
- Housing material: Aluminum die cast
- Moment of inertia of rotor: 40 gcm²
- Operating torque: 0.6 Ncm at +20 °C
- Start up torque: +0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –40 °C to +115 °C
- Storage temperature range: –40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating connector
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Absolute encoder with 32,768 total steps and 1,024 sine/cosine periods per revolution
- High system accuracy of ±52″ and integral non-linearity typically ±45″
- Operating speed up to 6,000 min⁻¹ for reliable absolute position output
- Robust aluminum die cast housing with IP65 rating for harsh environments
- Through hollow shaft design with stainless steel shaft and zinc diecast flange
- Low current consumption under 80 mA without load
- Communication via HIPERFACE® interface with binary code output
- Wide operating temperature range from –40 °C to +115 °C
- High resistance to shocks (100 g) and vibrations (20 g, 10 Hz to 2,000 Hz)
- Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise shaft position measurement
- Robotics requiring high accuracy angular position feedback
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFS60-HNBT2K02 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
