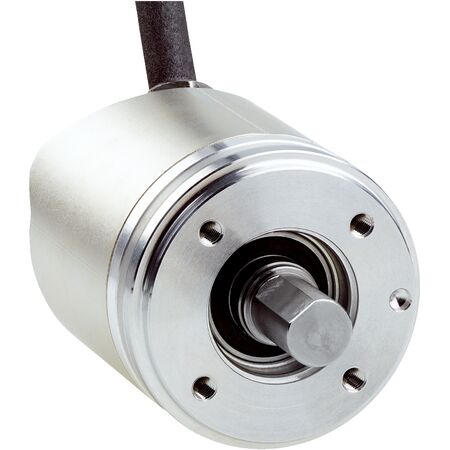

Absolute Rotary Encoder AHS36B-S1AK003600 | 3600 Steps/Rev | IP65 Rated | by SICK
The Absolute Rotary Encoder AHS36B-S1AK003600 offers high precision with 3,600 steps per revolution, making it ideal for industrial automation and robotics. With an IP65 rated enclosure, it ensures protection against dust and water, while its robust mechanical design and low power consumption enhance reliability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 230 years (EN ISO 13849-1)
- Number of steps per revolution: 3,600
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.25° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating temperature range: –20 °C to +70 °C
- Enclosure rating: IP65
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 3,600 steps per revolution
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for protection against dust and water
- Reverse polarity protection for electrical safety
- Low power consumption (≤ 1.5 W)
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10^8 revolutions
- Configurable code sequence (CW/CCW) via cable
- Fast initialization time of 100 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high resolution and repeatability
- Servo motor feedback systems
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable materials and long bearing life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36B-S1AK003600 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position feedback applications.
