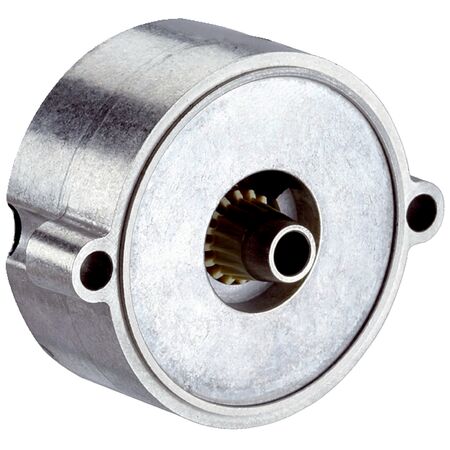

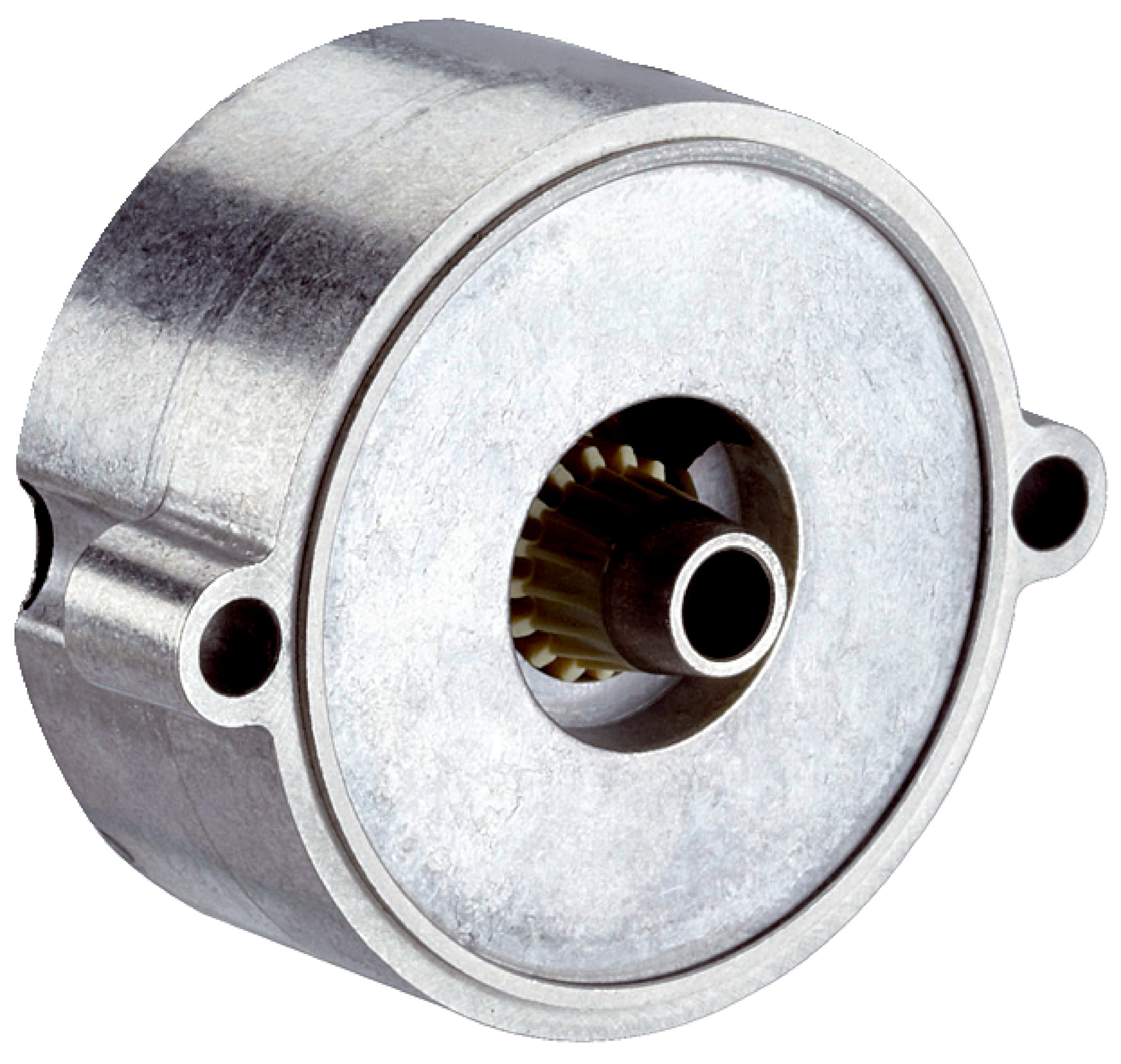

Absolute Rotary Encoder SEL37-HFB0-K02 | 4,096 Revolutions | HIPERFACE Communication | High System Accuracy | by SICK
The Absolute Rotary Encoder SEL37-HFB0-K02 is designed for precise position measurement in industrial automation and robotics. With a remarkable 4,096 absolute revolutions and a high system accuracy of ±432 ″, it ensures reliable feedback for machine tools and safety-related systems. Its robust design and low power consumption make it ideal for demanding environments, while the HIPERFACE communication interface enhances connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SEL37-HFB0-K02 | 4,096 Revolutions | HIPERFACE Communication | High System Accuracy | by SICK
Brand: SICK
SKU: 1037379
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, rotary position sensor, shaft encoder
Technical Specifications
- MTTFD: 275 years (EN ISO 13849)
- Sine/cosine periods per revolution: 16
- Number of absolute ascertainable revolutions: 4,096
- Maximum steps per revolution: 512 via RS485
- Total number of steps: 2,097,152
- Measuring step: 20 ″ for interpolation with 12 bits
- Integral non-linearity: ±288 ″
- Differential non-linearity: ±144 ″
- Operating speed (absolute position): ≤6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±432 ″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: Male connector, 8-pin, radial
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: <50 mA
- Shaft version: Tapered shaft
- Moment of inertia of rotor: 1 gcm²
- Max operating speed: 12,000 min⁻¹
- Angular acceleration: ≤500,000 rad/s²
- Permissible radial shaft movement: ±0.15 mm
- Permissible axial shaft movement: ±0.3 mm
- Operating temperature range: –20 °C to +115 °C
- Storage temperature range: –50 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP20
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- High system accuracy of ±432 ″
- Absolute position measurement with 4,096 revolutions and 2,097,152 total steps
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- HIPERFACE® communication interface
- Tapered shaft design with permissible radial and axial shaft movement
- Robust electronics with low current consumption (<50 mA)
- Wide operating temperature range from –20 °C to +115 °C
- IP20 enclosure rating with mating plug inserted
- High resistance to shocks (100 g) and vibrations (50 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high-resolution rotary encoders
- Safety-related systems requiring reliable position data
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK SEL37-HFB0-K02 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise rotary position feedback.
