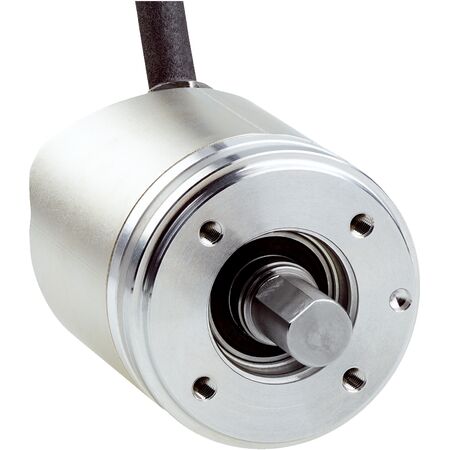

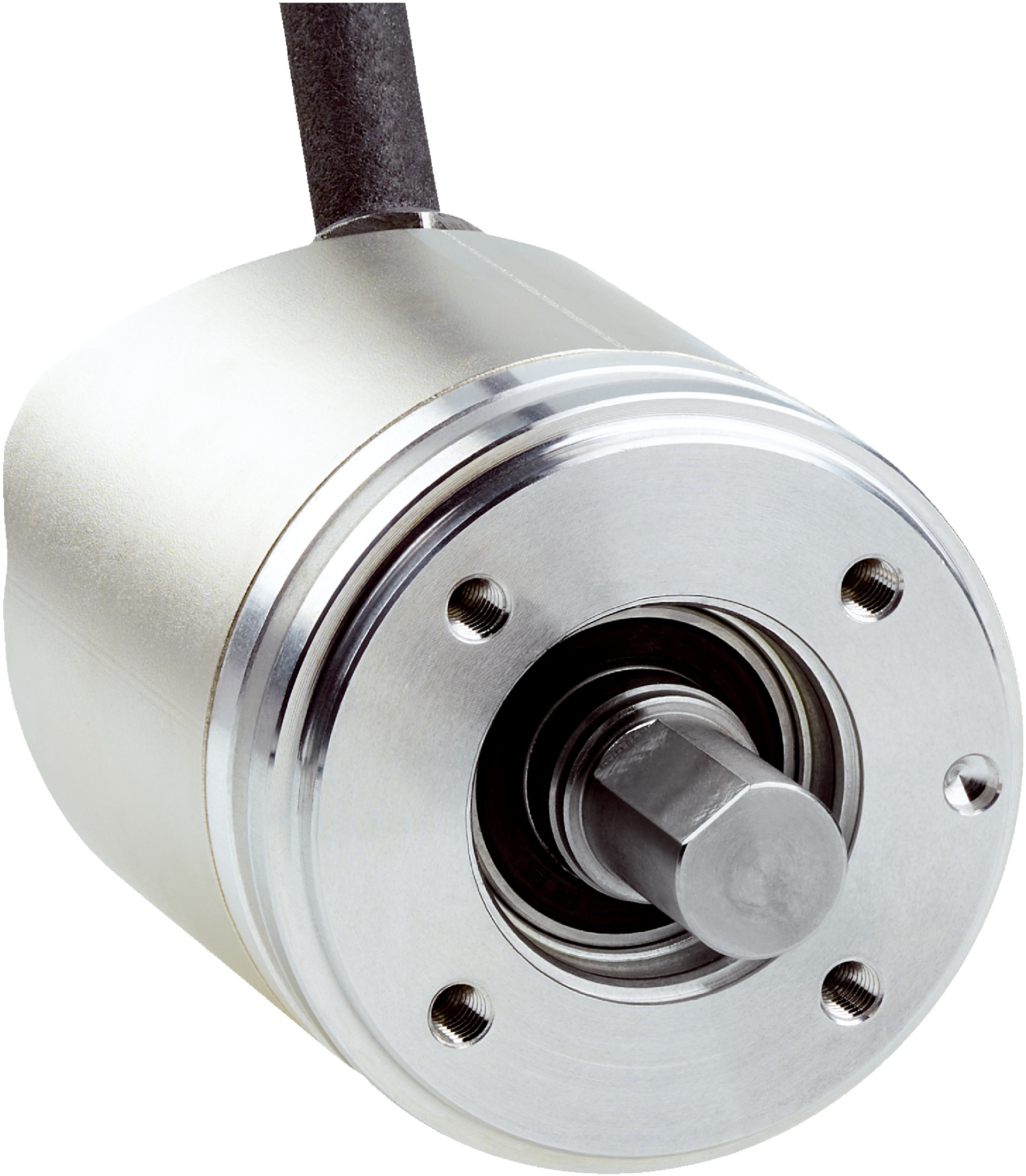

Absolute Rotary Encoder AHS36A-S1AJ004096 | 4096 Steps/Rev | IP66 & IP67 Rated | by SICK
The Absolute Rotary Encoder AHS36A-S1AJ004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With an IP66 and IP67 rated enclosure, it withstands harsh environments while providing reliable position measurement. Designed for longevity, it features a robust mechanical design and a wide operating temperature range from -40°C to +100°C, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution (12 bit)
- Error limit: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Operating torque: < 1 Ncm at 20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP66 and IP67
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust mechanical design with solid shaft and servo flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Communication via SSI interface with Gray code output
- High reliability with MTTFD of 230 years according to EN ISO 13849-1
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics and servo motor feedback
- Machine tool control systems
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHS36A-S1AJ004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
