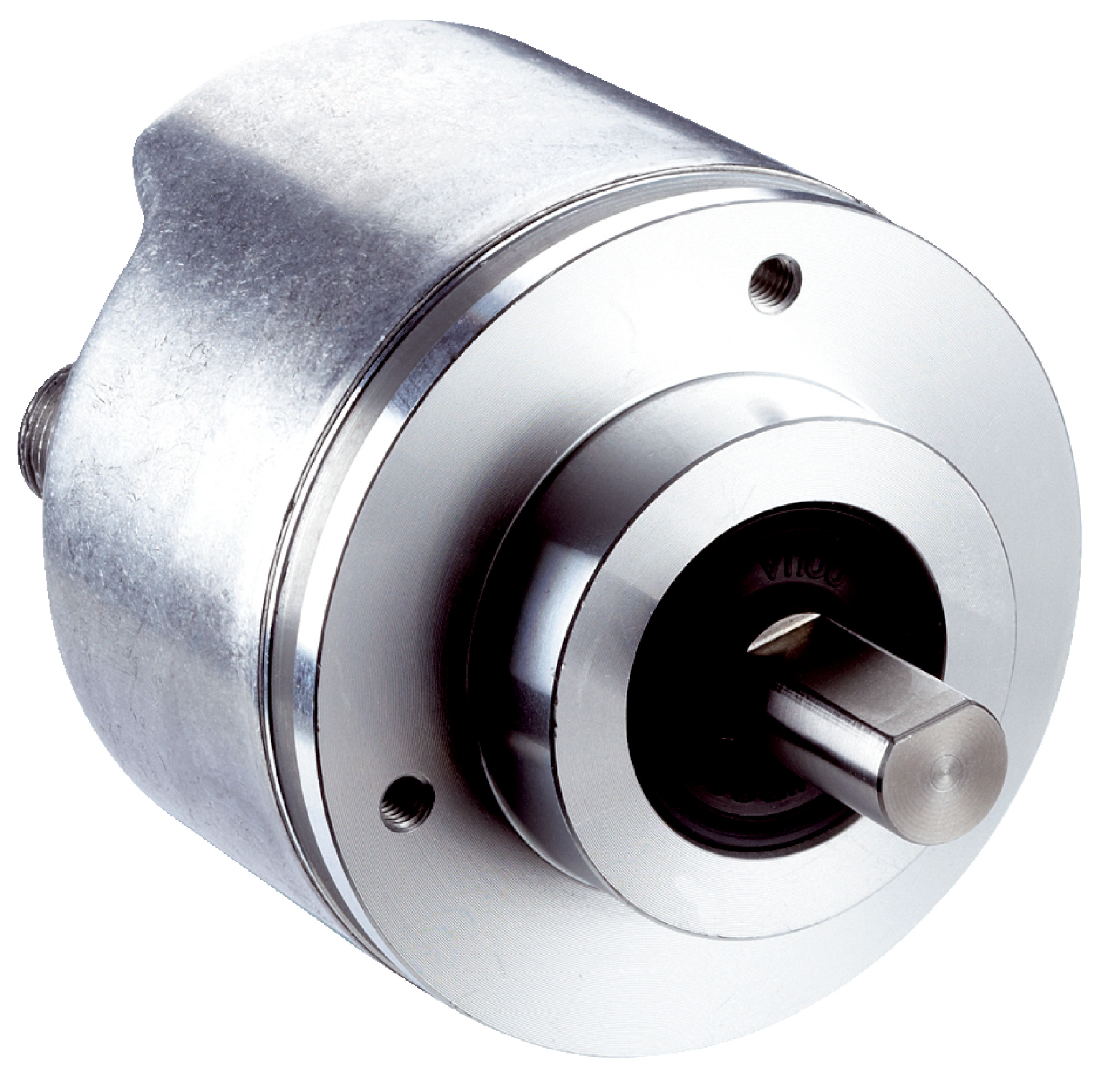

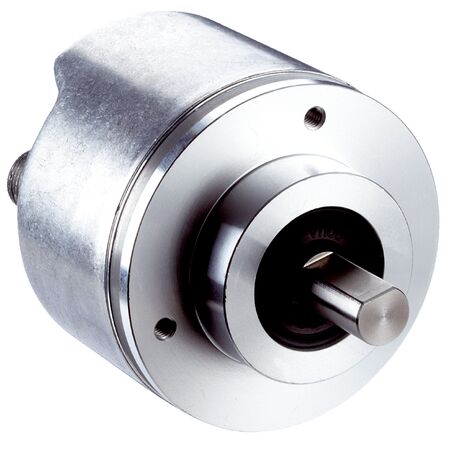

Absolute Rotary Encoder A3M60B-S4PB013x13 | 8192 Steps/Rev | PROFIBUS DP Interface | IP65/IP67 Rated | by SICK
The A3M60B-S4PB013x13 absolute rotary encoder delivers high precision with 8,192 steps per revolution and a robust PROFIBUS DP communication interface. Designed for industrial automation, robotics, and motion control, it features a solid stainless steel shaft and aluminum housing, ensuring durability in harsh environments. With low power consumption and high operating speeds, this encoder is perfect for applications requiring reliable position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder A3M60B-S4PB013x13 | 8192 Steps/Rev | PROFIBUS DP Interface | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1038826
Alternatively Known As: Absolute rotary encoder, PROFIBUS encoder, industrial position sensor, SICK encoder A3M60B
Technical Specifications
- Mean time to dangerous failure (MTTFD): 60 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 8,192 revolutions (13 bit)
- Max resolution: 13 bit x 13 bit (8,192 x 8,192)
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP with DPV0
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 second
- Parameterising data: Number of steps per revolution, number of revolutions, PRESET, counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.8 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 80 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection for harsh environments
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹ and long bearing lifetime
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the PROFIBUS DP interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK A3M60B-S4PB013x13 absolute encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
