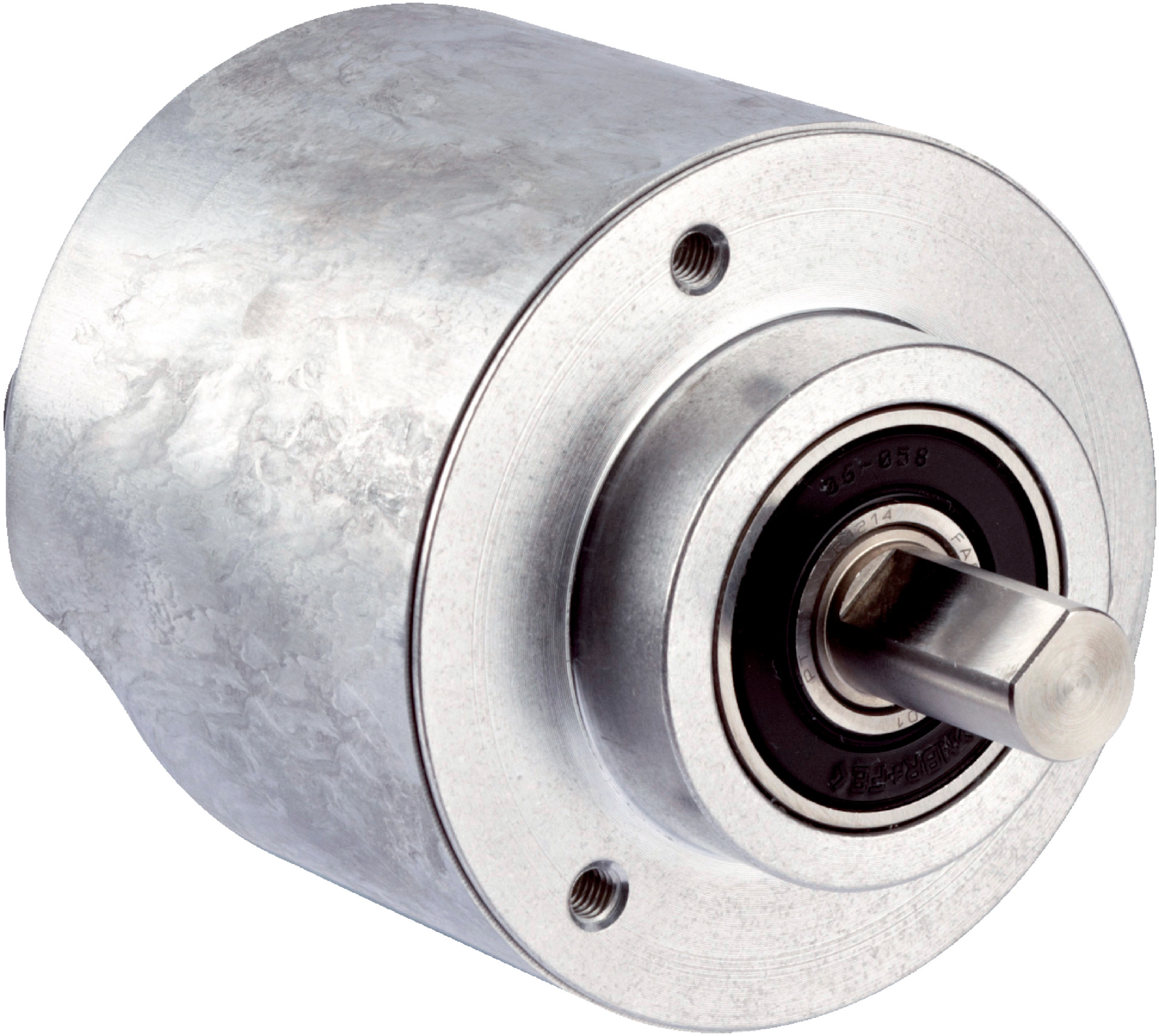

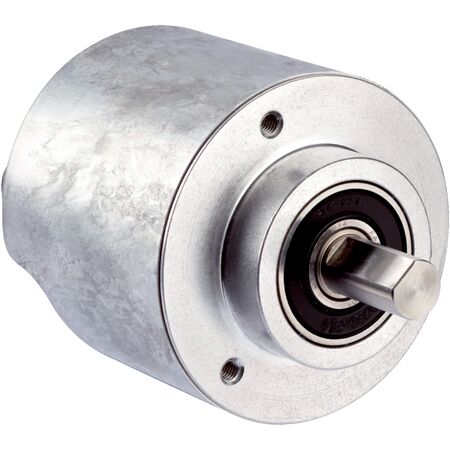

Absolute Rotary Encoder AFM60A-S4EB018x12 | 262,144 Steps/Rev | EtherCAT Communication | IP65/IP67 Rated | by SICK
The Absolute Rotary Encoder AFM60A-S4EB018x12 offers high-resolution feedback with 262,144 steps per revolution and EtherCAT communication for seamless integration in industrial automation. Designed for precision machinery and robotics, it features robust IP65/IP67 protection, ensuring reliable performance in harsh environments. With a wide operating temperature range from -40 °C to +85 °C, this encoder is built for longevity and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating speed: ≤ 9,000 min⁻¹
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Communication via EtherCAT with CoE (CAN over EtherCAT®) protocol
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Wide operating temperature range from -40 °C to +85 °C
- Reverse polarity protection and low power consumption (≤ 3 W)
- High reliability with MTTFD of 80 years and bearing lifetime of 3 billion revolutions
- Advanced diagnostics including temperature, speed, position monitoring, and voltage signal monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring high-resolution position feedback
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S4EB018x12 Absolute Encoder is available for immediate purchase, ideal for high-precision industrial automation and control applications.
