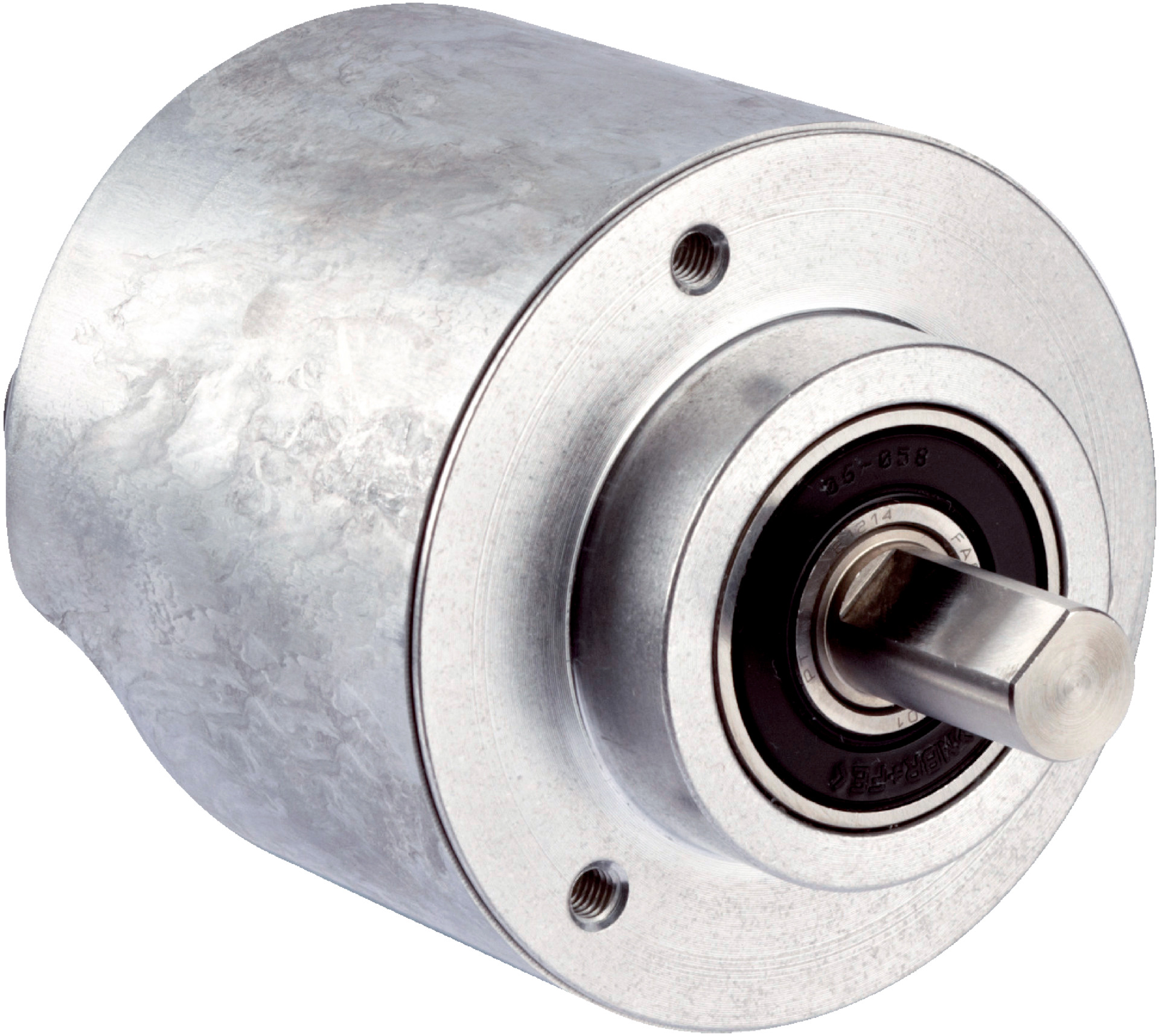

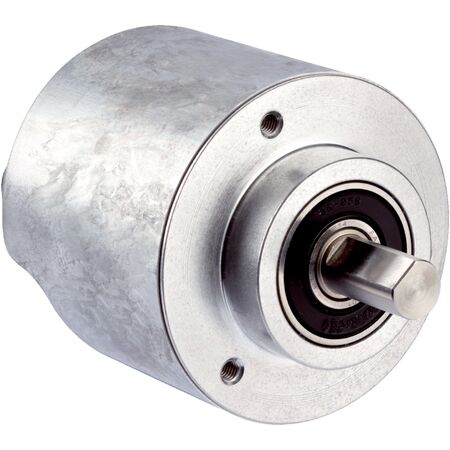

Absolute Rotary Encoder AFM60A-S7IB018x12 | 262,144 Steps/Rev | EtherNet/IP Interface | IP65/IP67 Rated | by SICK
The AFM60A-S7IB018x12 absolute rotary encoder delivers exceptional precision with 262,144 steps per revolution and EtherNet/IP communication for seamless integration. Designed for industrial automation, it features a robust mechanical design and an IP65/IP67 rated enclosure, making it ideal for harsh environments. Perfect for applications in robotics, machine tools, and conveyor systems, this encoder ensures reliable feedback for safety-critical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: EtherNet/IP, V4.1 class3 encoder profile
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Connection type: Male M12 4-pin axial connector
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Solid shaft, face mount flange, shaft diameter 3/8 inch
- Operating speed: ≤ 9,000 min⁻¹
- Operating temperature range: -40 °C to +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- EtherNet/IP communication interface with 10/100 Mbit/s data rate
- IP65/IP67 rated enclosure for harsh environments
- Reverse polarity protection and low power consumption (≤ 3 W)
- Extensive diagnostics data available including temperature, speed, and operating hours
- Long bearing lifetime of 3 billion revolutions
- Supports Device Level Ring (DLR) for network redundancy
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherNet/IP devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary feedback
- Machine tools and manufacturing equipment
- Conveyor systems and material handling
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S7IB018x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
