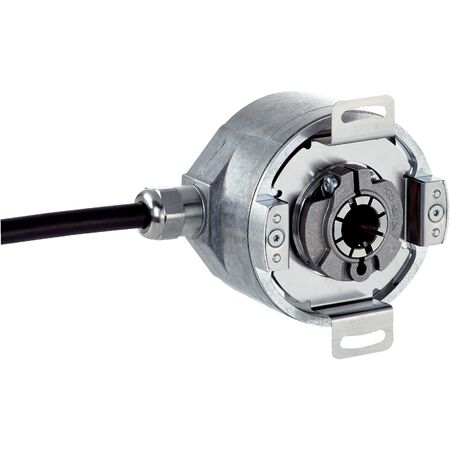

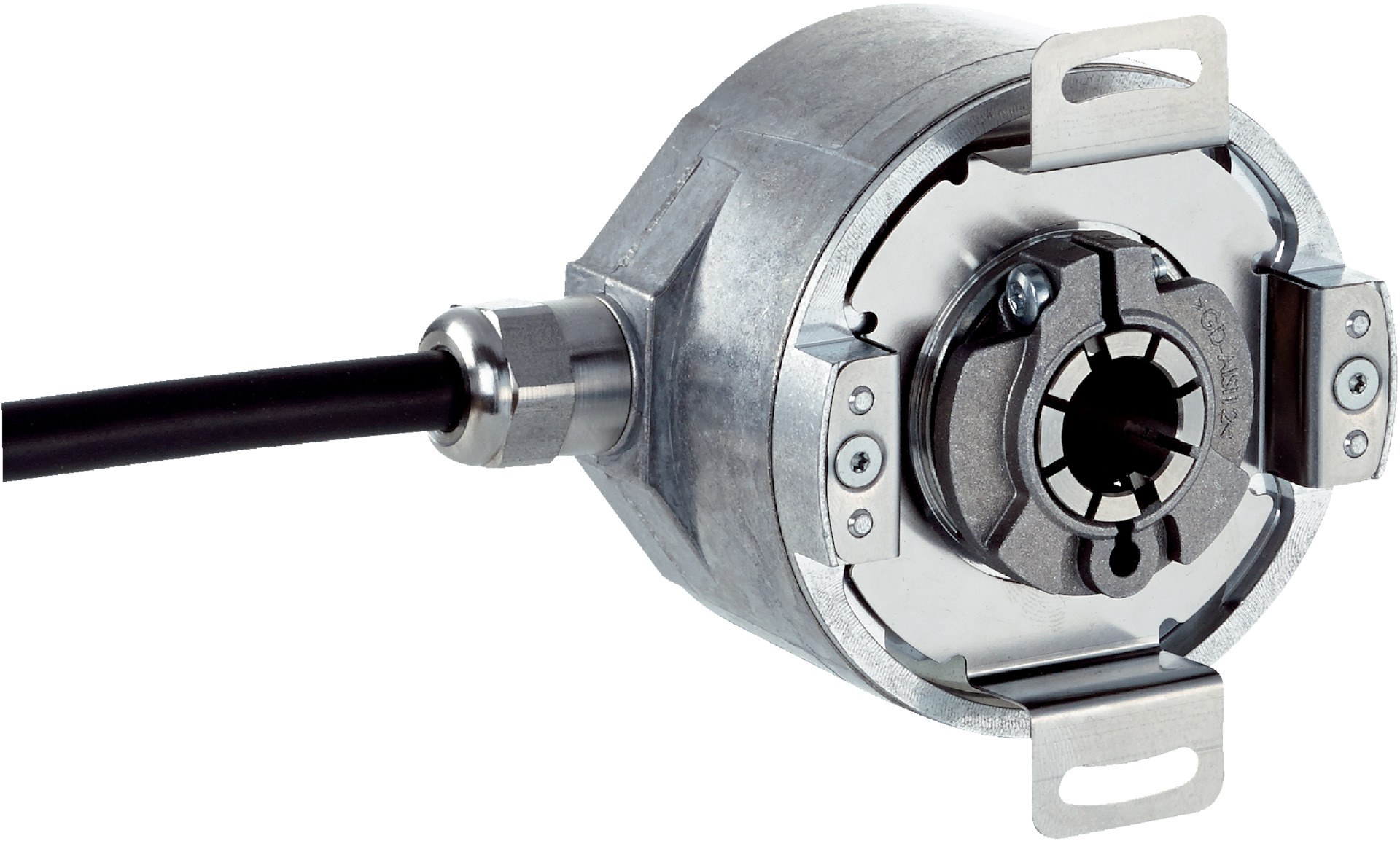

Absolute Rotary Encoder AFM60B-BEKK008192 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Rotary Encoder AFM60B-BEKK008192 offers high resolution with 8,192 steps per revolution and robust mechanical design, making it ideal for industrial automation and control systems. With an impressive IP65/IP67 rating, it withstands harsh environments while providing fast initialization and position forming times, ensuring precise motion control for robotics and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 8,192 steps/rev x 4,096 revolutions (13 bit x 12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos, Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Mechanical design: Blind hollow shaft, 12 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Low start-up and operating torque for efficient operation
- Fast initialization time of 50 ms and position forming time under 1 µs
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Gray code and adjustable parameters
- High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK AFM60B-BEKK008192 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
