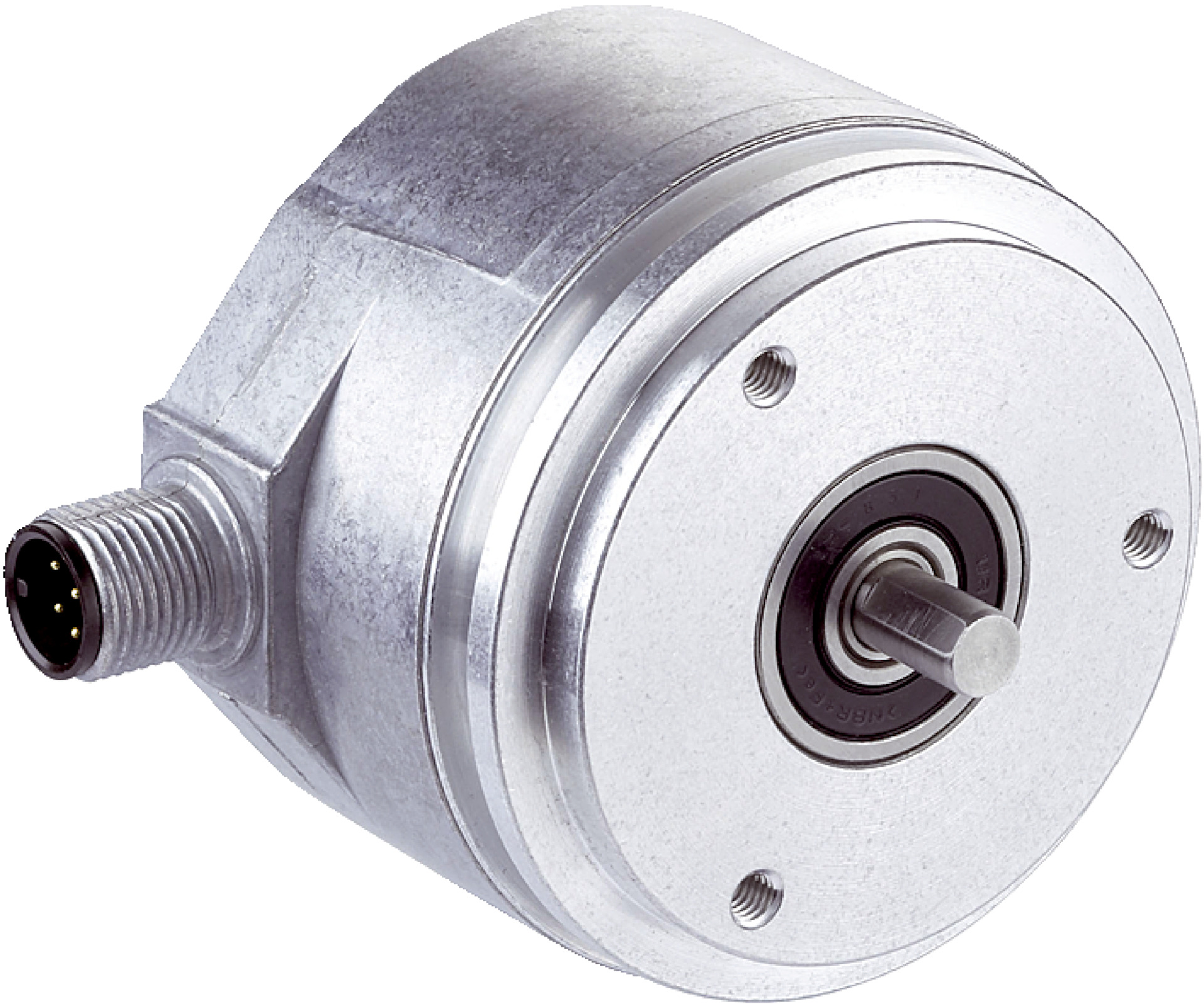

Absolute Rotary Encoder AFS60E-S1AC004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Rotary Encoder AFS60E-S1AC004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features a stainless steel shaft and a solid mechanical design, ensuring reliability in harsh environments. With low power consumption and fast initialization, this encoder is perfect for robotics and safety-related motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder AFS60E-S1AC004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037626
Alternatively Known As: Absolute rotary encoder, SSI encoder, industrial position sensor, SICK encoder AFS60E
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Error limits G: 0.2°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust mechanical design with solid shaft and servo flange
- Stainless steel shaft with flat for secure mounting
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Low power consumption ≤ 0.7 W
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms
- Communication via SSI interface with Gray code
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60E-S1AC004096 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related motion control applications.
