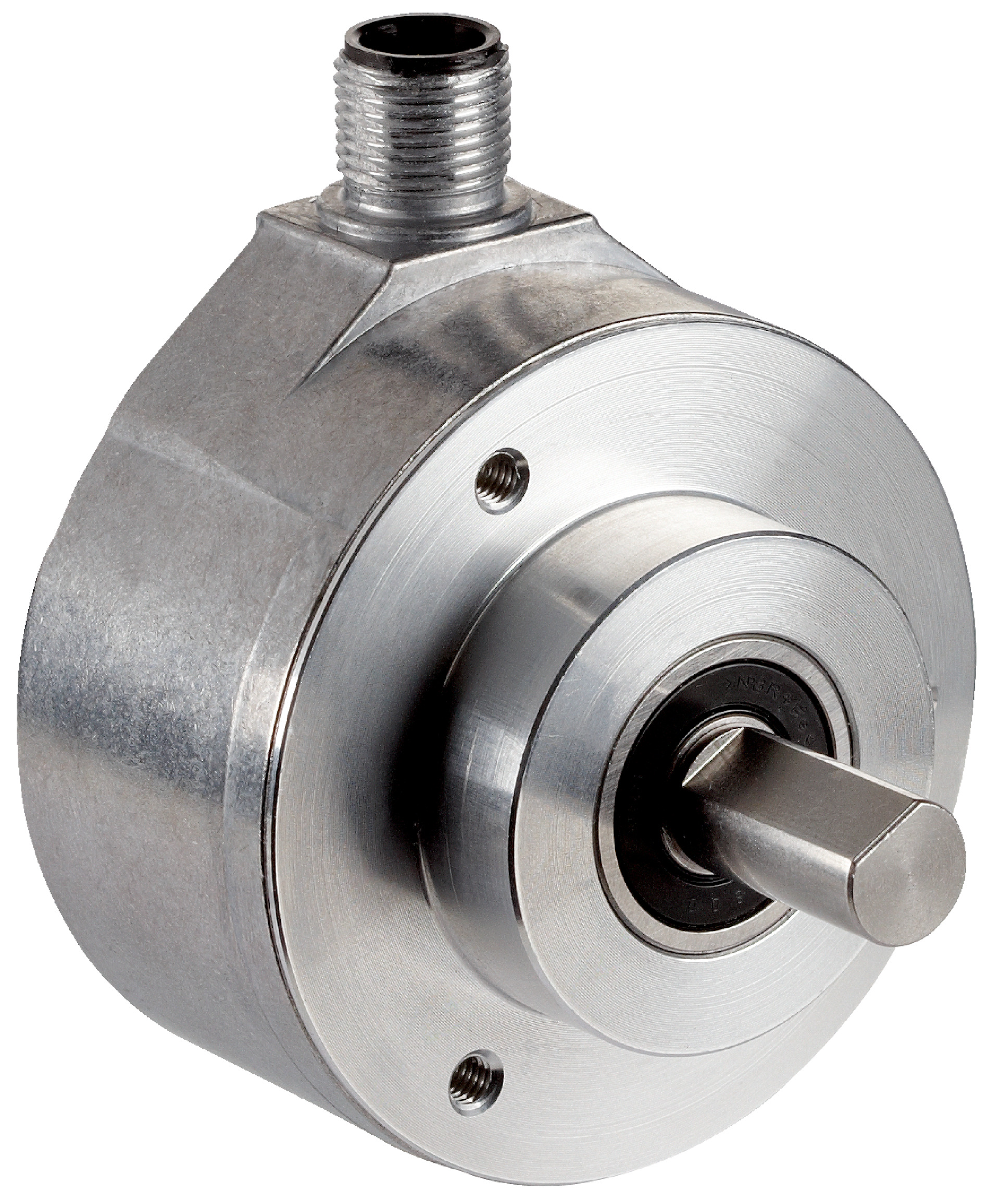

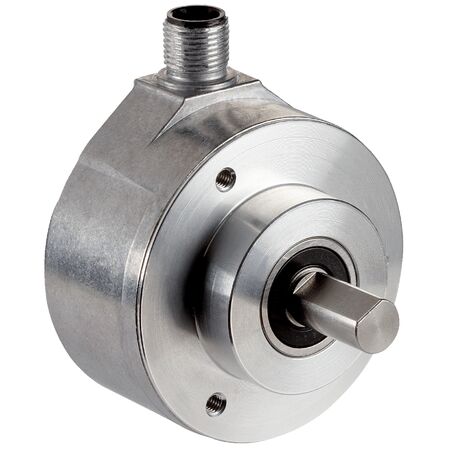

Absolute Rotary Encoder AFS60E-S4AC004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
The AFS60E-S4AC004096 Absolute Rotary Encoder delivers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. Its robust design features a stainless steel shaft and IP65/IP67 ratings, ensuring reliable performance in harsh environments. With low power consumption and fast initialization, this encoder is perfect for applications requiring accurate position measurement and motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder AFS60E-S4AC004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037631
Alternatively Known As: Absolute rotary encoder, SSI encoder, incremental encoder alternative, industrial position sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Error limits G: 0.2°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure coupling
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Low power consumption ≤ 0.7 W without load
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms
- Communication via SSI interface with Gray code
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60E-S4AC004096 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position feedback applications.
